Prosonic Flow 92 Brief operating instructions
Endress+Hauser 3
!
Note!
Always start trouble-shooting with the checklist on Page 49, if faults occur after startup.

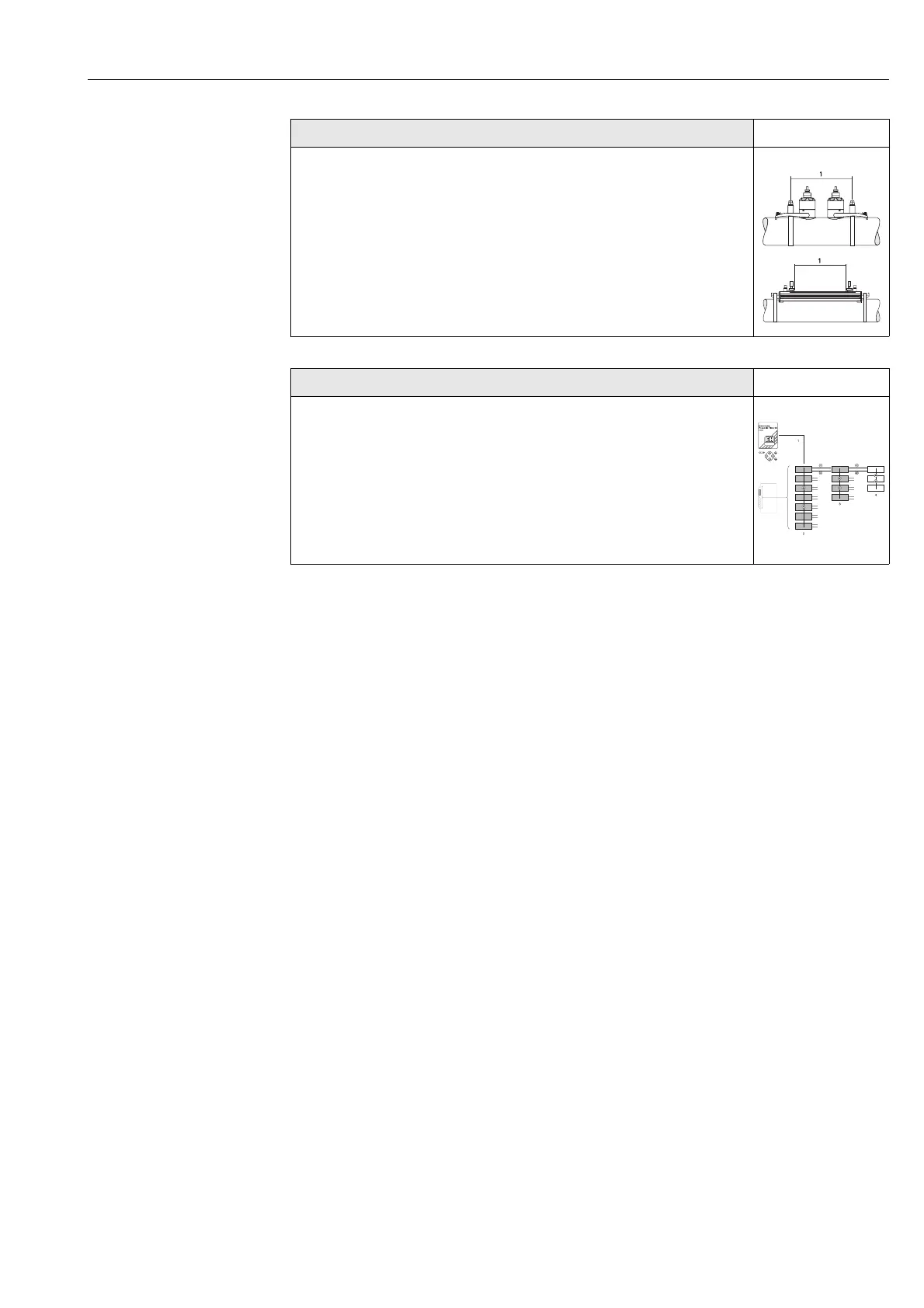

“SENSOR INSTALLATION” with the Site Setup Page 67
Use the “Site Setup” to determine the data required for sensor installation such
as sensor distance (1), wire length, pipe materials, sound velocity in fluids, etc.
– With the Prosonic Flow W and P sensors, you receive the sensor distance as
distance data and in the form of a letter for sensor 1 and as a number for
sensor 2. You can use the mounting rail to locate the sensors easily.
– With Prosonic Flow U, you receive the sensor distance as distance data.
Installation of the sensor/transmitter connecting cable
→ Page 25
▼
“Commissioning” with SITE SETUP menu Page 42
You can commission your measuring device quickly and easily using the special
“Site Setup” menu. It allows you to use the local display to configure important
basic functions, such as measured variables, units of measure, type of signal,
etc.
Complex measurement tasks require the configuration of additional functions
which you can individually select, set and adapt to your process conditions
using the function matrix.
All functions are described in detail, as is the function matrix itself, in the
“Description of device functions” appendix, which is a part of these Operating
Instructions.
