Prosonic Flow 92 2 Identification
Endress+Hauser 9
2 Identification
2.1 Device designation
The “Prosonic Flow 92” flow measuring system consists of the following components:
• Prosonic Flow 92 transmitter
• Prosonic Flow W, P and Prosonic Flow U sensors
2.1.1 Nameplate of the transmitter

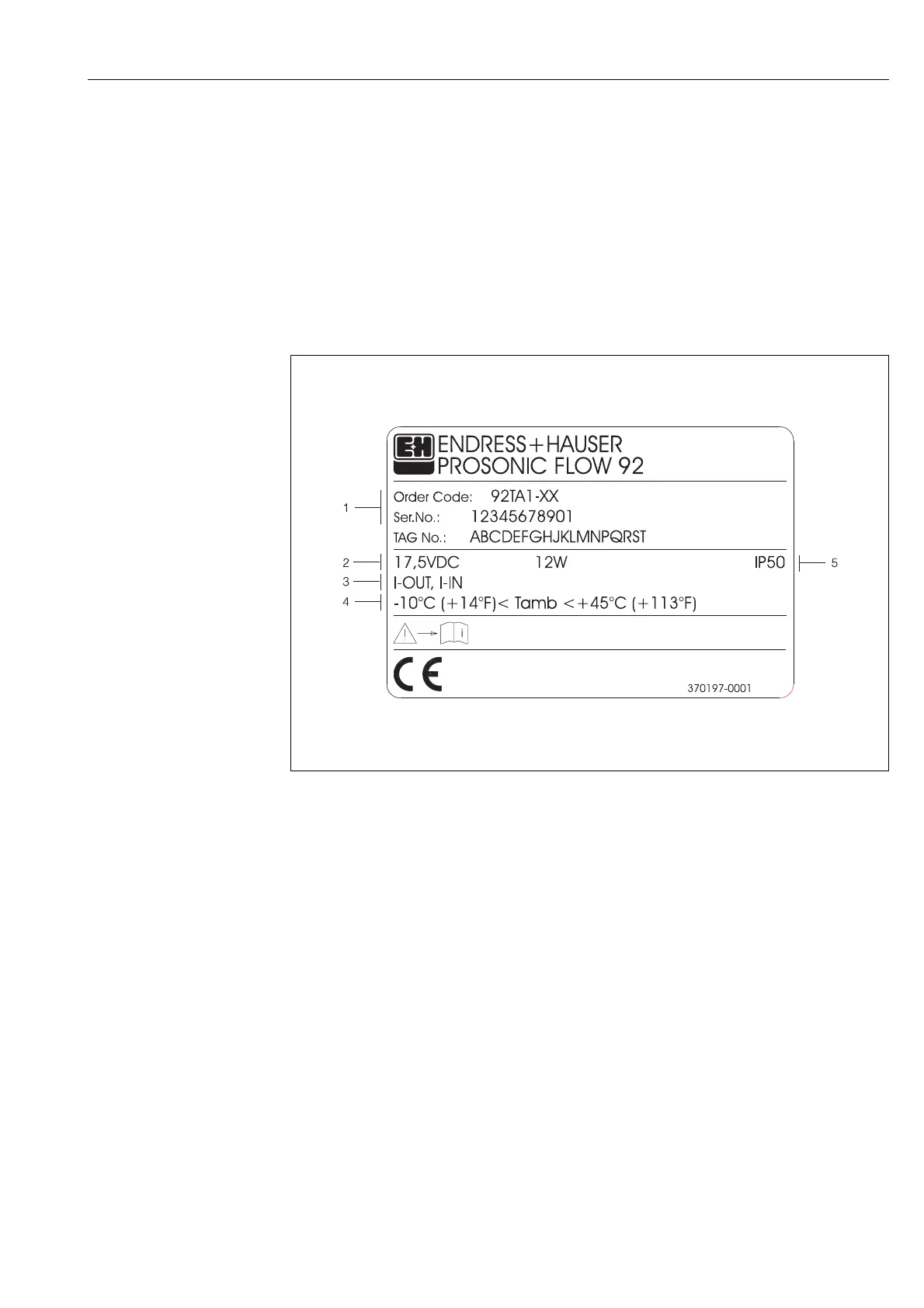

Fig. 1: Nameplate specifications for the “Prosonic Flow 92” transmitter (example)
1 Order code/serial number: see the specifications on the order confirmation for the meanings of the
individual letters and digits.
2 Power supply of the transmitter: 17.5 V DC
(Power supply / frequency of the power adapter: 100...240 V AC / 47...63 Hz )
Power consumption: 12 VA / W
3 Available inputs and outputs:
I-OUT: with current output
I-IN: with current input
4 Ambient temperature range
5 Degree of protection
F06-92xxxxxx-18-06-xx-xx-000
