SS2100i-1 and SS2100i-2 Analyzer
3–4 4900002288 rev. B 1-13-21
1. Open the heated enclosure door. Take care not to disturb anything
inside.
2. Open the power terminal box inside the heated enclosure, as shown
in Figure 3–1 below.
3. Run conduit from the power distribution panel to the conduit hub on
the lower right side of the heated enclosure labeled for power input.
Conduit seals should be used where appropriate in compliance
with local regulations.
Because the breaker in the power distribution panel or switch will
be the primary means of disconnecting the power from the
analyzer, the power distribution panel or switch should be located
in close proximity to the equipment and within easy reach of the
operator.
An approved switch or circuit breaker rated for 15 amps should be
used and clearly marked as the disconnecting device for the
analyzer.

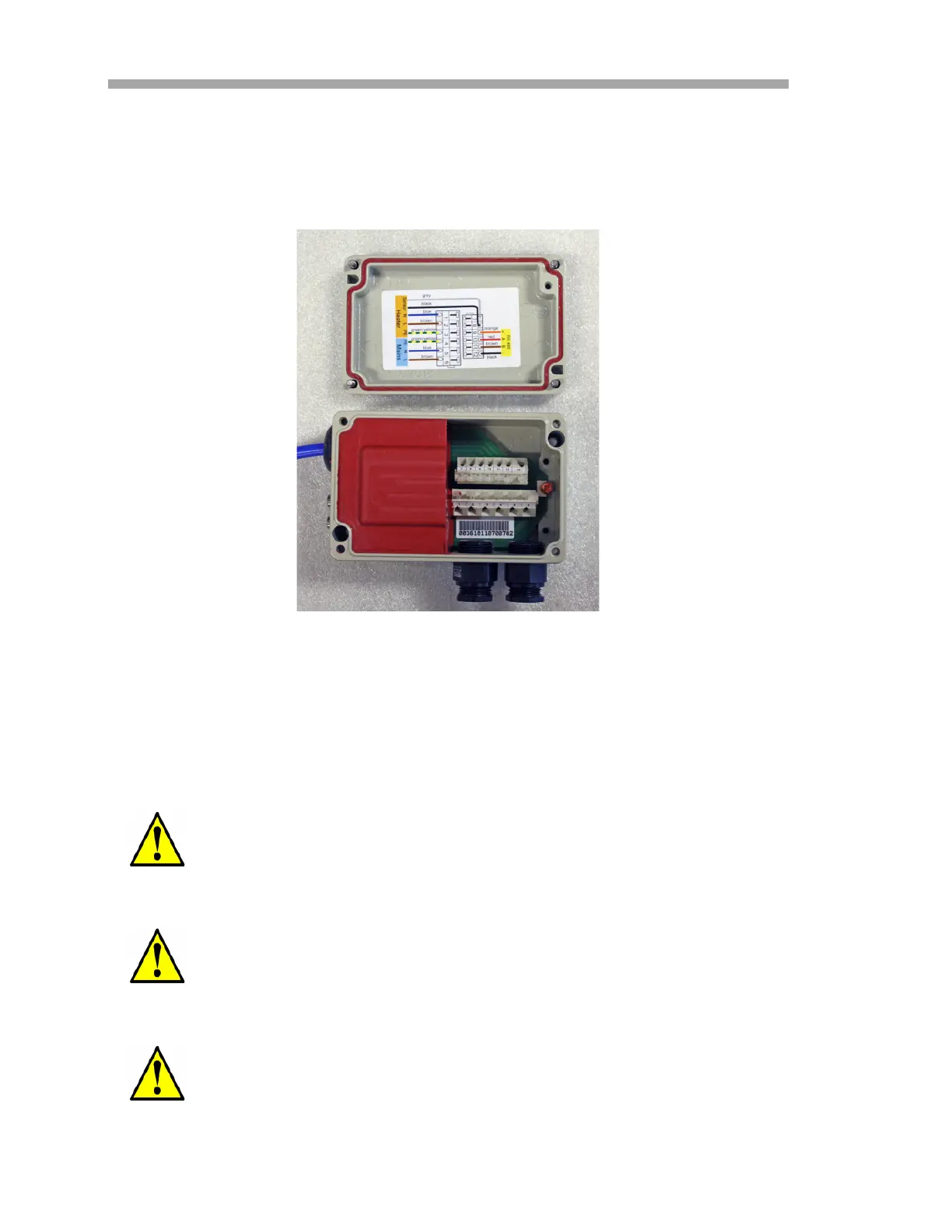

Figure 3–1 ATEX/IECEx
temperature controller connections
