S o n o m a U s e r M a n u a l
58
C H A P T E R S E V E N
59
S o n o m a U s e r M a n u a l
H T T P S I N T E R F A C E
Display Intensity This setting can only be changed via the front-panel keypad. Display intensity
settings range from 12% to 100%.
Home: User Manual
This link provides access to the Sonoma User Manual that is resident in the FLASH memory. The
most recent version of the User Manual is on the EndRun website at:
http://www.endruntechnologies.com/pdf/USM3026-0000-000.pdf
Home: Logout
Clicking on this link will immediately log you out of the Sonoma HTTPS Interface.
Plots Page
Information available on this page are performance statistics related to NTP. Links on the right give
access to the daily plot les - going back up to 10 years. Links on the left give access to performance

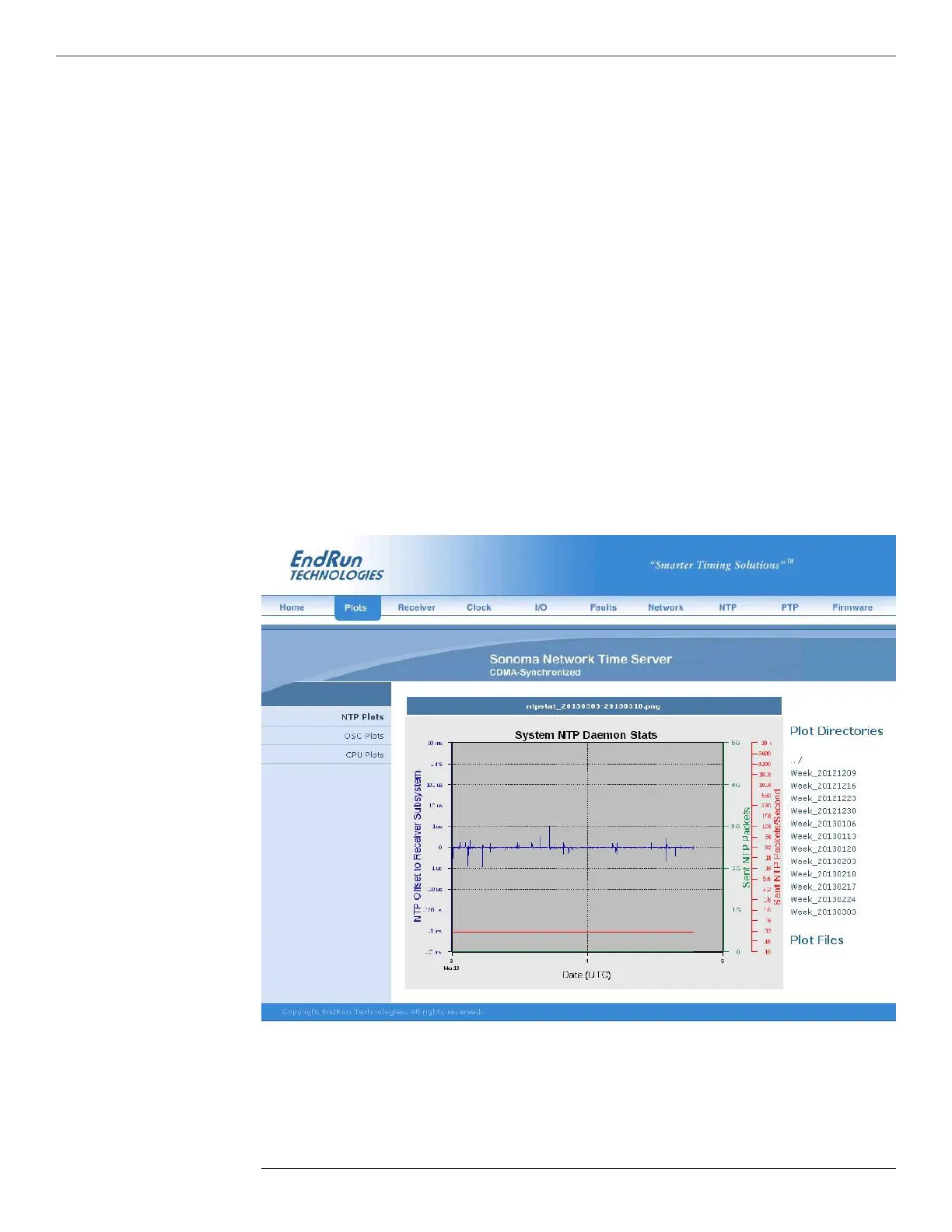

statistics for CPU and Oscillator. A sample data plot is shown below:
There are three types of data plots available for viewing: CPU, NTP and Oscillator. The large data
plot shown on any of the plot pages is the last data plot viewed. This could be from any one of the
three data types (CPU, NTP, Oscillator).
