TheWi-FiProtectedSetup(WPS)featurecomplieswiththe
Wi-Fi Alliance WPS standard and makes it easier to quickly
addclientdevicestoanestablished,security-enabledWi-Fi
network.
WPSreducestheuserstepsrequiredtocongureanetwork
and supports two methods that are familiar to most
consumerstocongureanetworkandenablesecurity.
Note: Only applicable in Access Point and WDS AP
mode.

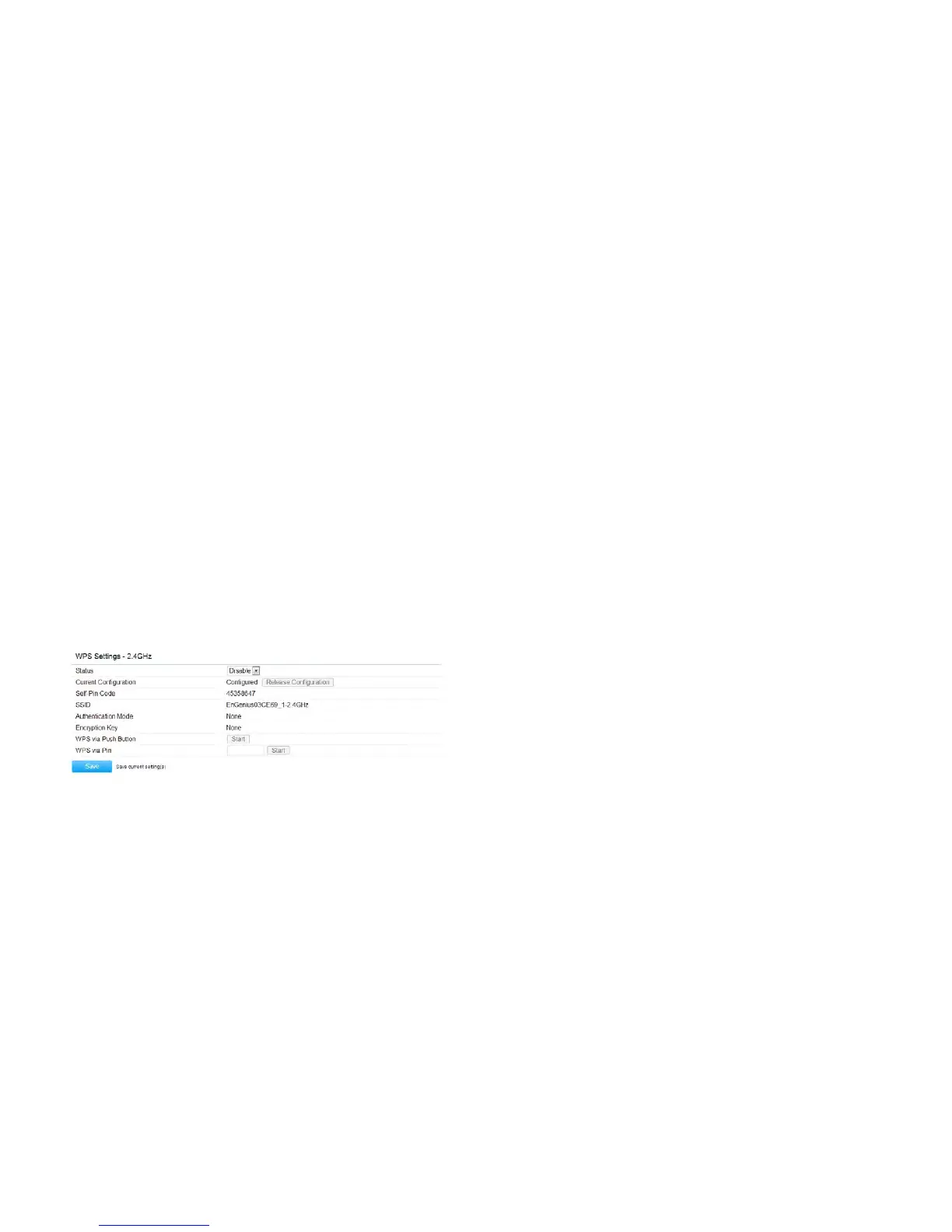

WPS (Wi-Fi Protected Setup)
WPS: Select to enable or disable the WPS feature.
WPS Current Status: Shows whether the WPS feature is
Congured or Uncongured. When it is congured, the
WPS has been used to authorize a connection between the
device and wireless clients.
Self Pin Code: The PIN code for this device.
SSID: The SSID (wireless network name) used when
connecting using WPS.
Authentication Mode: Displays the encryption method
used by the WPS process.
Passphrase Key: This is the passphrase key that is randomly
generated during the WPS process. It is required if wireless
clients that do not support WPS attempt to connect to the
wireless network.
WPS via Push Button: Click the Start button to initialize
the WPS feature using the Push Button method.
WPS via PIN: Enter the PIN code for the wireless device
and click this button to initialize WPS feature using the PIN
method.
Save:ClickSavetoconrmthechanges.
WPS (Wi-Fi Protected Setup)
