Section 7 — Effect Parameters TS-12 Musician’s Manual
12
PAN Range: -99 to +99
Determines the location of the delays in the stereo spectrum. A value of -99 is panned far left,
and +99 is far right.
DELAY-2 TIME DELAY-3 TIME DELAY-4 TIME
LEVEL LEVEL LEVEL
REGEN REGEN REGEN
PAN PAN PAN
Each of the four discrete delays has identical parameters and ranges as described above.
REGEN DAMPING Range: 00 to 99
Controls the cutoff of a low pass filter on the feedback signal, which adjusts the amount of
damping to the feedback signals. The higher the number, the more the signals are dampened.
43 EQ- -STEREO DELAYLFO
EQ- -STEREO DELAYLFO features a parametric EQ and a stereo digital delay that provides LFO
modulation of a wide range of delays. This algorithm sounds great with an electric piano, but try
it with any source!

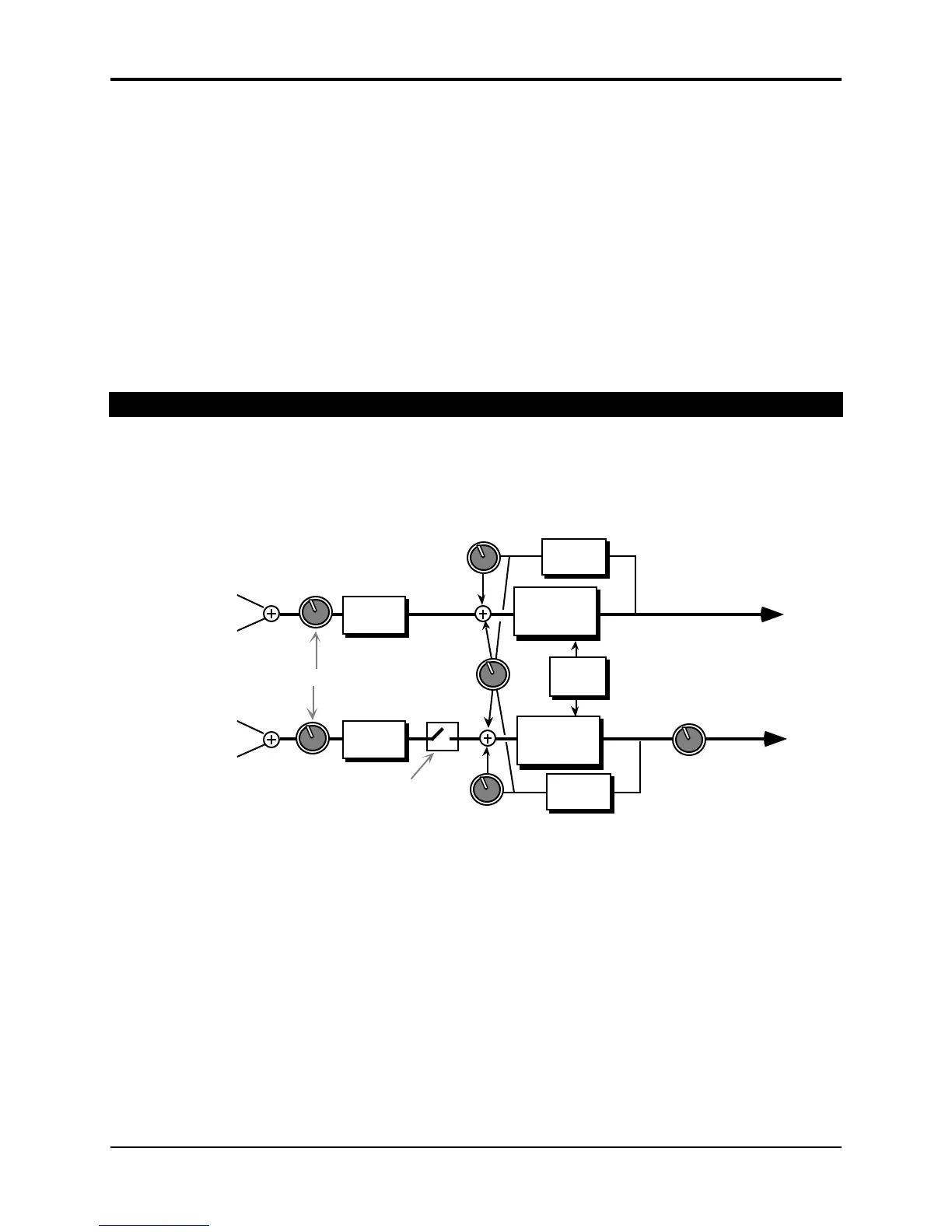

EQ- -STEREO DELAYLFO Signal Routing
FX-1 Left
FX-2 Left
FX-1 Right
FX-2 Right
EQ
R
Right
Delay
EQ
L
Main
Outputs
Left
Delay
Cross
Regen
EQ Trim
LFO
Delay
Input R
(On/Off)
Delay - Regen
Delay - Regen
Damping
(LPF)
Damping
(LPF)
Output Level R
The EFFECT MIX FX-1 and FX-2 DELAYLFO parameters can be routed into the effect with
different Dry/Wet mixes.
LFO RATE Range: 00 to 99
Controls the rate of pitch modulation which is the LFO. To achieve a chorusing effect, this rate
must be very slow.
WIDTH Range: 00 to 99
Controls the excursion of pitch modulation. Since the rate is usually very slow, the width is
usually large.
L/R LFO Range: OUT-OF-PHASE or IN-PHASE
When this parameter is IN-PHASE, the left and right choruses will modulate their detunes
together. When set to OUT-OF-PHASE, the detune on the left channel will go up while the
detune on the right will go down.
