Mounting the 8 Port Switches
Enterasys 800-Series Hardware Installation Guide 2-7

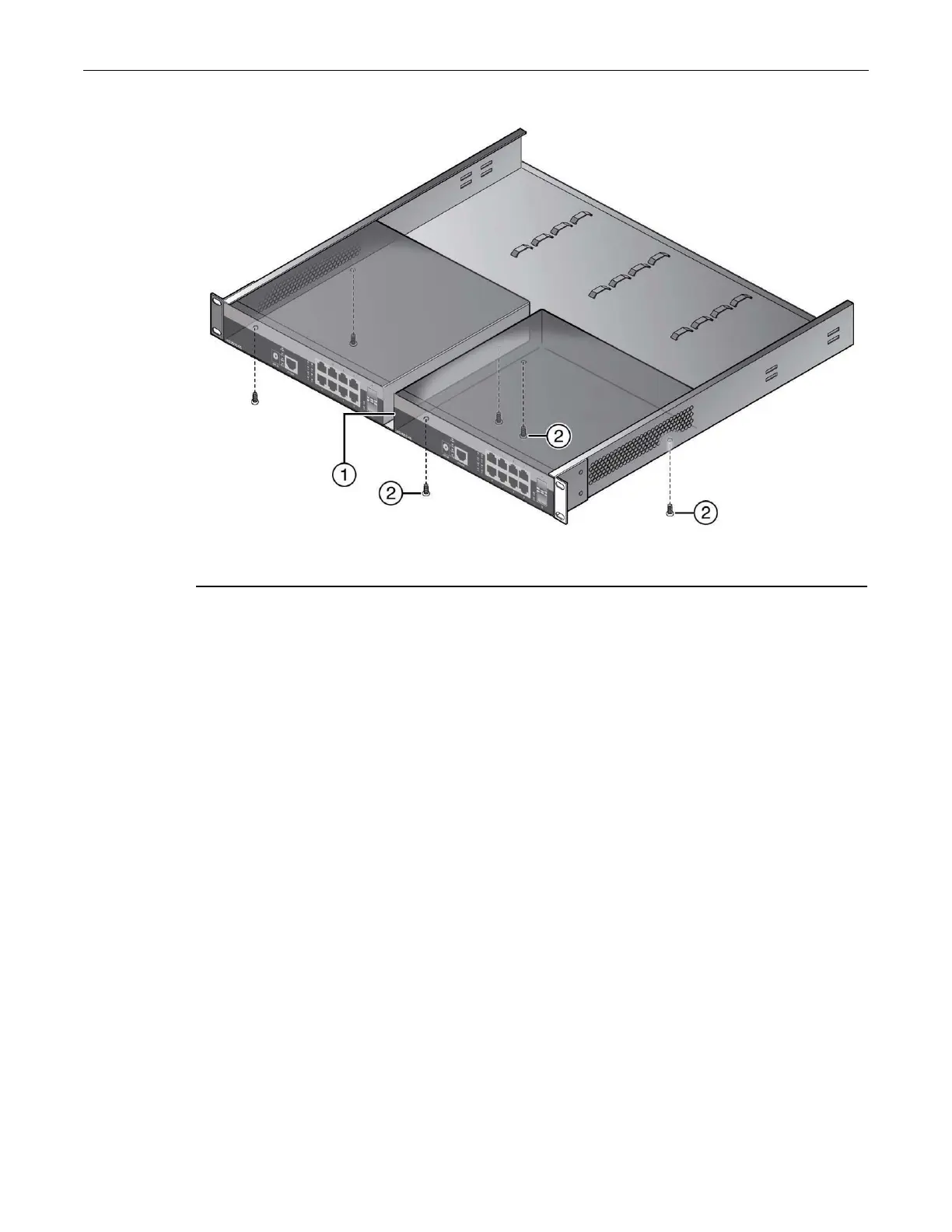

Figure 2-5 Fastening Switch(es) to the Rack Mounting Tray (two 08G20G2-08Ps shown)
3. Using the screws provided (three for each switch), fasten each switch to the rack mounting
tray as shown in Figure 2-5.
4. If optional redundant power supplies are not installed, plug the AC power cord into the back
of the switch and then connect the cord to an AC outlet.
Installing Optional Redundant Power Supplies in a Rack Mount Tray
The optional rack mount kit (D2-RMT) provides mounting positions for up to two optional
redundant power supplies (RPSs).
Using one of the hook & loop straps provided, secure a power supply to one of the edge mounting
positions on the rack mount kit as follows:
1. Thread the strap through the mounting tray as shown in Figure 2-6 and around one side of the
power supply in the following order:
a. Out through the first mounting hole closest to the top of the mounting tray.
b. In through the mounting hole just below the first mounting hole.
c. Under the power supply.
d. Through the appropriate bridge anchor.
e. Wrap the ends of the strap over the top of the power supply and fasten securely.
1 Front edge of the Switch 2 Fastening screws (three per switch)
