Connecting to the Network

2-38 Installation

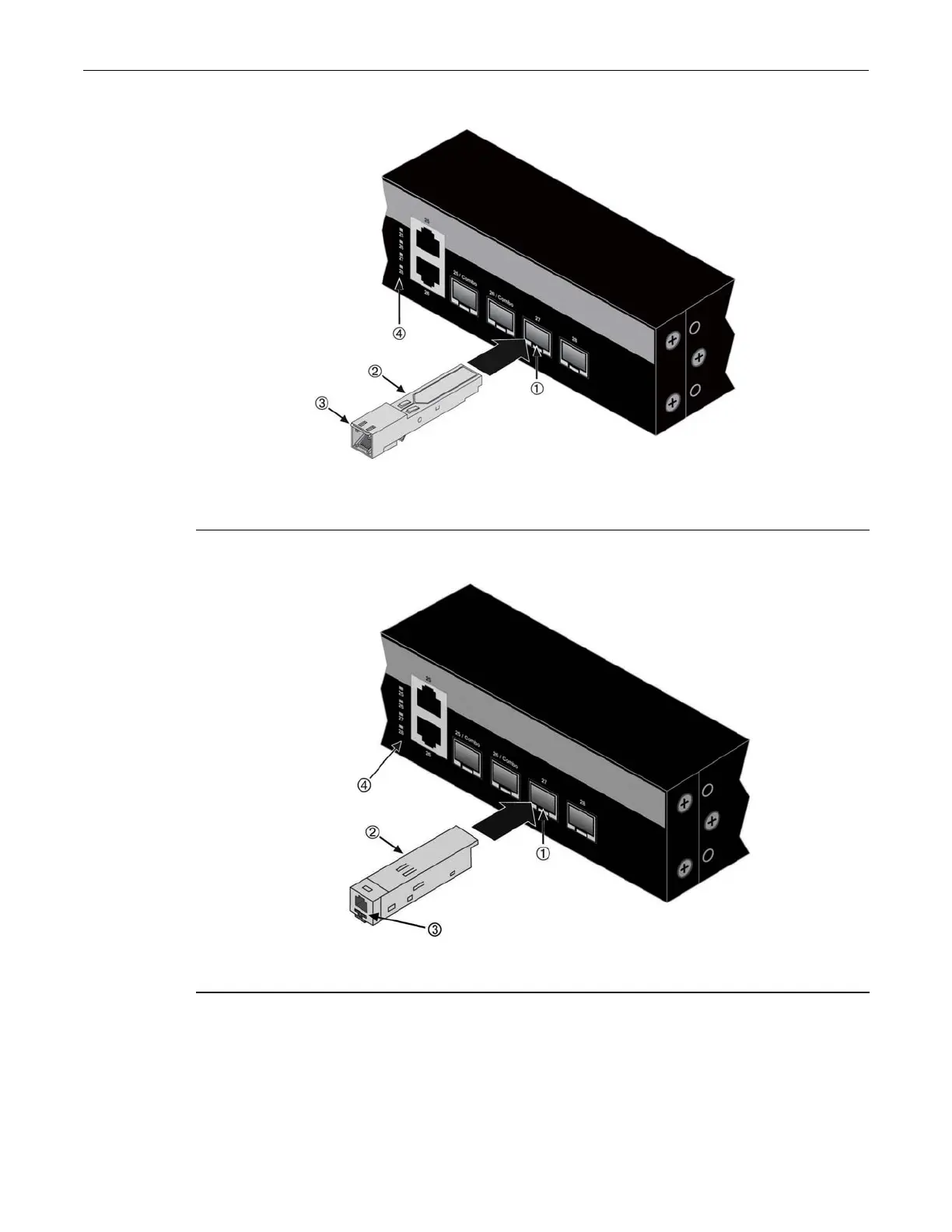

Figure 2-32 Installing an SFP Transceiver with RJ45 Connector

Figure 2-33 Installing an SFP Transceiver with MT-RJ Connector

1 SFP slot 3 Release tab

2 SFP transceiver 4 Link/Activity LED

1 SFP slot 3 Release tab

2 SFP transceiver 4 Link/Activity LED
