Mounting the 8 Port Switches
Enterasys 800-Series Hardware Installation Guide 2-11

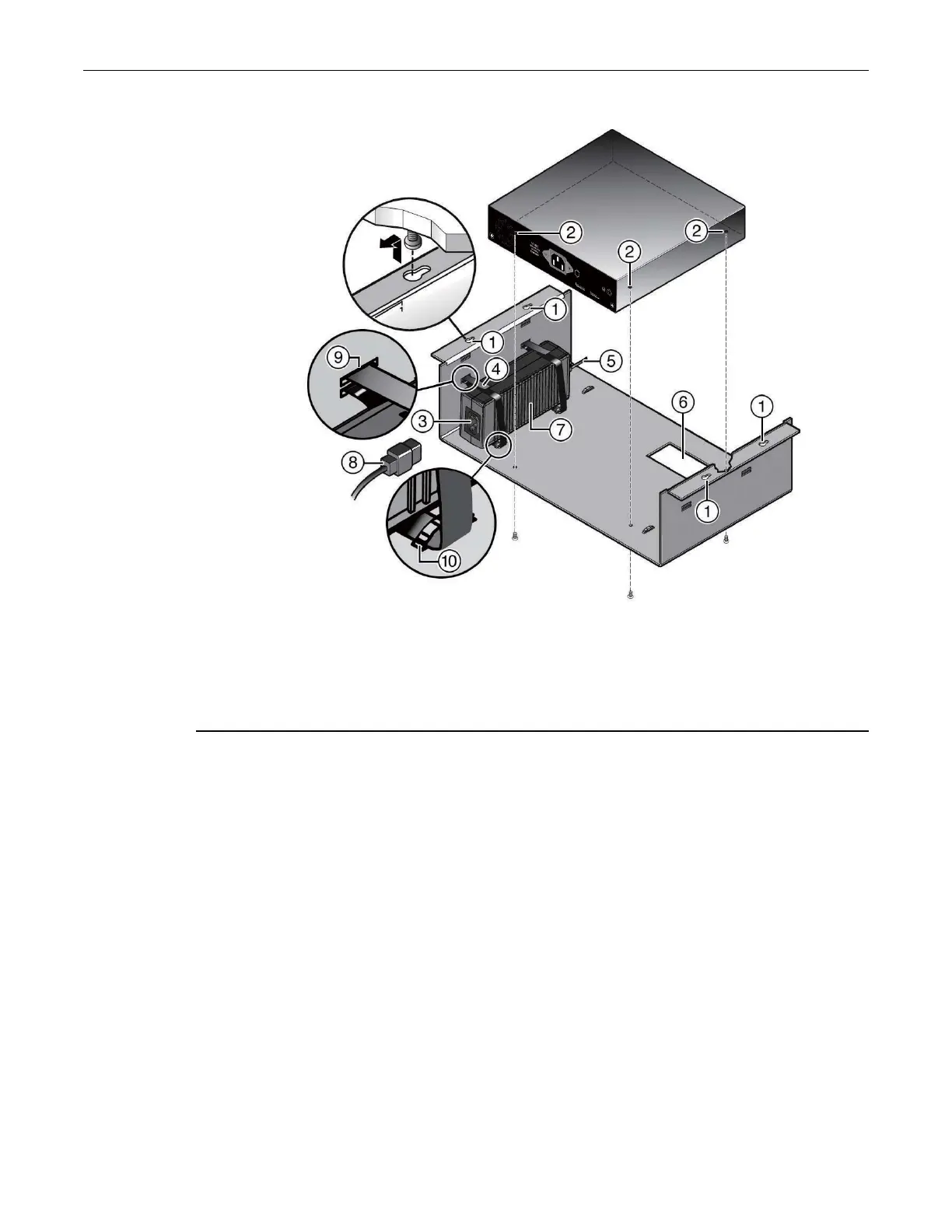

Figure 2-9 Installing the Switch in the Table Mount Kit
To install the switch in the table mount kit and then install it under a table, refer to Figure 2-9 and
proceed as follows:
1. Ensure that you have appropriate screws for securing the assembled table mount kit to your
table location. These four screws are required and are not provided in the table mount kit.
2. Attach network cables. Refer to “Connecting to the Network” on page 2-36 for more
information.
3. Mount the switch in the center of the table mounting tray, aligning the three screw holes on
the bottom of the switch with the three holes in the table mounting tray.
4. Using the three screws provided, secure the switch to the table mounting tray.
5. If you are not installing an optional RPS, plug the AC cord into the switch, then connect the
cord to a dedicated, grounded AC outlet.
6. If you are installing an optional redundant power supply, using one of the Velcro straps
provided, complete the following steps to secure one end of the power supply in the position
shown:
a. Thread the strap through the mounting tray and around the optional RPS in the following
order:
1 Table mounting screw holes (four) 6 Serial number access window
2 Switch mounting screw holes (three) 7 Optional RPS
3 AC power receptacle 8 AC power cord
4 Power supply Velcro strap 9 Velcro strap through power supply mounting
holes
5 DC power cord 10 Velcro strap through mounting clamp
