Mounting the 8 Port Switches
Enterasys 800-Series Hardware Installation Guide 2-17
4. Plug the AC cord into the power supply’s AC receptacle.
5. Plug the AC power cord into a separate dedicated, grounded AC outlet. See “Connecting AC
Power” on page 2-21 for information about the initialization process.
Connecting Network Cabling and Attaching the Wire Relief Bracket
The wire relief bracket, which ships with the D2-LOCKBOX kit, is designed to hold network
cables securely in place and prevent tampering once cabling is connected to switch ports. To attach
the wire relief bracket to the lockbox tray:
1. Attach network cables as shown in Figure 2-13. Refer to “Connecting to the Network” on
page 2-36 for more information.

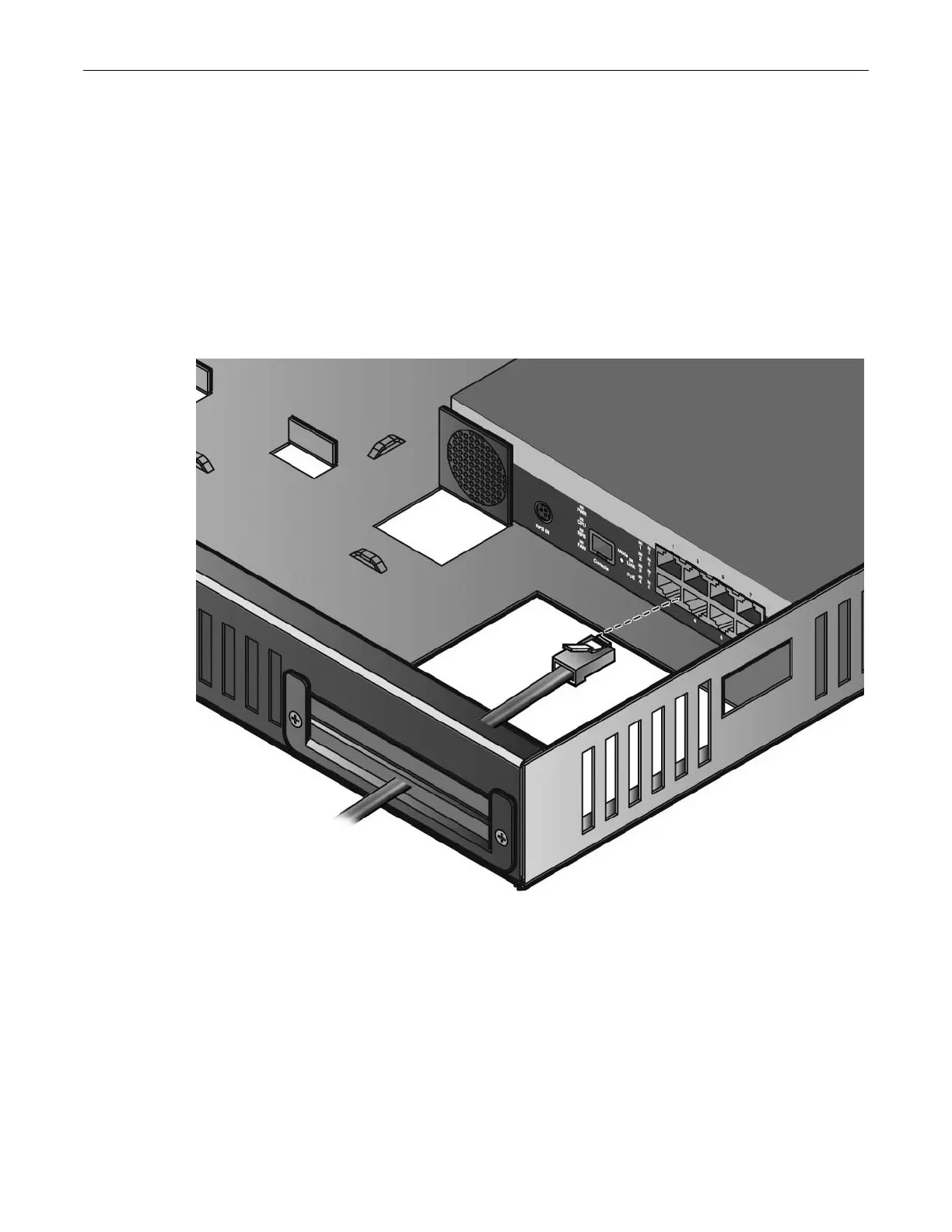

Figure 2-13 Attaching a Network Cable (UTP cable to RJ45 port shown)
2. Align the wire relief bracket with the flange and the two screw holes on the side of the lockbox
tray as shown in Figure 2-14 on page 2-18.
