Connecting to the Web User Interface for Local Management
Enterasys 800-Series Hardware Installation Guide
2-35

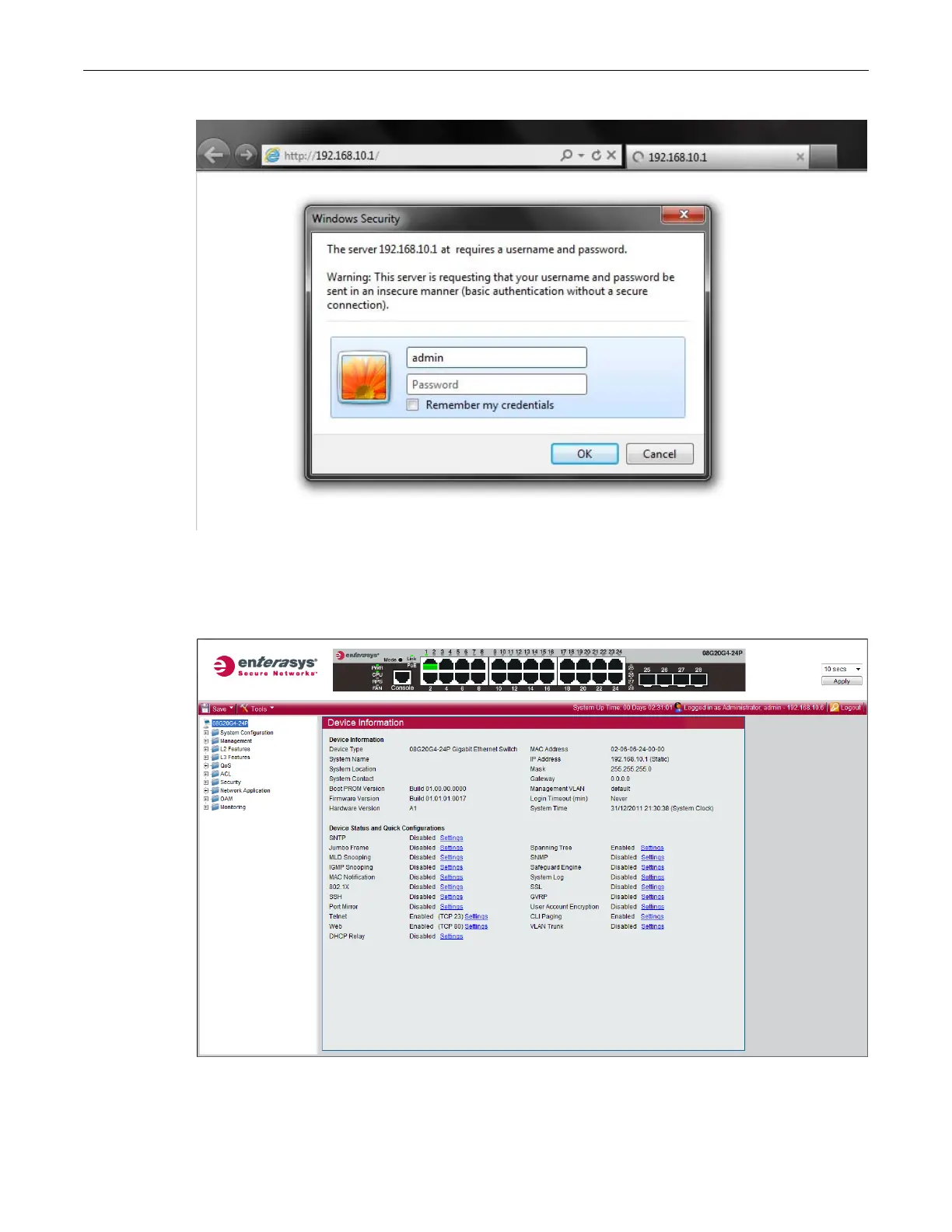

Figure 2-29
Web browser and Login page
4.
Enter the default user name and password in the spaces provided and press
ENTER
to access
the main page of the W
eb UI as shown in
Figure 2-30
.
Figure 2-30
Web User Interface Main Page (08G20G4-24 shown)
62
64
Table of Contents
Default Chapter
1
Hardware Installation Guide
1
Regulatory Compliance Information
4
Table of Contents
13
About this Guide
17
Who Should Use this Guide
17
How to Use this Guide
17
Related Documents
17
Conventions Used in this Guide
18
Getting Help
19
For Information about
21
Figure 1-1 08H20G4-24 Front Panel
23
Figure 1-2 08H20G4-24P Front Panel
23
Figure 1-3 08H20G4-48 Front Panel
23
Figure 1-4 08H20G4-48P Front Panel
23
Figure 1-5 08G20G2-08 Front Panel
23
Figure 1-6 08G20G2-08P Front Panel
23
Figure 1-7 08G20G4-24 Front Panel
24
Figure 1-8 08G20G4-24P Front Panel
24
Figure 1-9 08G20G4-48 Front Panel
24
Figure 1-10 08G20G4-48P Front Panel
24
Figure 1-11 08H20G4-24 Back Panel
24
Figure 1-12 08H20G4-24P Back Panel
25
Figure 1-13 08H20G4-48 Back Panel
25
Figure 1-14 08H20G4-48P Back Panel
25
Figure 1-15 08G20G2-08 Back Panel
25
Figure 1-16 08G20G2-08P Back Panel
25
Figure 1-17 08G20G4-24 Back Panel
25
Figure 1-18 08G20G4-24P Back Panel
25
Features
26
Redundant Power Supply Capability
26
Management
26
Figure 1-19 08G20G4-48 Back Panel
26
Figure 1-20 08G20G4-48P Back Panel
26
Fan Operation on the 800-Series
27
Standards Compatibility
27
Chapter 1: Introduction
21
Overview
21
Table 1-1 800-Series Switch Port Types
21
Chapter 2 : Installation
29
Considerations Prior to Installation
29
Required Tools
30
Unpacking the Switch
30
Installing the Switch on a Flat Surface
30
Installing the Rubber Feet
30
Guidelines for Flat Surface Installation
31
Mounting the 24 and 48 Port Switches
31
Installing the Switch into a Rack
31
Figure 2-2 Attaching the Rackmount Brackets
32
Guidelines for Rackmount Installation
32
Mounting the 8 Port Switches
33
Figure 2-4 Installing a Switch in the Rack Mount Kit (08G20G2-08P Shown)
34
Figure 2-5 Fastening Switch(Es) to the Rack Mounting Tray (Two 08G20G2-08Ps Shown)
35
Figure 2-6 Positioning of Hook & Loop Straps to Secure Power Supply
36
Figure 2-7 Securing an Optional Redundant Power Supply to the Rack Mount Tray (Edge of Tray Position Shown)
37
Installing the Switch under a Table
38
Figure 2-9 Installing the Switch in the Table Mount Kit
39
Installing the Switch on a Wall
40
Figure 2-10 Installing the Switch on a Wall
41
Installing the Switch in the Lockbox and Mounting on a Wall
42
Figure 2-11 Installing the Switch in the 08G20G2-08 or 08G20G2-08P Lockbox Tray
43
Figure 2-12 Installing Optional RPS into the Lockbox Tray
44
Figure 2-13 Attaching a Network Cable (UTP Cable to RJ45 Port Shown)
45
Figure 2-14 Attaching the Wire Relief Bracket
46
Mounting the Lockbox on the Wall
46
Figure 2-15 Mounting the Lockbox over an AC Power/Data Outlet
47
Figure 2-16 Attaching the 08G20G2-08 and 08G20G2-08P Lockbox Cover
48
Connecting AC Power
49
Installing and Connecting a Redundant Power System
49
08A-Rps-150P
49
Table 2-1 Contents of STK-RPS-150CH2 Carton
50
Table 2-2 Contents of STK-RPS-150CH8 Carton
50
Table 2-3 Contents of 08A-RPS-150P Carton
50
Figure 2-17 08A-RPS-150P Installation in an STK-RPS-150CH2 Shelf
51
Figure 2-18 08A-RPS-150P Installation in an STK-RPS-150CH8 Shelf
52
Figure 2-19 Fastening the STK-RPS-150CH2 to the Rack
54
Figure 2-20 Fastening the STK-RPS-150CH8 to the Rack
54
Figure 2-21 Power Connectors on 08A-RPS-150P (Rear View)
55
Figure 2-22 08A-RPS-150P RPS Cable and AC Power Cord Connections
56
Rps-500
57
Connecting to the Console Port for Local Management
60
What Is Needed
60
Figure 2-26 08A-RPS-500 RPS Cable and AC Power Cord Connections
60
Connecting to a PC
61
Figure 2-27 RJ45 Connector Pinout Assignments
61
Figure 2-28 DB9 Console Connector Pinout Assignments
61
Connecting to the Web User Interface for Local Management
62
What Is Needed
62
Figure 2-29 Web Browser and Login Page
63
Figure 2-30 Web User Interface Main Page (08G20G4-24 Shown)
63
Connecting to the Network
64
Connecting UTP Cables to RJ45 Ports
64
Preparing to Install an Optional SFP Transceiver
65
Installing an Optional SFP Transceiver
65
Figure 2-32 Installing an SFP Transceiver with RJ45 Connector
66
Figure 2-33 Installing an SFP Transceiver with MT-RJ Connector
66
Removing an SFP Transceiver
67
Figure 2-34 Installing an SFP Transceiver with an LC Connector
67
Connecting Fiber-Optic Cables to SFP Ports
68
Completing the Installation
69
Initial Logon to Switch Management
69
Chapter 3: Troubleshooting
71
Checking the Leds
71
Figure 3-1 Switch Status Leds (08G20G4-24 Shown)
71
Cpu Led
72
Pwr Led
72
Table 3-1 PWR LED Definitions
72
Table 3-2 CPU LED Definitions
72
Fan Led
73
Link/Activity Leds
73
Rps Led
73
Table 3-3 RPS LED Definitions
73
Table 3-4 FAN LED Definitions
73
Table 3-5 Port LED Definitions for 10/100 Mbps Copper Ports
74
Table 3-6 Port LED Definitions for 10/100/1000 Mbps Copper Ports
74
Table 3-7 Port LED Definitions for 100/1000 Mbps SFP Ports
74
Poe LED
75
Table 3-8 Poe LED Definitions
75
Troubleshooting Checklist
76
Table 3-9 Troubleshooting Checklist
76
Removing the Switch from a Rack
77
Appendix A: Specifications
79
Switch Specifications
79
Table A-1 Enterasys 800-Series Switch Specifications
79
Redundant Power Supply Specifications
84
STK-RPS-150CH2 Chassis Specifications
84
STK-RPS-150CH8 Chassis Specifications
84
Table A-2 STK-RPS-150CH2 Specifications
84
Table A-3 STK-RPS-150CH8 Specifications
84
08A-RPS-150P Specifications
85
08A-RPS-500 Specifications
85
Table A-4 08A-RPS-150P Specifications
85
Table A-5 08A-RPS-500 Specifications
85
08A-RPS-24 Specifications
86
Table A-6 08A-RPS-24 Specifications
86
08A-RPS-130P Specifications
87
08A-RPS-150P Redundant Power Supply Connector
87
Figure A-1 08A-RPS-150P Power Supply Connector Pin Locations
87
Table A-7 08A-RPS-130P Specifications
87
08A-RPS-500 Redundant Power Supply Connector
88
Figure A-2 08A-RPS-500 Redundant Power Supply Connector Pin Locations
88
Table A-8 STK-RPS-150CH2 Power Supply Connector Pin Functions
88
Table A-9 08A-RPS-500 Redundant Power Supply Connector Pin Functions
88
Torque Values
89
Pluggable Transceiver Specifications
89
Console Port Pinout Assignments
89
Regulatory Compliance
89
Table A-10 Recommended Torque Values by Screw Size
89
Table A-11 Compliance Standards
89
Appendix B: Environmental Guidelines
91
Temperature and Humidity Guidelines
91
Operating Temperatures
91
Inlet Air Temperature Measurement
91
Cooling Air
91
Power Conditioning
91
Airflow Concerns for Closed Racks
92
Figure B-1 Closed Rack Ideal Configuration
92
Airflow Concerns for Open Racks
93
Figure B-2 Open Rack Ideal Configuration
93
Figure B-3 Non-Ideal Open Rack Configuration
94
Figure B-4 Mitigated Non-Ideal Open Rack Configuration
94
Dust Mitigation and Prevention
95
Figure B-5 Another Mitigated Non-Ideal Open Rack Configuration
95
Airborne Chemicals and Prevention
96
Table B-1 Airborne Dust Specification for Enterasys Equipment - Airborne Dust Maximum Values
96
