Entes MPR-45 - Aron Without Neutral Connection; 3 P4 W BLN (3 Phase Balanced with Neutral) Connection

11

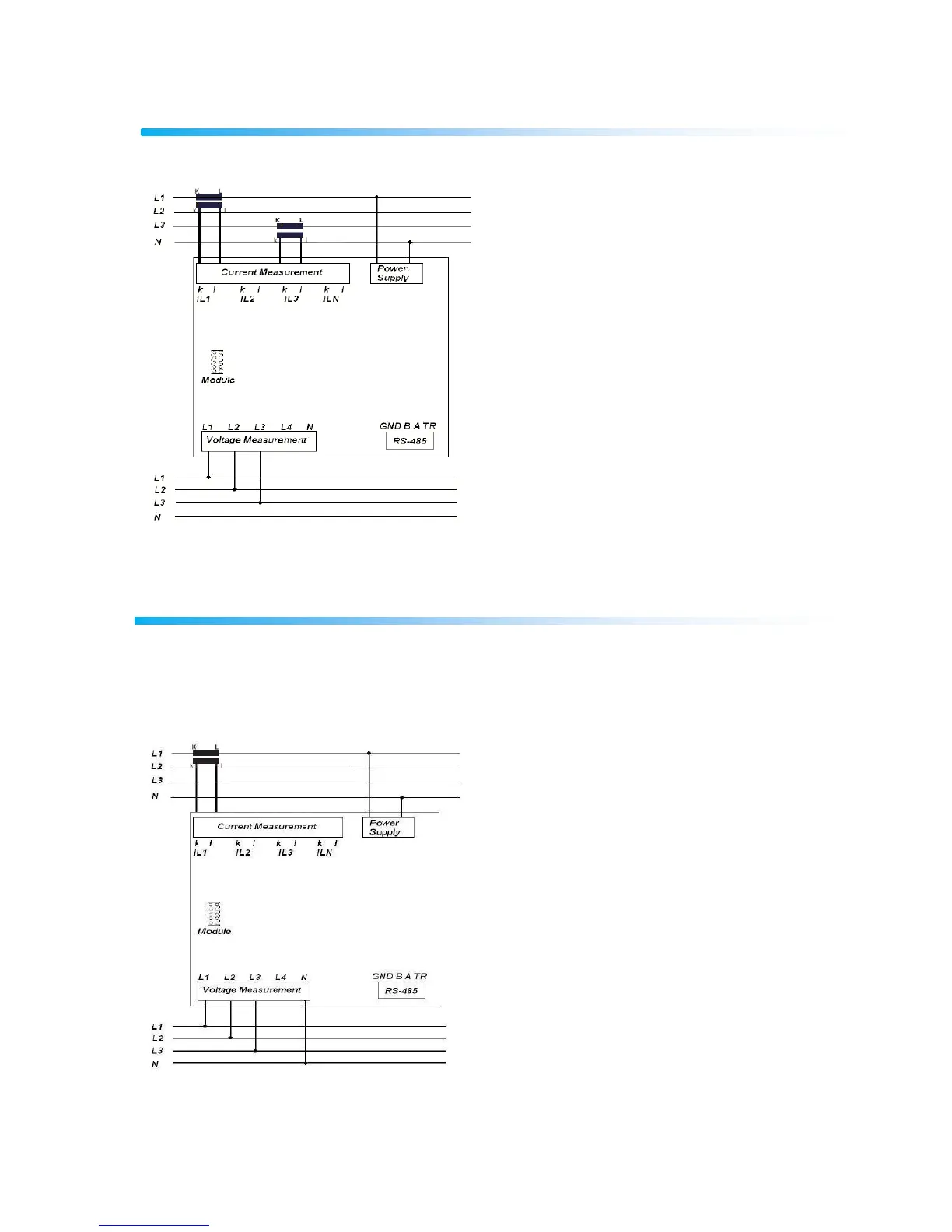

Aron without Neutral Connection
For this configuration, three voltage connections and two current connections are used.
3P4W BLN (3 Phase Balanced with
Neutral) Connection
For this configuration, four voltage connections and one current connection is used.
The device shows the same current value, which is measured from the first phase, for the unconnected
phases.
