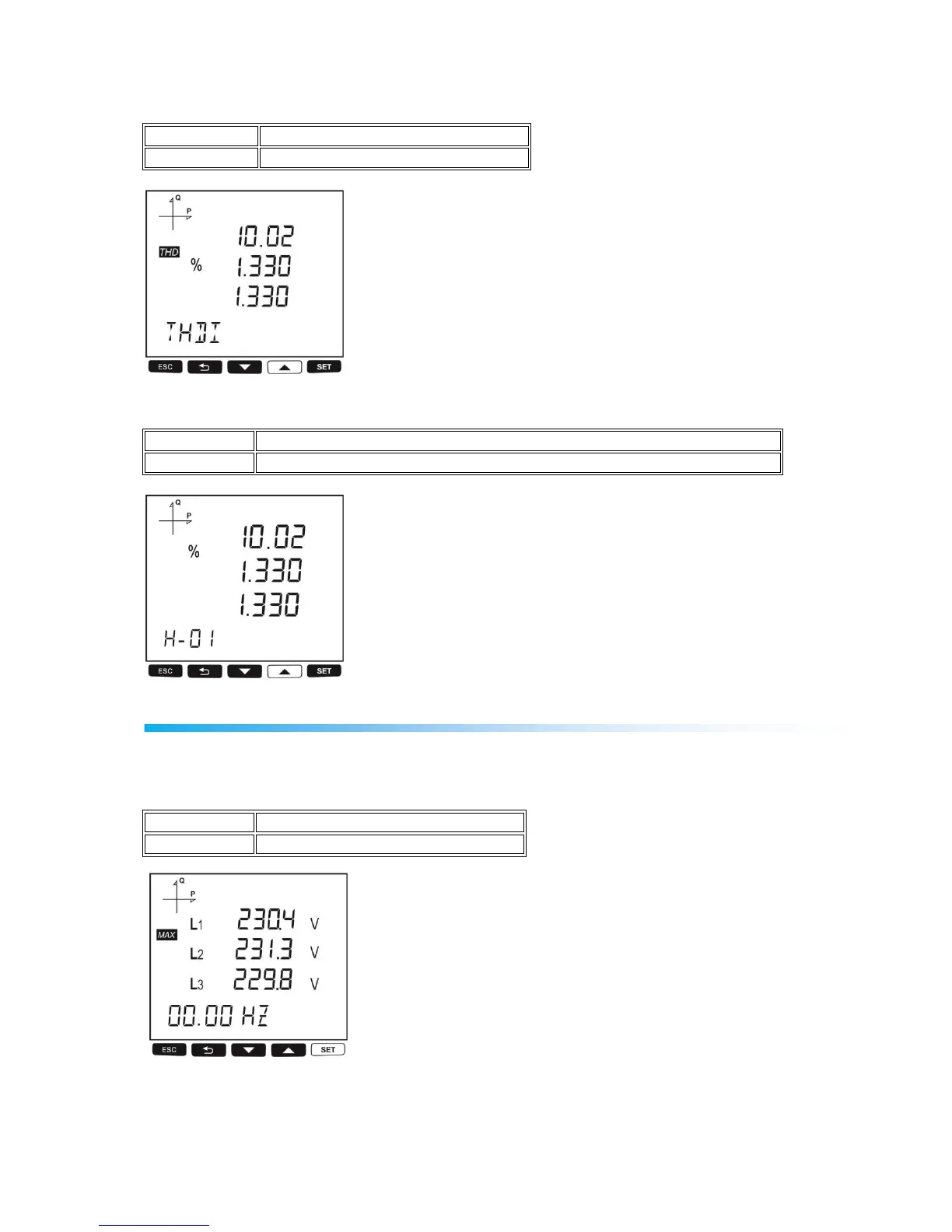

Current screen is displayed when “V I F” button is pressed. When THD H button is pressed at this point,
following screens are displayed.
BUTTON NAME
DISPLAYED MEASUREMENT SCREEN
UP
THD I
BUTTON NAME
DISPLAYED MEASUREMENT SCREEN
UP
CURRENT HARMONICS (H01, H02, ..., H51 in order) (Only for MPR47S model)
Minimum, Maximum and Demand Screens
To see the minimum and maximum values of current and voltage, first select the relevant screen with “V I
F” button.
Afterwards, you can display the following screens with MAX/MIN DEMAND button.
BUTTON NAME
DISPLAYED MEASUREMENT SCREEN
SET
MAX(Phase-Neutral Voltage)
