Analog Output-1 High Value Settings

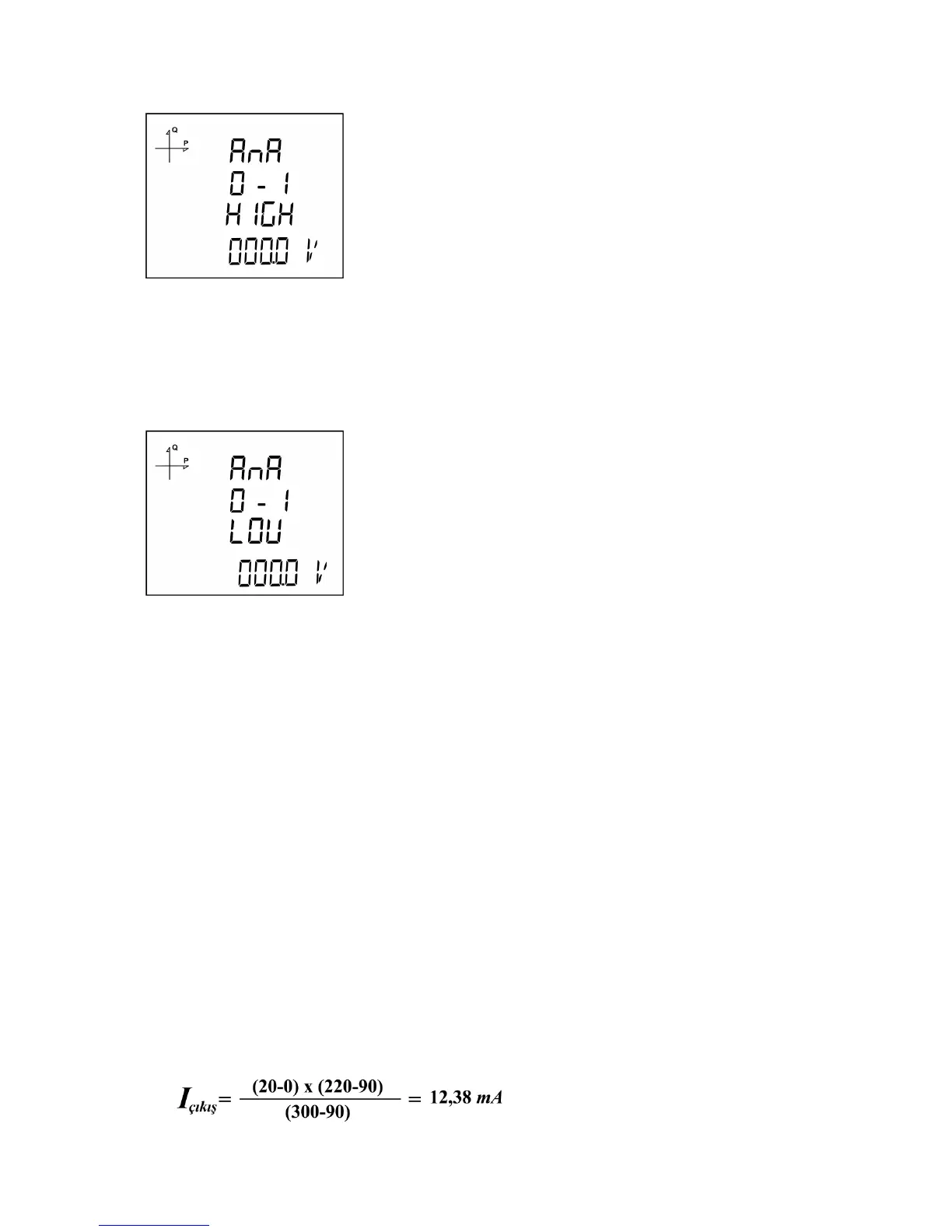

1. Press the SET button while Analog O-1 High is displayed.
2. Enter your high value with UP/DOWN buttons.
3. After entering your value, press the SET button.
4. When exiting from the menu with the BACK or ESC button, don’t forget to save the changes.
Analog Output-1 Low Value Settings
1. Press the SET button while Analog O-1 Low is displayed.
2. Enter your low value with UP/DOWN buttons.
3. After entering your value, press the SET button.
4. When exiting from the menu with the BACK or ESC button, don’t forget to save the changes.
For example;
Set the following options from the devices settings menu.
Type: 0-20 mA
Para (Parameter): VLN1
Low (Low Value): 90 V
High (High Value): 300 V
According to the settings above, analog output will be 0 mA when VL1 value is 90 V or lower and it will be
20 mA when VL1 value is 300 V or larger.
When VL1 value is 200 V, the output value is calculated as below:
