Entes RG3-12C - Page 20

POWER FACTOR CONTROLLER
RG3-12C/CS
19

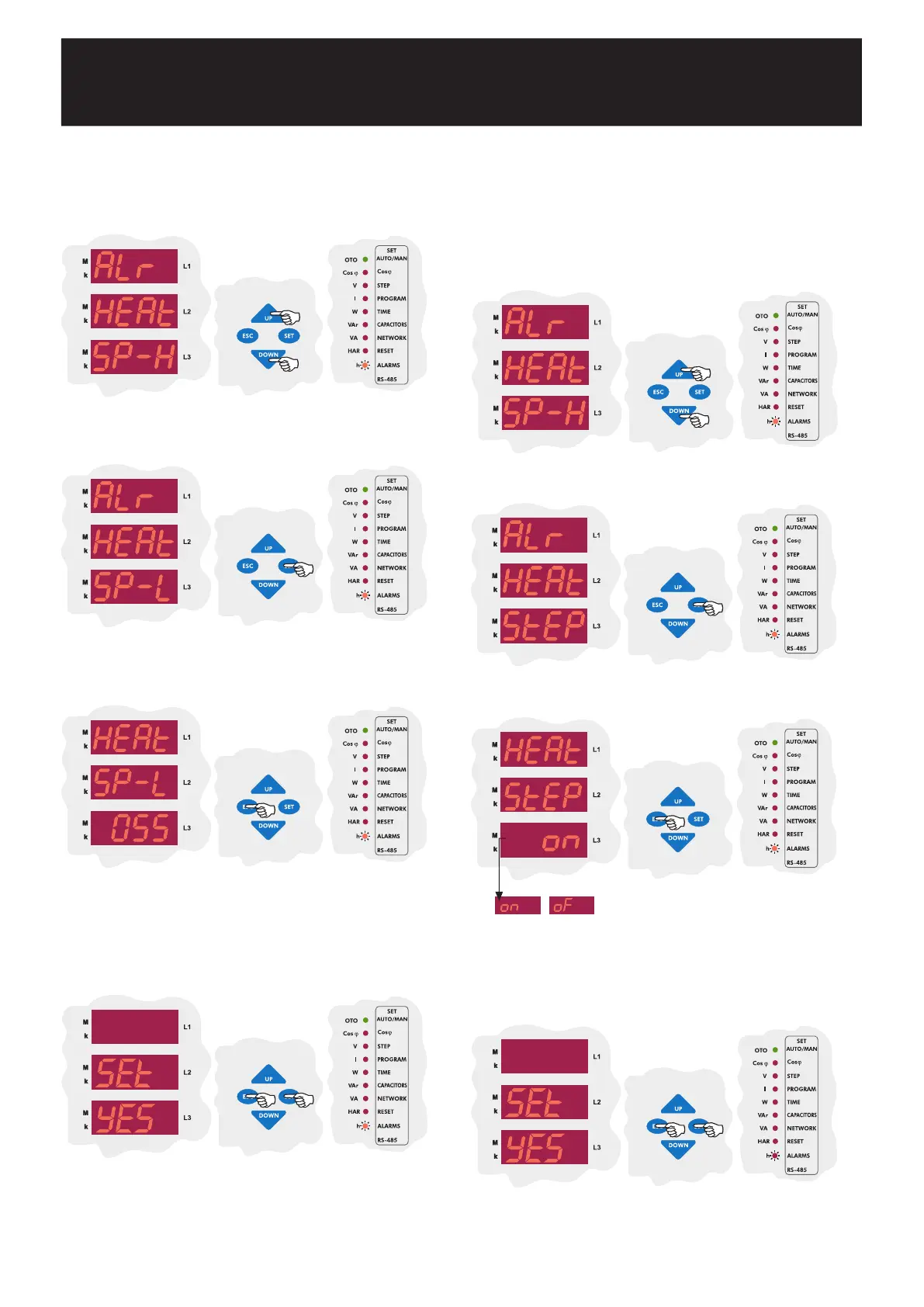

3.9.c.b Programming the Lower Limit of Temperature Alarm
3.9.c.c Programming the Switching Off of the Capacitor
Steps in Case of Overheating
In order to protect the capacitors from overheating, they can be set to
switch off in case of overheating in this menu.
If on option is selected, when an overheating alarm occurs, capacitor
steps stay switched on.
If of option is selected, when an overheating alarm occurs, capacitor
steps switch off.
In this menu; the lower temperature limit, which deactivates the overheating
protection, is programmed between 00.0-99.9 °C(Refer to Technical
Features section for measurable ranges).
When ALr HEAt SP-H is displayed, find the lower temperature limit
(SP-L) by using the UP/DOWN buttons.
Press the SET button to set the lower temperature limit(SP-L).
Enter a value between 00.0-99.9 °C and press the SET button. If you
are going to change another setting, return to the menu by pressing the
SET button.
If you do not want to set another parameter, press the ESC
button.
SAUE
If you want to leave the setup menu without making any other changes,
press the ESC button until SAVE SEt yES shows on the screen. If
you want to save the changes, press the SET button. If not, press the
ESC button.
When ALr HEAt SP-H is displayed, find the step menu(StEP) by using
the UP/DOWN buttons.
Press the SET button for programming the switching off of the capacitor
steps in case of overheating.
Using the UP/DOWN buttons, select on or oF option and press the
SET button.
If you are going to change another setting, return to the
menu by pressing the SET button.
If you do not want to set another
parameter, press the ESC button.
SAUE
If you want to leave the setup menu without making any other changes,
press the ESC button until SAVE SEt yES shows on the screen. If
you want to save the changes, press the SET button. If not, press the
ESC button.
