Entes RG3-12C - Page 19

POWER FACTOR CONTROLLER
RG3-12C/CS
18
In this menu; the upper temperature limit, which activates the overheating
protection, is programmed between 00.0-99.9 °C(Refer to Technical
Features section for measurable ranges).
3.9.c.a Programming the Upper Limit of Temperature Alarm
Note : Temperature measurement feature is optional for RG3-12CS.
In order to protect the capacitors from overheating, upper (HEAt SP-H) and
lower (HEAt SP-L) limits between 00.0-99.9 °C and step protection (HEAt
StEP) are all set in this menu. If the temperature exceeds the upper limit,
which is programmed in the device, for 10 seconds; RG3-12C/CS gives
an alarm signal (Erro r-10) and switches off or does nothing for the capacitor
steps according to selected capacitor step setting(HEAt STEP). After the
temperature stays under the lower limit value for 10 seconds, the alarm
state disappears.
3.9.c Temperature Alarm Settings
SAUE
If you want to leave the setup menu without making any other changes,
press the ESC button until SAVE SEt yES shows on the screen. If
you want to save the changes, press the SET button. If not, press the
ESC button.

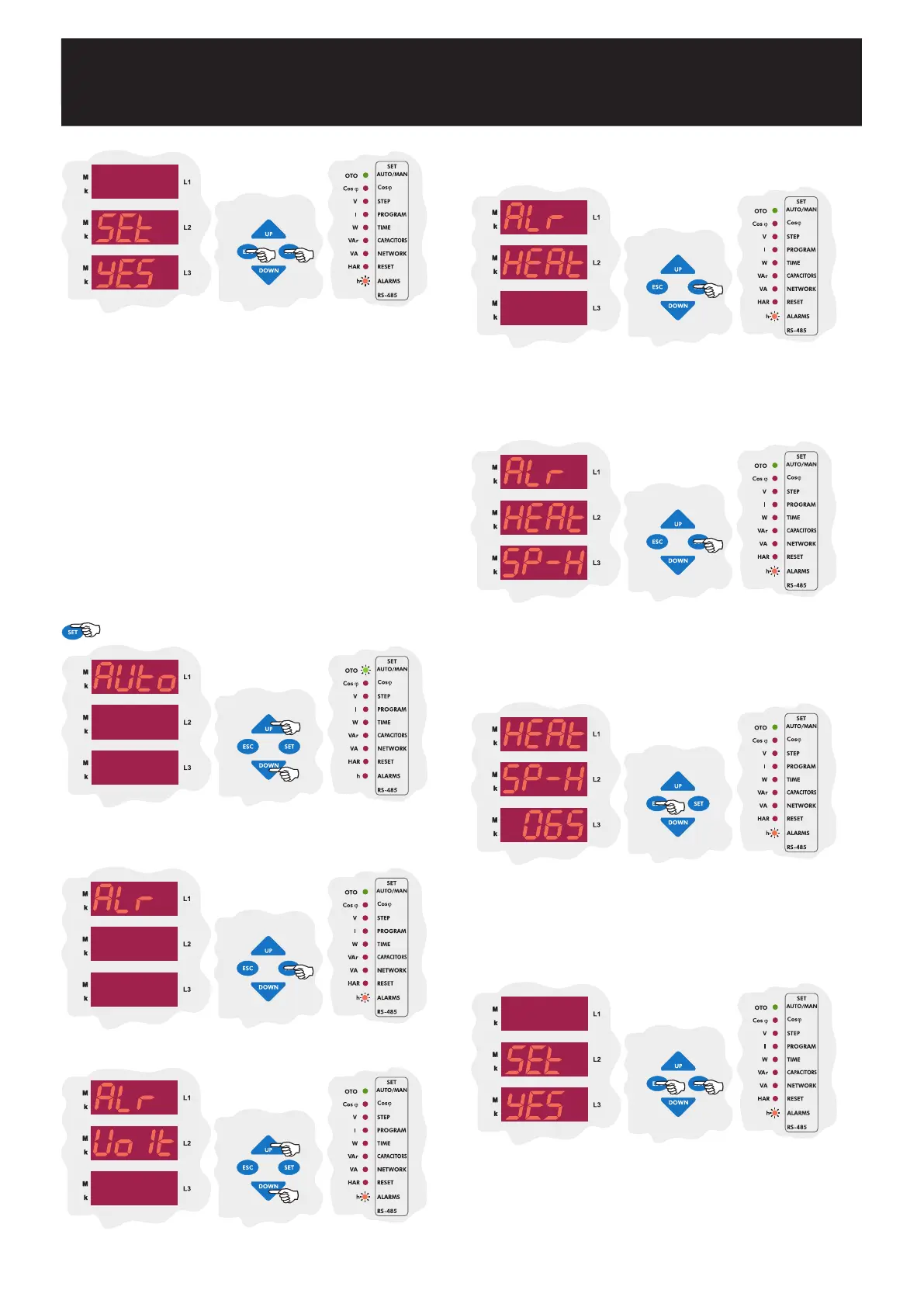

Press the SET button to enter the alarm(ALr) settings.
Using the UP/DOWN buttons, find temperature alarm menu(HEAT) which
is the second setting in the alarm menu.
Press the SET button to enter the upper limit of the temperature
value(SP-H).
Press the SET button to select the SP-H menu in which the upper and
lower limits for the temperature alarm to activate or deactivate the alarm
relay is programmed.
Enter a value between 00.0-99.9 °C and press the SET button.
If you
are going to change another setting, return to the menu by pressing the
SET button.
If you do not want to set another parameter, press the ESC
button.
SAUE
If you want to leave the setup menu without making any other changes,
press the ESC button until SAVE SEt yES shows on the screen. If
you want to save the changes, press the SET button. If not, press the
ESC button.
Using the UP/DOWN buttons, find the alarm menu(ALr). When Alarm
menu is selected, alarm LED turns on.
Press the SET button for 3 sec. in order to enter to the
menu.
3 sec.
