POWER FACTOR CONTROLLER
RG3-12C/CS
17
3.9.b.b Inductive Ratio Setting

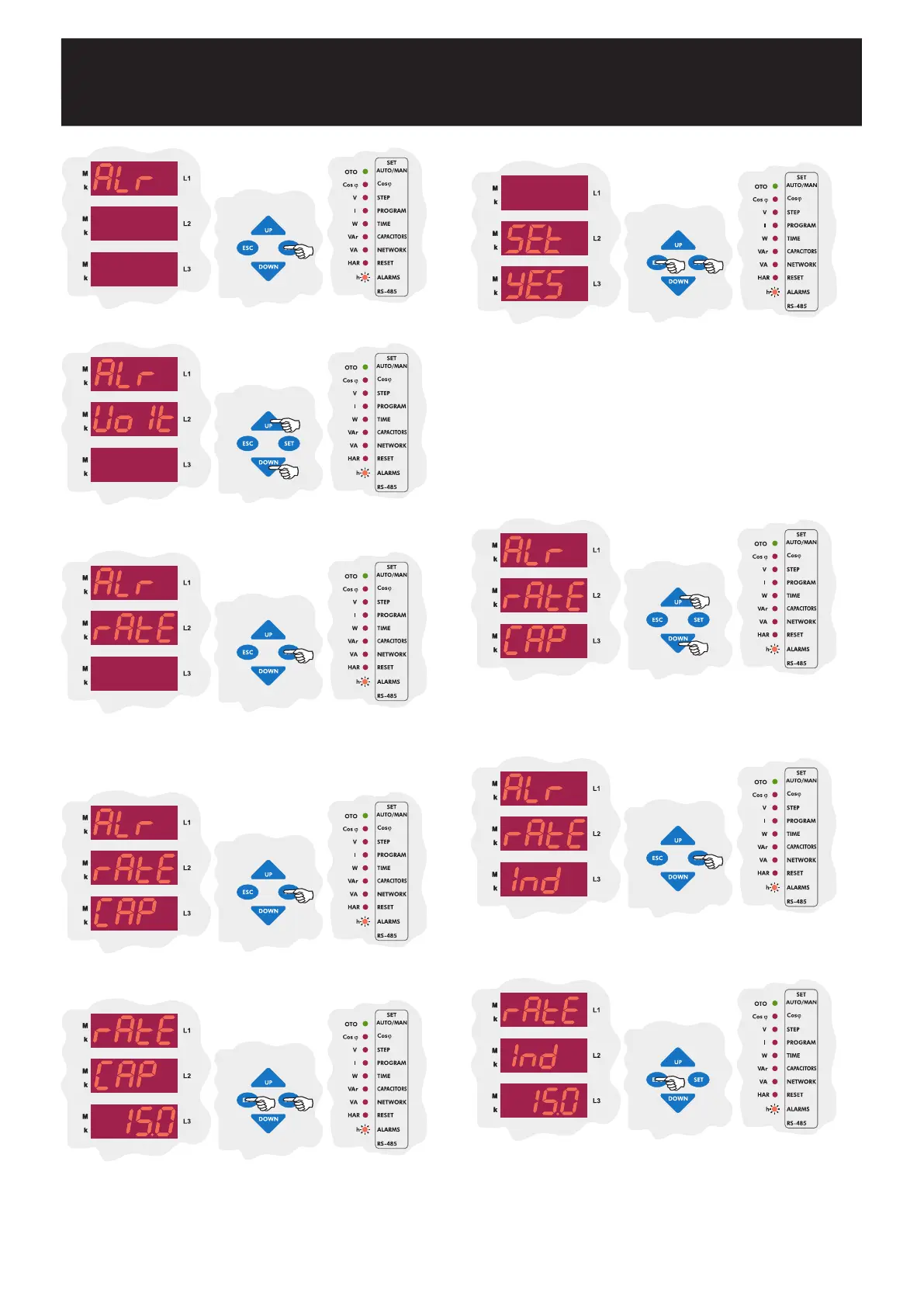

Press the SET button to enter the alarm(ALr) settings menu.
Using the UP/DOWN buttons, find reactive/active ratio (rAtE) menu.
The second setting in the alarm menu(ALr) is the reactive/active energy
ratio menu(rAtE). From this menu, the upper limit value of the
capacitive/active and inductive/active ratios can be set. Press the SET
button to set these values.
Press the SET button to set the capacitive/active ratio.
Enter the capacitive/active ratio between 0-99.9 % and press the SET
button.
If you are going to change another setting, return to the menu by
pressing the SET button.
If you do not want to set another parameter,
press the ESC button.
SAUE
If you want to leave the setup menu without making any other changes,
press the ESC button until SAVE SEt yES shows on the screen. If
you want to save the changes, press the SET button. If not, press the
ESC button.
In order to provide accurate compensation, the upper limit value of
inductive/active ratio is entered in this menu. This value can be set between
0-99.9 %. If the inductive/active ratio of the network exceeds the preset
value, an alarm occurs. If this value is set as 0, this function is disabled.
When Alr rAtE CAP is displayed on the display, find rAtE Ind menu
by using UP/DOWN buttons.
Enter the inductive/active ratio between 0-99.9 % and press the SET
button.
If you are going to change another setting, return to the menu by
pressing the SET button.
If you do not want to set another parameter,
press the ESC button.
Press the SET button to set the inductive/active ratio.
