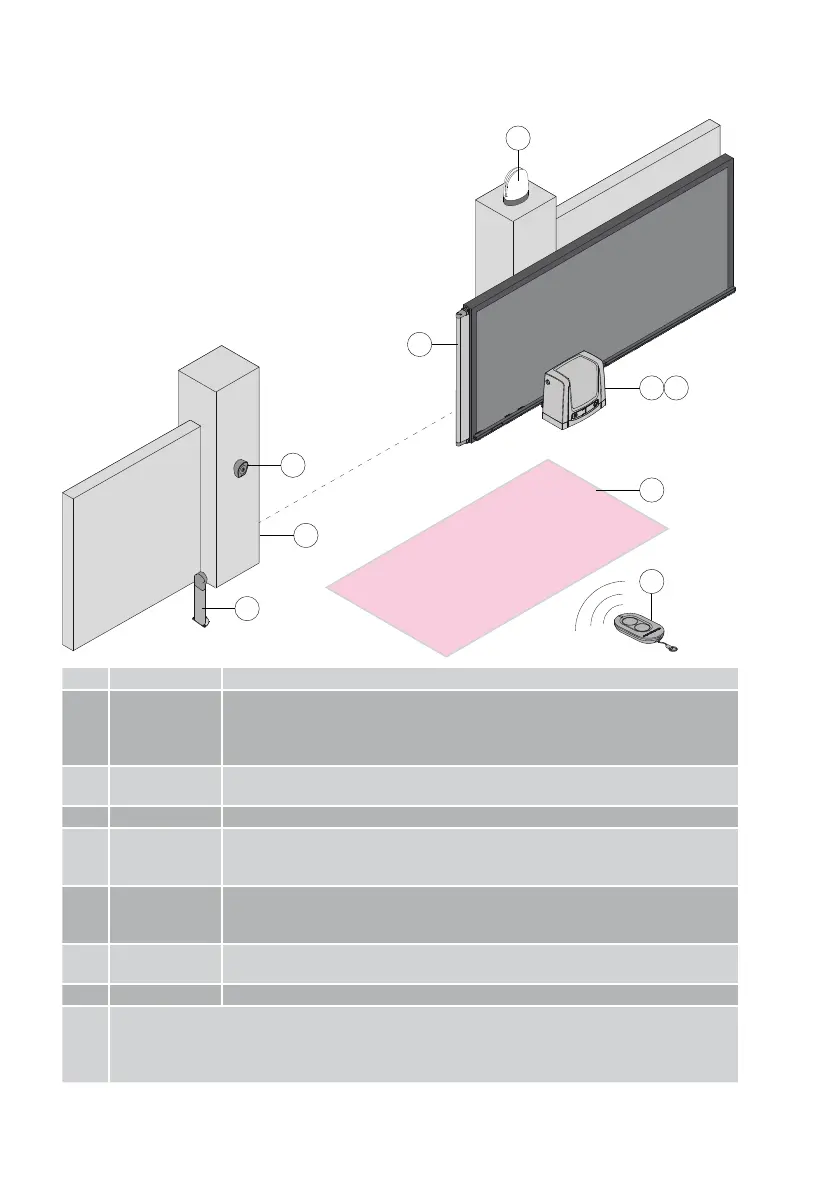

4. Standard installation
Ref. Code Description
1 NES300
NES400
NES600
NES1000
300 kg gearmotor with control panel
400 kg gearmotor with control panel
600 kg gearmotor with control panel
1000 kg gearmotor with control panel
2 ZEN2 / ZEN4
ZEN2C / ZEN4C
Remote control
3 FL24 Flashing light
4 XEL5
LAN4
GOL4M
Key selector switch
Keypad
Wireless keypad
5 LIN2
XEL2
LAB4
Photocells
IP55 photocells
6 SOFA-SOFB
GOPAV
Safety edge
Radio system for safety edges
7 LAB9 Magnetic loop detector for passage control
A Connect the power supply to a type-approved omnipolar switch, with a contact opening distance of at
least 3 mm (not supplied).
The connections to the mains and low voltage wires (230V) must be made on an independent channel
separated from the connections to the command and safety devices (SELV = Safety Extra Low Voltage).
1 A
4
7
2
6
3
5
5
