41
IP2160EN - 2017-04-12
1
12

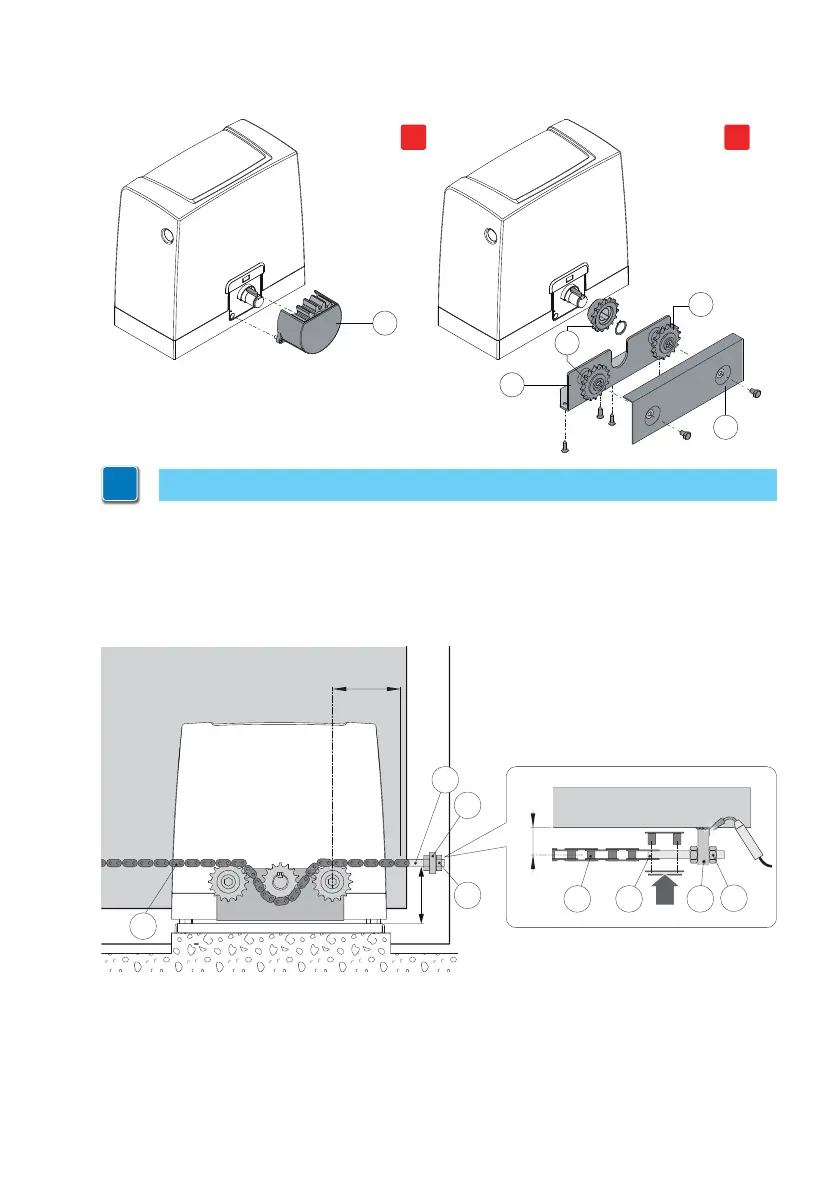

- Release the gearmotor (see OPERATING INSTRUCTIONS).
- [1] Remove pinion [12].
- [2] Fix pinion supporting plate [A] to the gearmotor.
- Insert pinions [B] as illustrated in the diagram.
- [3] Pass the chain between the pinions by hand.
- Fix cover plate [C].
2
A
B
B
C
NB: Install the chain drive kit before securing the gearmotor to the base plate.
7.7 Chain drive kit installation
i
- Move the wing into the open position by hand and fix brackets [D] on the wing as illustrated in
the diagram.
- Connect chain [E], which was previously assembled on the gearmotor, to tie rod [F] and fix it
to bracket [D].
- Fix bracket [D] on the opposite side of the gate. Connect chain [E] to tie rod [F] and fix it to
bracket [D] (cut the excess chain).
min 50
40
90
E F D
G
E
F
G
D
