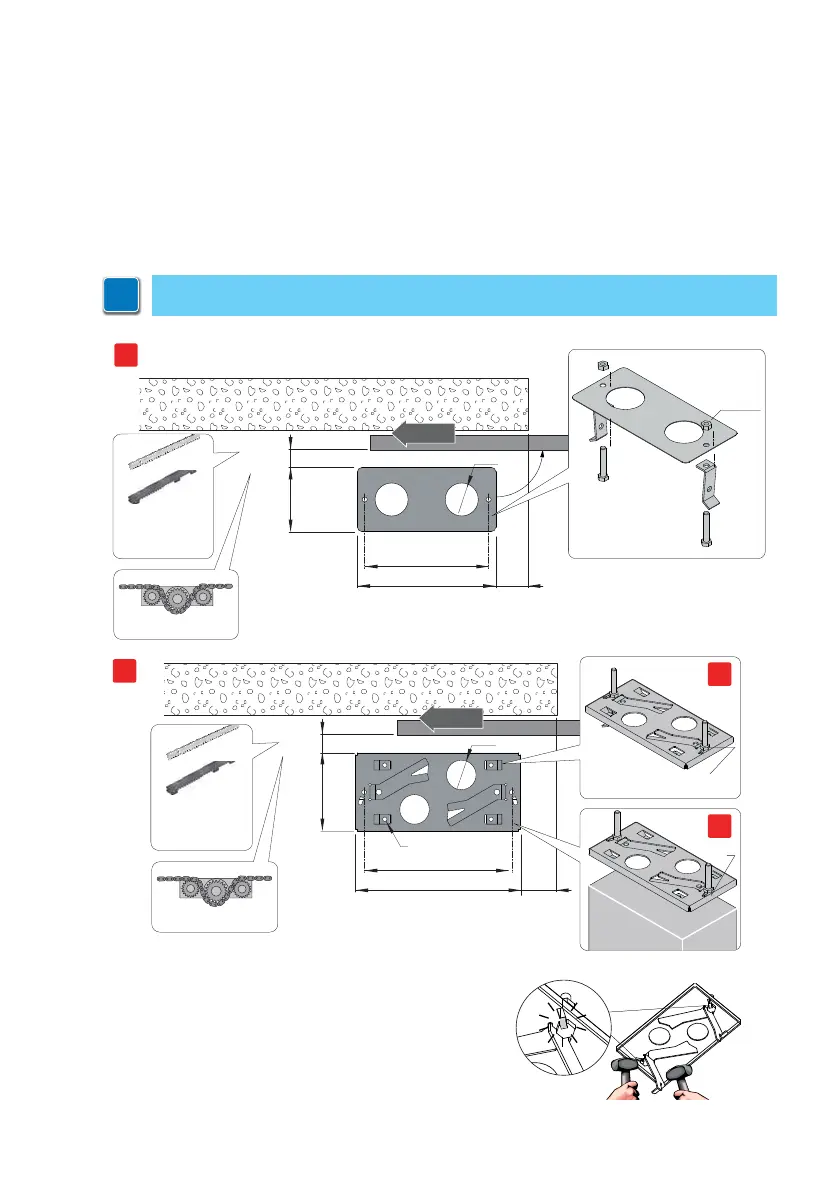

7.2 Base plate position
[1] Insert the anchor ties into the base plate and fix them with the supplied nuts.
[2] Insert the screws in the base plate, secure them with the nuts and then bend the metal tab to
prevent the screw from coming out.
Extract the preformed ties with a downwards movement using a hammer to ensure correct
anchorage to the concrete.
- Make a concrete base with the anchor ties and base plate embedded, which must be level and
clean and of the size indicated in the figure.
i
NB: if the concrete base has already been made, base plate [2] can be fixed using M8
plugs (not supplied).
