The Proame 2 IFC (Figure 7) connects directly to the gas valve, split ow valve, stepper motor, pilot and covection fan
with a wiring harness. The IFC is mainly powered by 120 VAC but can also run off a battery backup four (4) AA type
batteries for shorter periods of time. The IFC accepts commands via radio frequency from the Transmitter to operate
the appliance in accordance with the particular Proame 2 system conguration. The IFC has a red reset button at the
front right corner that is used is to synchronize the Transmitter when using the for the rst time, or after the batteries
have been replaced.

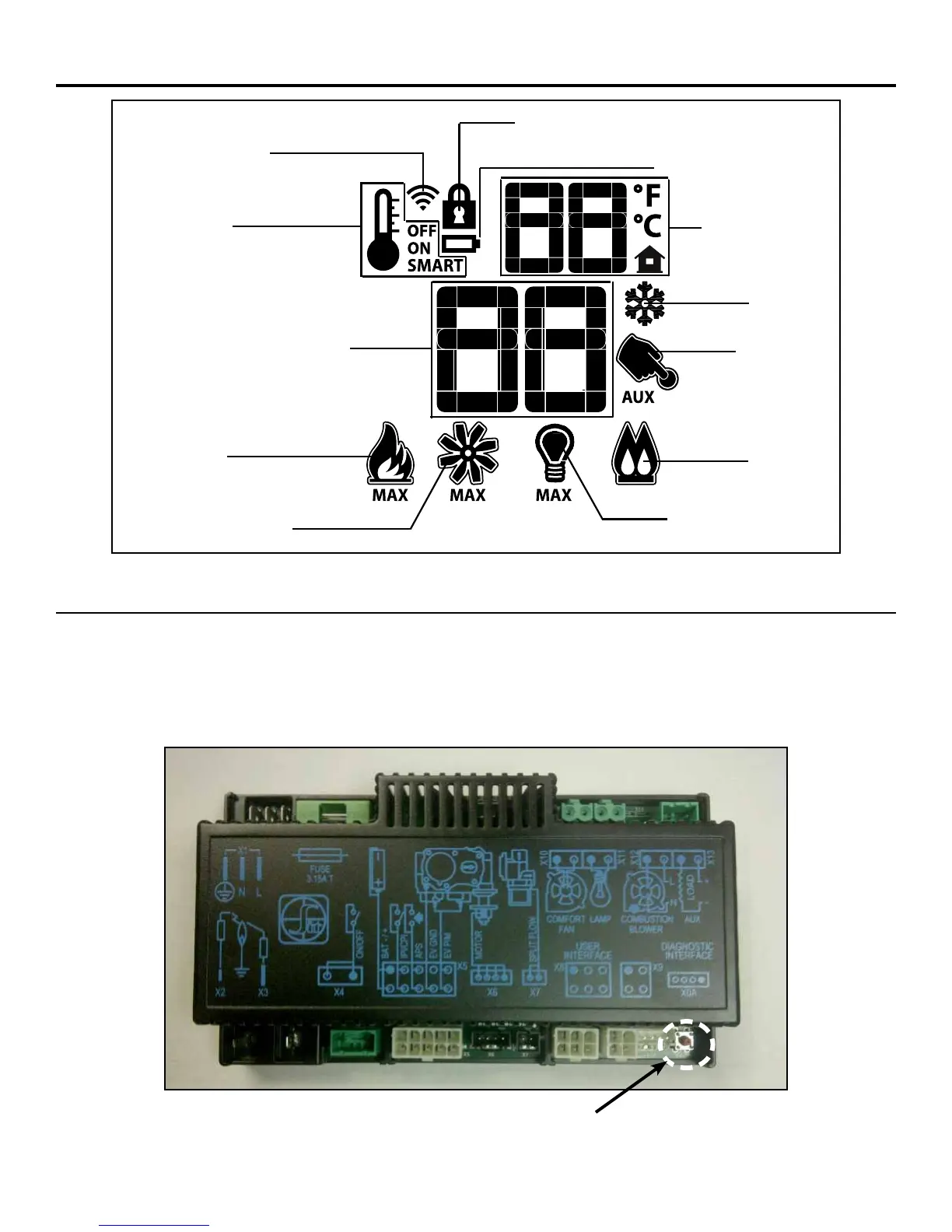

Figure 6: Proame 2 Transmitter LCD Screen.
Figure 7: Integrated Fireplace Controller
Low battery alarm
Key Lock
Room
Temperature
Dimmer ON
Set Point
Temperature/Level/State
Flame ON
Thermostat OFF/
ON/SMART
Comfort fan
Transmission
Split Flow
Aux ON
CPI mode
Operating Instructions
