Initial Installation
QUALIFIED INSTALLERS ONLY
intRoDuction:
This section of the owner’s manual is for the use of qualied technicians only. Fireplace placement,
hearths, and venting terminations will be covered, as well as the gas and electrical systems. There are
several installation safety guidelines that must be adhered to. Please carefully read the safety precautions
at the front of this manual.
pRepaRation foR instaLLation:
• Remove the packaging from the appliance, and check to make sure there is no damage. If damage is
found, please report it to both the carrier and your dealer as soon as possible.
• Before beginning, carefully check the glass door and the log set
• Locate a position where the ue system of the stove can be properly installed without damaging the
integrity of the building; e.g. cutting a wall or ceiling joist.
• Check stove and ue system clearance requirements.
• Locate the stove where it can be accessed by a gas supply line.
• Locate the stove in a large and open room that is centrally located in the house. This will optimize heat
circulation and comfort.
• As the Berkeley is equipped with a convection fan, ensure that an electrical outlet is within 6 ft (1.8 m)
of the stove.
• The ow of combustion and ventilation air must not be obstructed.
B
A
Front
Back Wall
Side Wall
C
C
Front
Adjancent Wall
Adjacent Wall
A. Sidewall to unit 12” (30.5 cm)
B. Backwall to unit 5.0” (12.7 cm)
C. Corner to unit 7.43 (18.9 cm)
D. Ceiling to unit 27.5” (69.8 cm)
E. Floor (hard wood & linoleum) 0”
Note: When installing on a carpeted
surface the supplied hearth pad must be
used.
minimum aLcove Dimensions:
Width 52.0” (132.1 cm)
Height 57.25” (145.4 cm)
Depth (Max.) 42” (106.68 cm)
Warning: Clearances must be sufcient
to allow access for maintenance and
service.
cLeaRance to combustibLes:

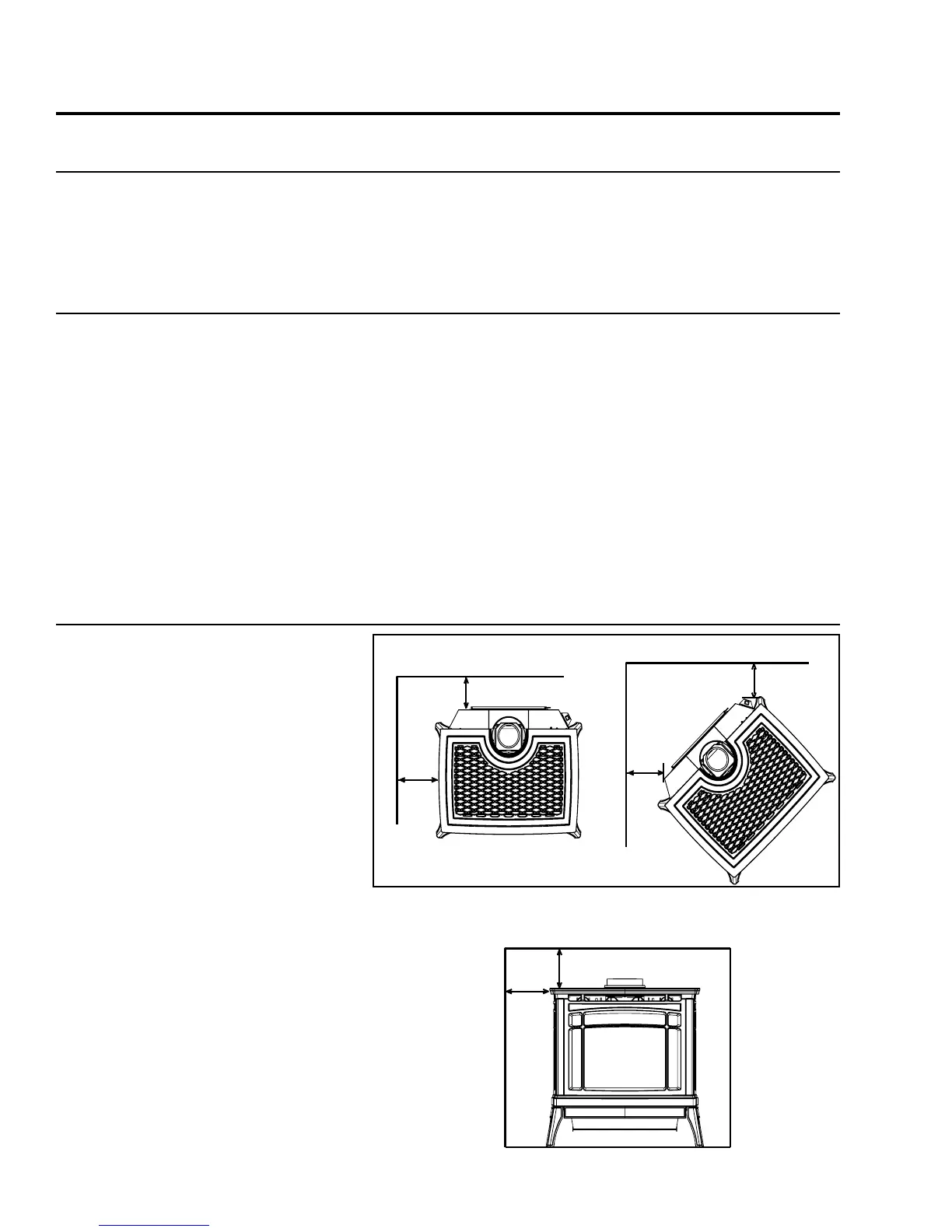

Figure 29 Clearance to Combustibles
Figure 30 Clearance to Combustibles
20
