Enviro Berkeley-IPI - Allowable Vent Configurations

40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1 2 3 4 5 6 7 8 9 10 11 12 13 14
HORIZONTAL RUN
ft
VERTICAL RISE
INSTALLATION
PROHIBITED
INSTALLATION
PROHIBITED
No Restrictor
Required
Restrictor
Setting #1
Restrictor
Setting # 2

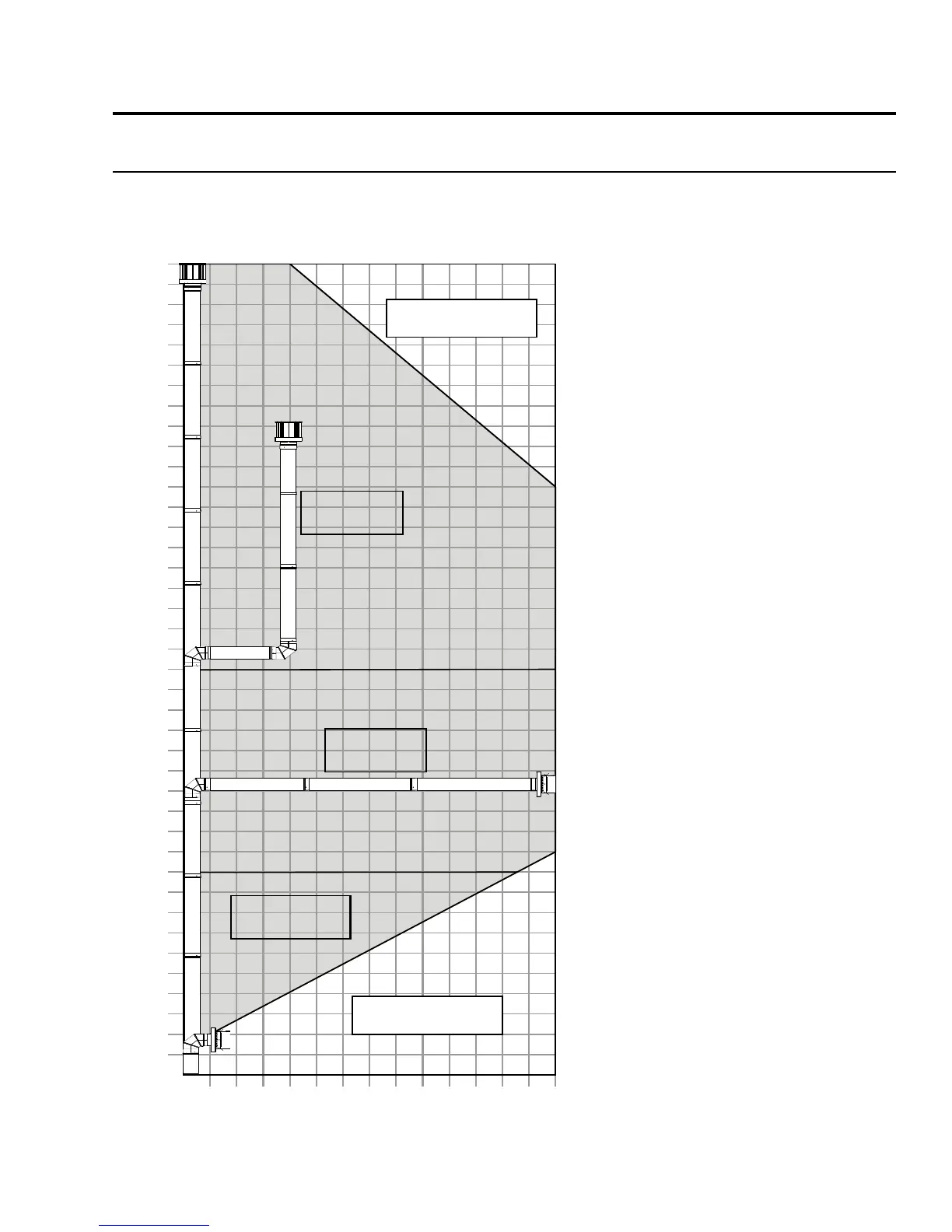

Figure 34:Possible Vent Congurations for
Vertical and Horizontal Terminations.
Initial Installation
QUALIFIED INSTALLERS ONLY
aLLowabLe vent configuRations:
Figures 34 show the range of possible vent congurations for vertical and horizontal terminations. Any
layout that remains within the shaded areas is acceptable. Having the fewest number of elbows is ideal,
as they tend to disrupt air movement. Using 45˚ elbows is preferable to using 90˚ elbows. Also, a
shorter vent system will perform better
than a longer one. The total length of
horizontal vent pipe can not exceed
14 feet (4.27m) with one elbow in
the horizontal plane, and the total
vent length can not exceed 44ft
(13.4m). Any combination of rise and
run can be used as long as it lays within
the shaded area (a total of two (2) 90˚
elbows or four (4) 45˚ elbows can be
used. In addition to what is shown, if a
90˚ elbow is used in the horizontal plane,
3 feet (91.4cm) must be subtracted from
the allowable horizontal run (for each 45˚
elbow, 1½ feet must be subtracted).
Note: The air restrictor (supplied with
the unit) is required for vertical venting
runs of 10ft (3.05m) or taller. See
aIr
restrIctor settIngs for more information
25
