Secondary Installation
Log set instaLLation:
The placement of the logs is not arbitrary. If they are positioned incorrectly, the ames can be “pinched”
and will not burn correctly. All of the logs come with either a notch or ledge, which make alignment easier.
Using the pictures provided, carefully set the logs in place (see Figures 44 through 50).
NOTE: The logs are fragile and should be handled gently.
Please ensure that there is no damage to the
ember bed or any log prior to installation.
To Install Log Set:
1. Remove the top and front of the unit. Then
remove the glass door by releasing the top
spring latches.
2. Next, install the ember bed assembly, as
shown in Figure 44, by holding onto the
slots in the ember bed. The ember bed must
be held at a 45° angle, from left to right,
in order for it to t inside the rebox. When
installed correctly it should butt against the
back of the rebox.
3. Install the back log, as shown above in Figure
45, by sitting it on top of the ember bed at
the back of the rebox. There is a locating
half round on the right side, highlighted
above, to aid in correct placement

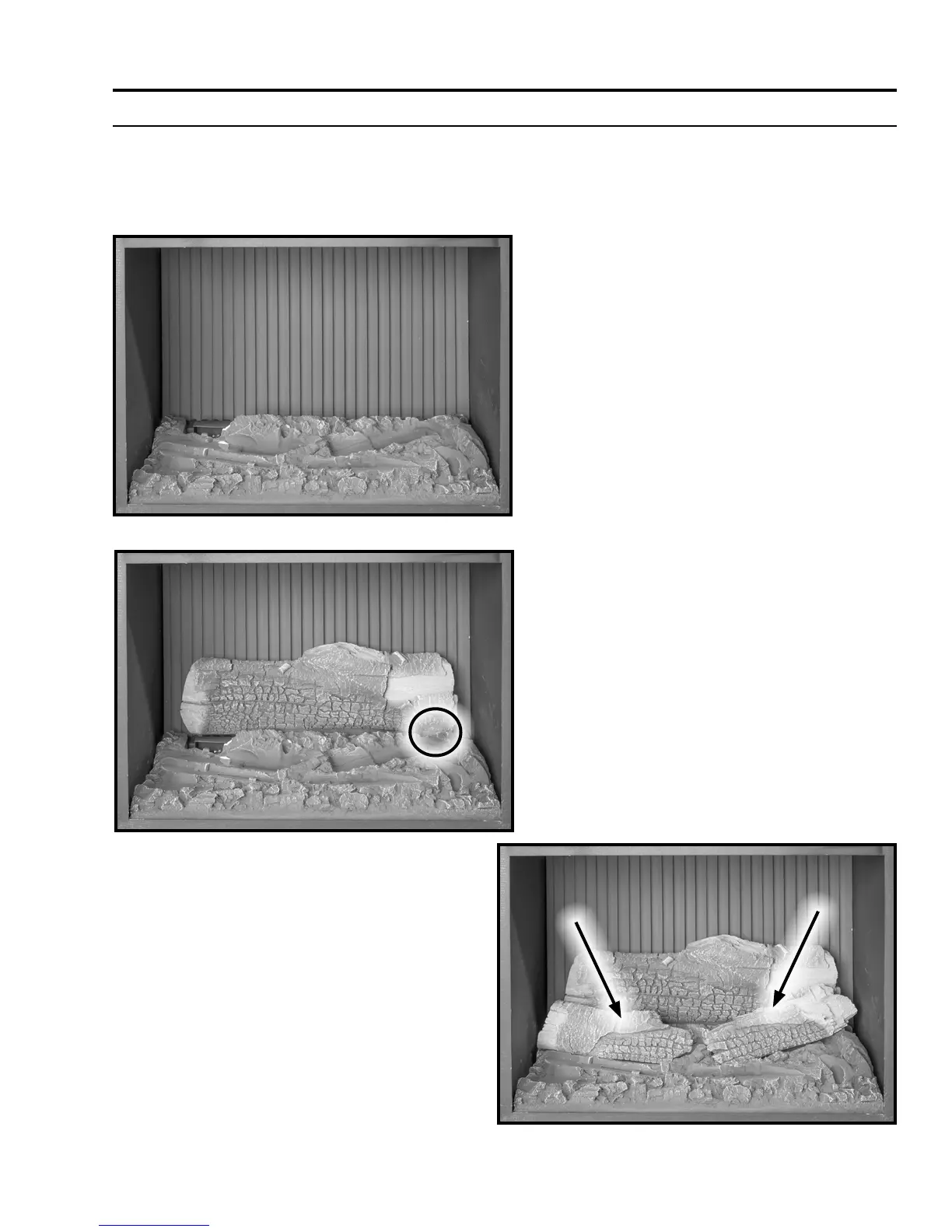

Figure 44. Ember Bed Assembly.
Figure 45. Back Log.
Figure 46. Rear Ember Bed Logs.
4. Next, Install the two large at bottommed
logs in the middle of the ember bed as shown
in Figure 46.
