EOGB X500 - Burner Dimensions and Specifications

8
Revision 1 01/01/16
X400
X500
X600
Additional air intake option
Air intake options
X500 X600
Aø root Aø max B* C D E F G** H Jø Kø L
X400 89 89 80 231 50 161 194 138 297 90 125-150 10
X500 89 89 80 231 50 161 204 159 318 90 125-150 10
X600 89 89 140 231 50 161 204 169 360 90 125-150 10
**Please note that dimension G is extended by 30mm on the air inlet
side whilst rotating the burner into the locking mounting ange
* Guidance only - other tube lengths are available

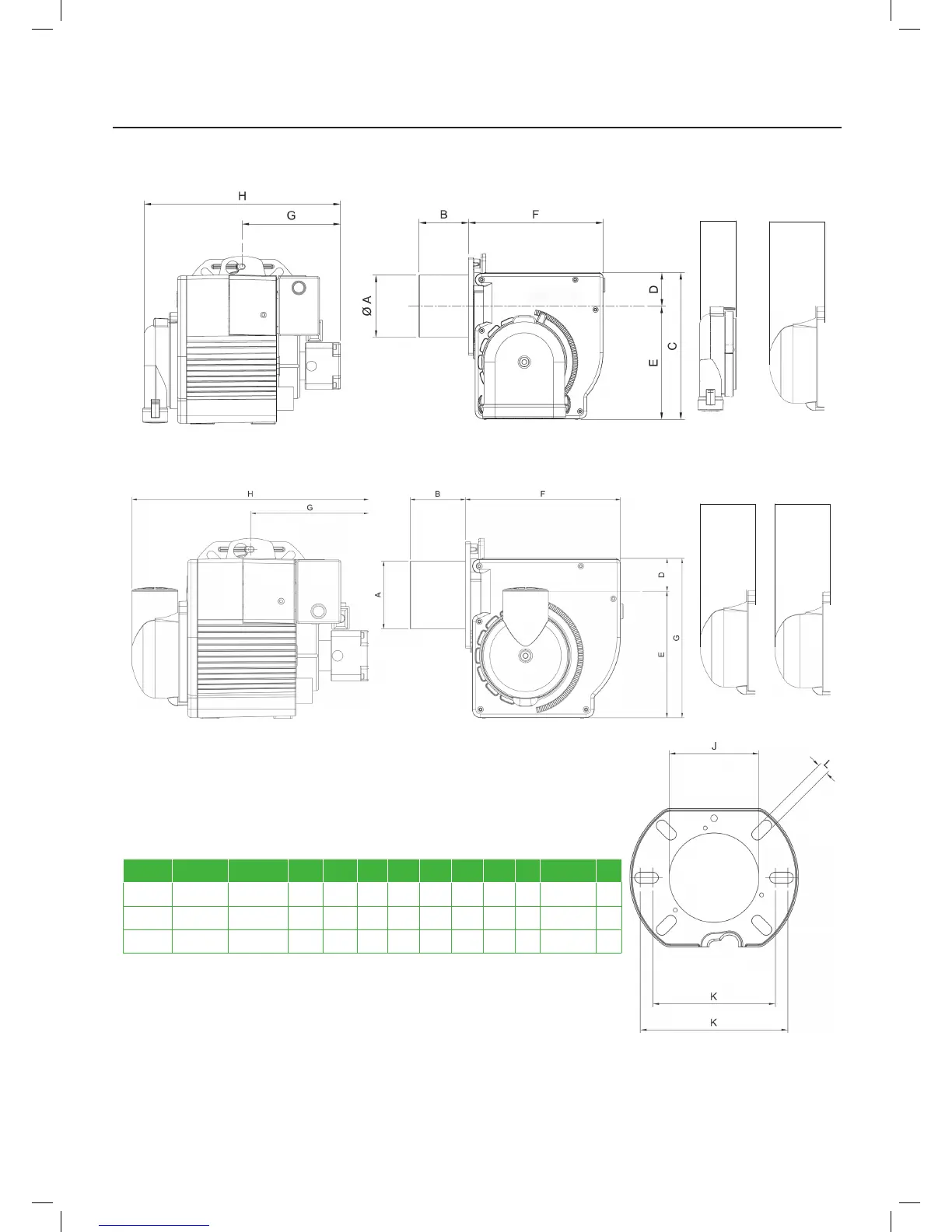

Burner dimensions (mm)
Technical description of the burner
4.4 Burner dimensions
Fig. 2
Narrow
Version
Balanced
Version
ø60mmø50mm
ø60mm ø70mm
