4.2 Burner components
Technical description of the burner
The following accessories will be found within the X-Series carton.
1 x Burner mounting ange (including mounting bolt)
1 x Burner mounting gasket
4 x Nuts, bolts, and washers to x the mounting ange
1 x 3.5mm allen key
1 x 4mm allen key
1 x Blast tube sealing gasket
1 x Green bio exible
1 x 7 Pin plug (X600 only, or if requested)
1 x Annular Shim (X600 only, or lf requested)
1 x Balanced ue air intake conversion kit (X400 only)
1 x Balanced ue rubber adaptor 60mm to 70mm (X400 and X500 only)
1 x High output air damper (X400 only)
1 x Low output air damper (X500 only)
4.3 Burner accessories
Please note that EOGB’s green biofuel exibles are suita-
ble to use with Kerosene, Gas Oil and biofuel blends of
up to 100% for FAME based biofuels when supplied by a
reputable fuel supplier
If other bio blends of fuel are to be used then please
contact EOGB for further information, please note that a
specication of the biofuel may be requested.
WARNING
Fig. 1.2
1
2
3
4
6
7 8
9
10
1215 14 13
11
5

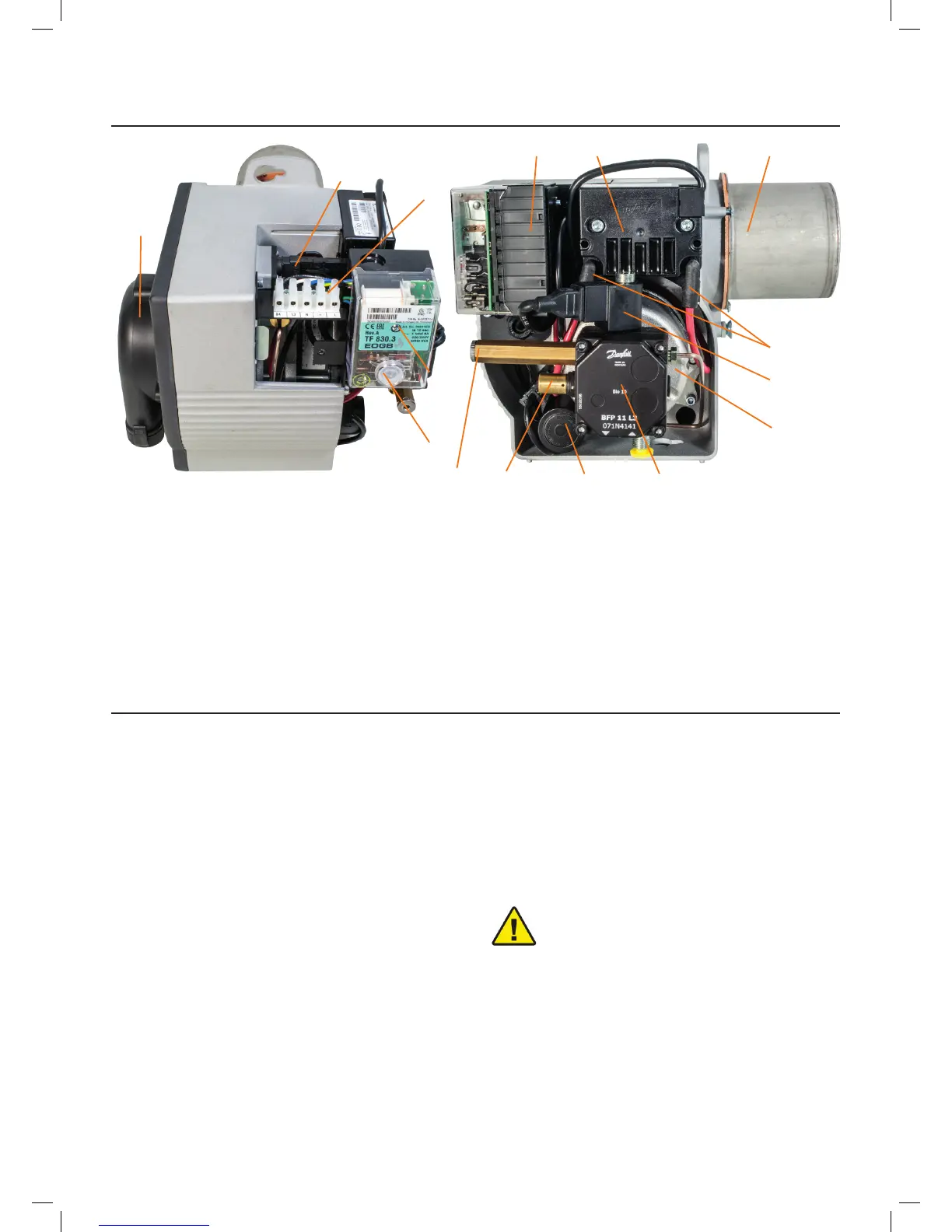

1 Air intake
2 Photocell
3 5 Pin Terminal Strip
4 Control Box
5 Lockout reset button
6 Wiring base
7 Ignition unit
8 Blast tube
9 HT Leads
10 Solenoid valve
11 Motor
12 Fuel Pump
13 Capacitor
14 Pressure adjuster
15 Pressure gauge port
Fig. 1.1
