Burner Operation and Commissioning
Fig. 26
A
B
C
D
X500 & X600 Only
A
B
C
D
Fig. 28
X400

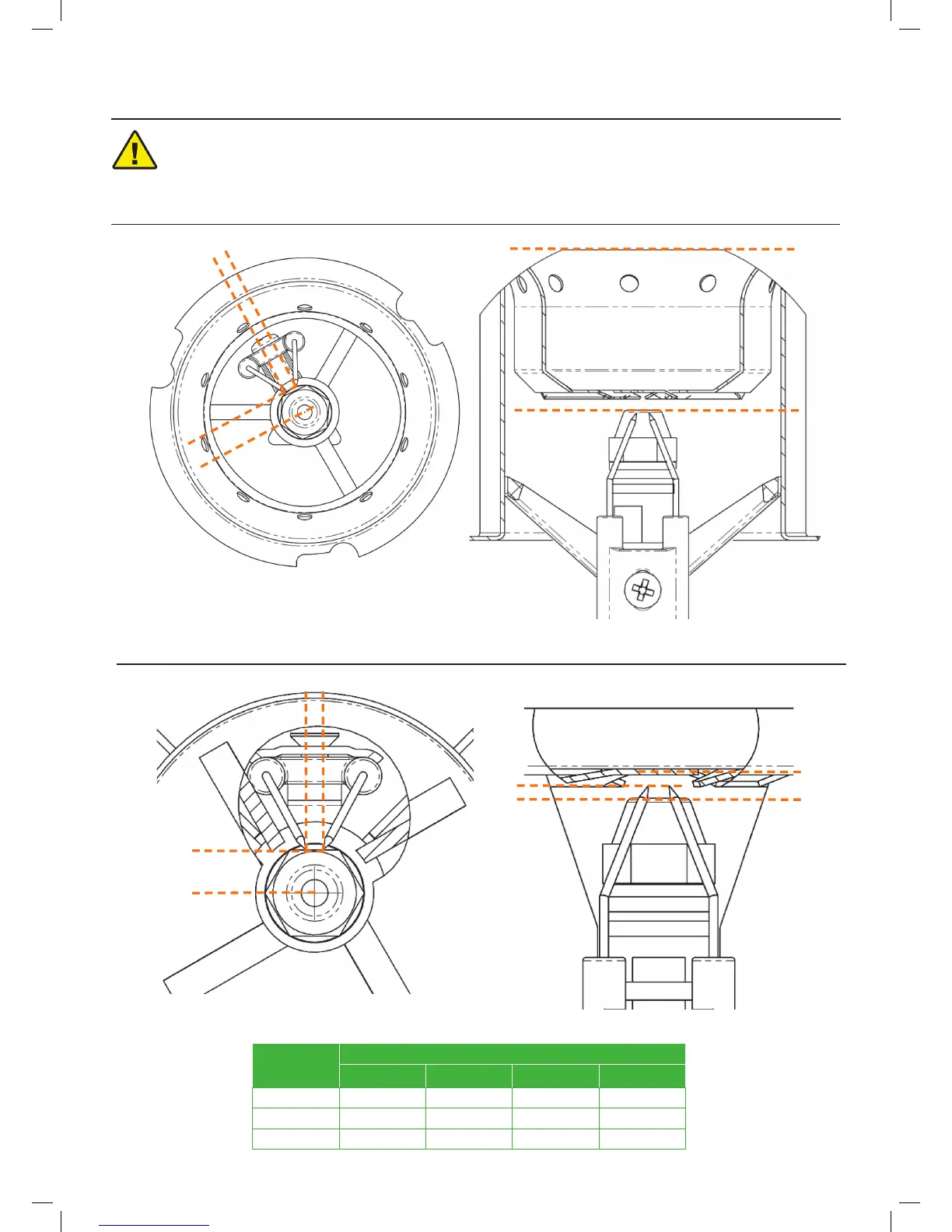

8.7 Electrode settings
WARNING
The position of the electrodes can be critical to en-
sure the ignition spark is generated in the correct
place. To ensure a safe reliable ignition of the fuel,
please check your electrode settings using the below
diagrams.
Please note the position of the electrode block should be
located at approximately 11:00 o’clock (see Fig 26)
Fig. 27
Fig. 29
Model
mm
A B C D
X400 3.5 9.0 0 43.0
X500 3.5 6.0 2.0 6.0
X600 3.5 6.0 2.0 4.5
Table F
