EOGB X500 - Page 18

16
Revision 1 01/01/16

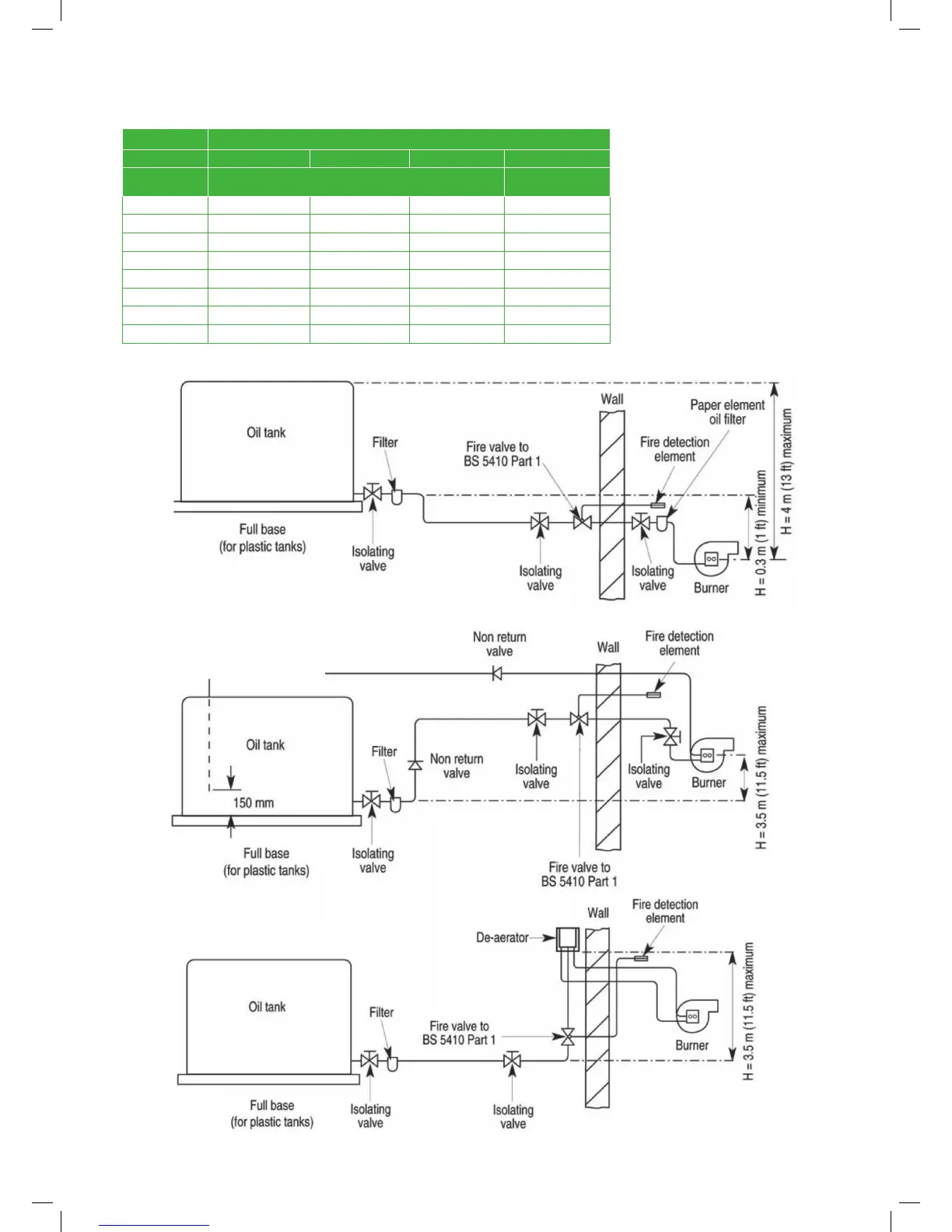

Fig. 13
Maximum Allowable Pipe Run From Tank To De-Aerator (metres)
Flue Flow-rate 2.5 (kg/h) 5.0 (kg/h) 10 (kg/h) 10 (kg/h)
HEAD (metres) 6mm inside dia. pipe (8mm O.D copper)
8mm inside dia. pipe
(10mm O.D copper)
0 100 55 26 100
-0.5 95 45 23 100
-1.0 80 40 20 90
-1.5 70 35 17 75
-2.0 60 30 14 65
-2.5 45 25 11 50
-3.0 35 15 8 35
-3.5 25 10 5 20
Table. D - 1 Pipe Suction Li With De-Aerator
(a) - 1 Pipe System
(b) - 2 Pipe System
(c) - 1 Pipe Li System with De-Aerator
Oil Supply
