EN-16 Installation and Operating Instructions - EOS Vision
Installation
EN
3.1.1 Installation site
The sauna heaters output selected must be appropriate for the cabin vol-
ume; see 2.5 Technical data,  EN-12.
 Ceiling height of at least 190 cm
 Distance heater – cabin wall min. 8 cm (base plate serves as orientation)
 Distance heater – bench (lower than heater) min. 5 cm
 Distance heater – bench (higher than heater) min. 8 cm
 Distance heater – flammable material (wood wall, sauna bench, etc.);
see the following figures.
 A heater guard rail must be mounted around the upper edge of the
heater. It prevents accidental contact with hot parts of the heater.

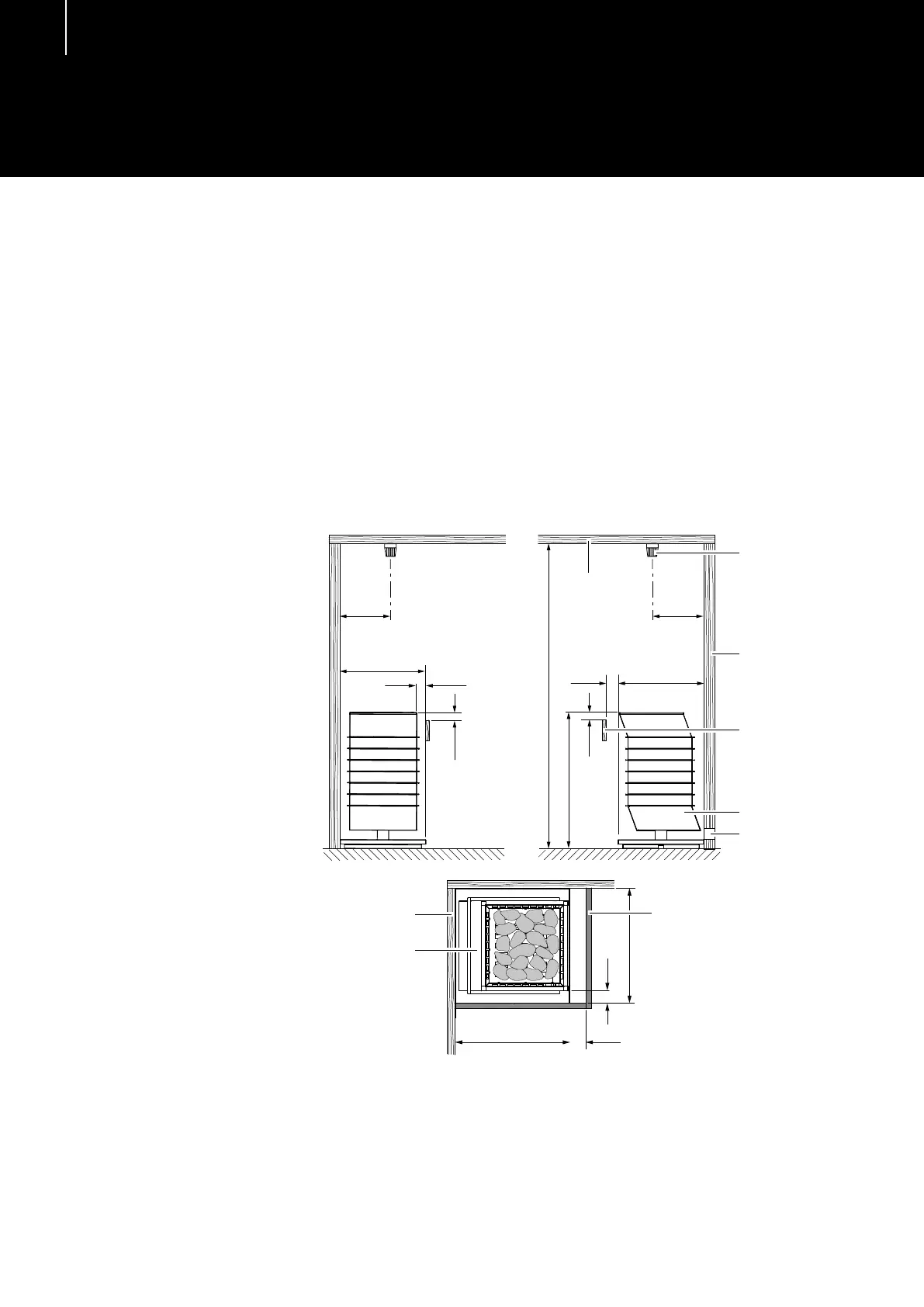

 Dimensions in the cabin
A Cabin ceiling
B Temperature sensor
C Cabin wall
D Heater guard rail
E Heater
F Air inlet
min. 190 cm
95 cm
60 cm
6 cm
5 cm
35 cm
60 cm
6 cm
5 cm
35 cm
60 cm
6 cm
6 cm
60 cm
B
A
C
C
D
E
F
E
D
