4.9.1 Connection Examples for DI/PI_Type001

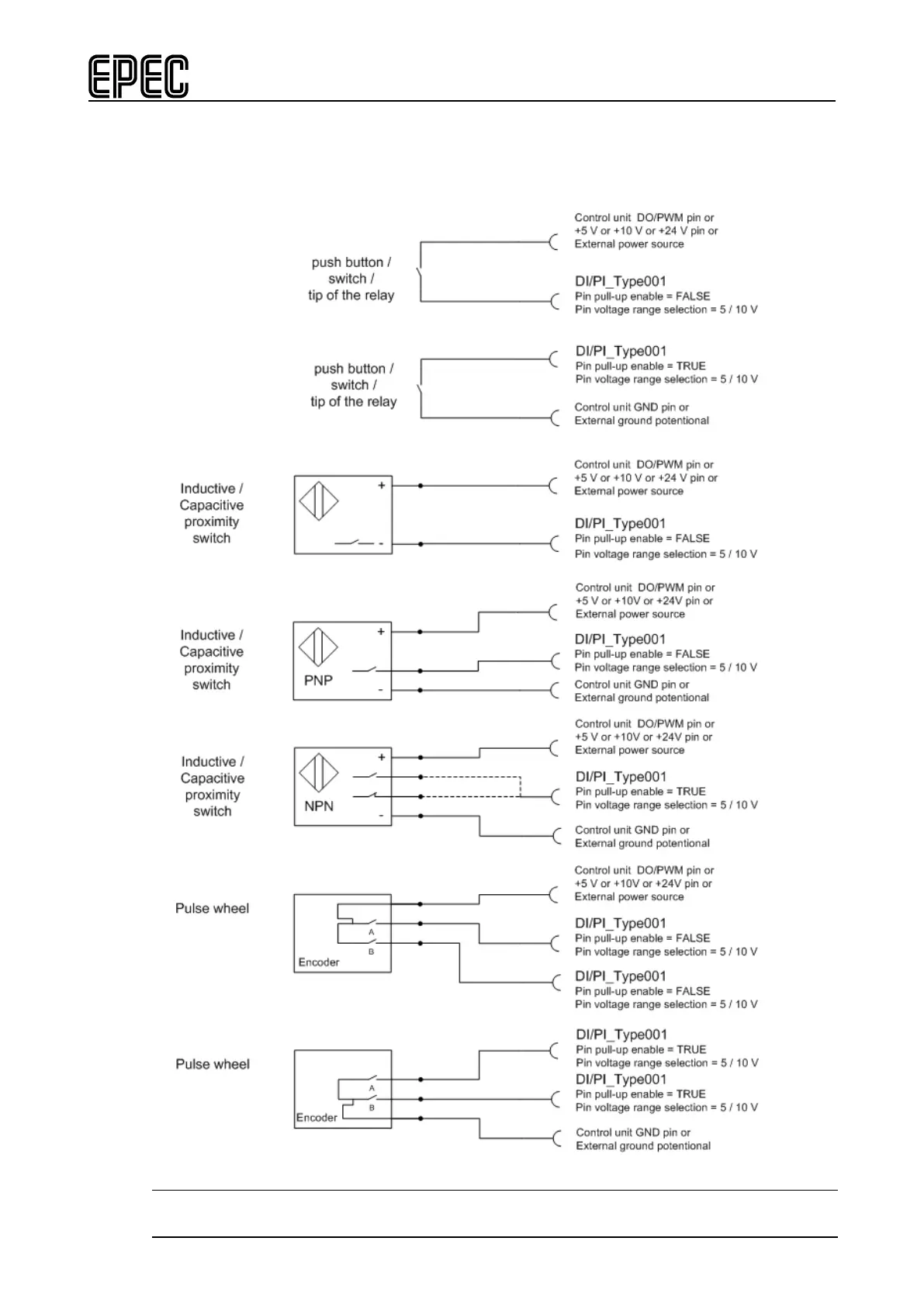

The following figures show examples of how to connect external actuators when using the
DI/PI_Type001 pin:
