8.4.5 Power supply
The maximum continuous current per pin is 10 A.
• The nominal operating voltage for Epec modules is 12 and 24 VDC. The full operating
range is 8,3 - 36VDC.
• See section
Power supply pins and limitations for accurate pin allocation of the connectors
when using Epec 5050 control unit.
• Single point grounding should be used for power supply for all the control units.

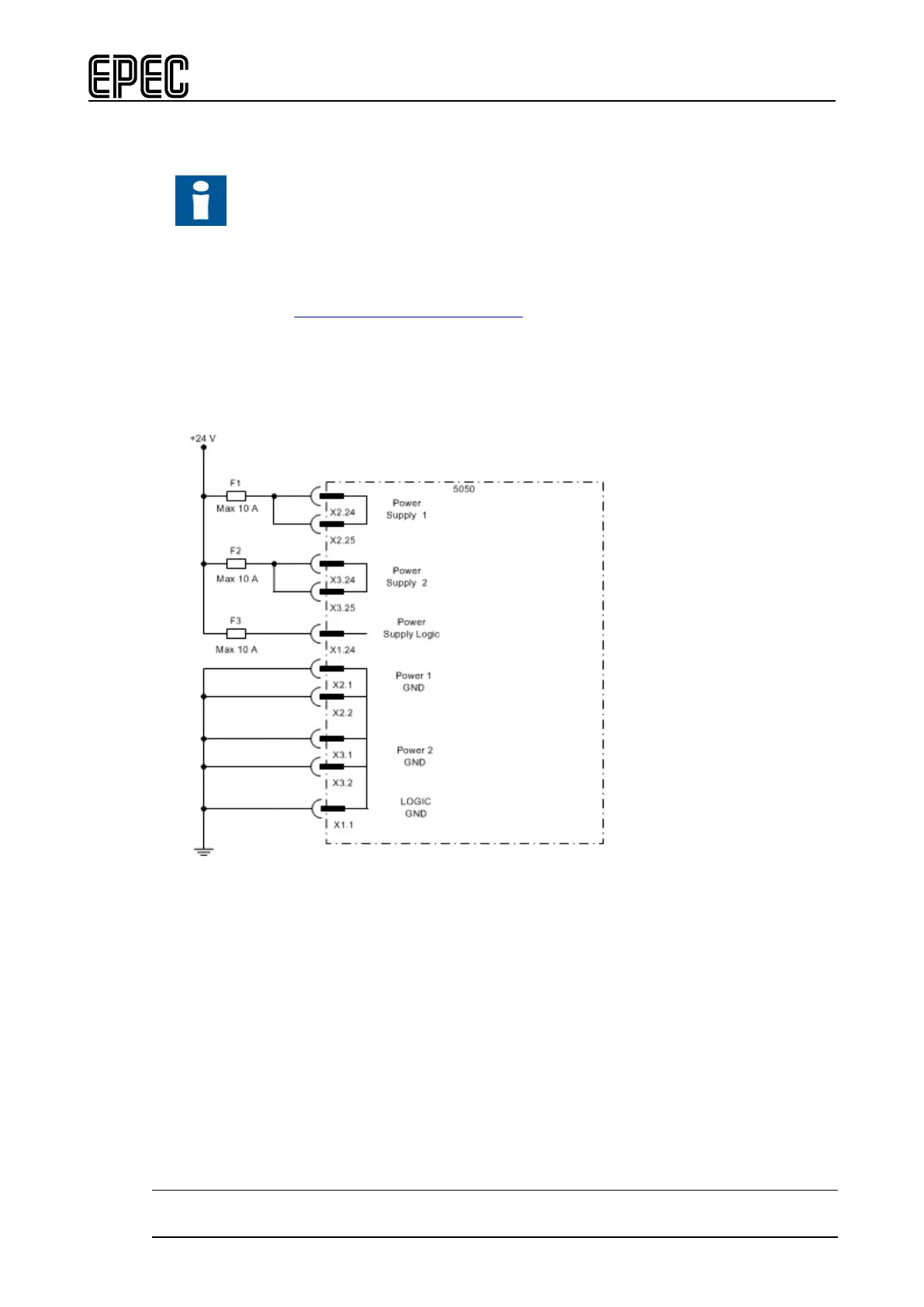

Power supply's wiring example when max 10 A is needed from Power 1 and Power 2:
