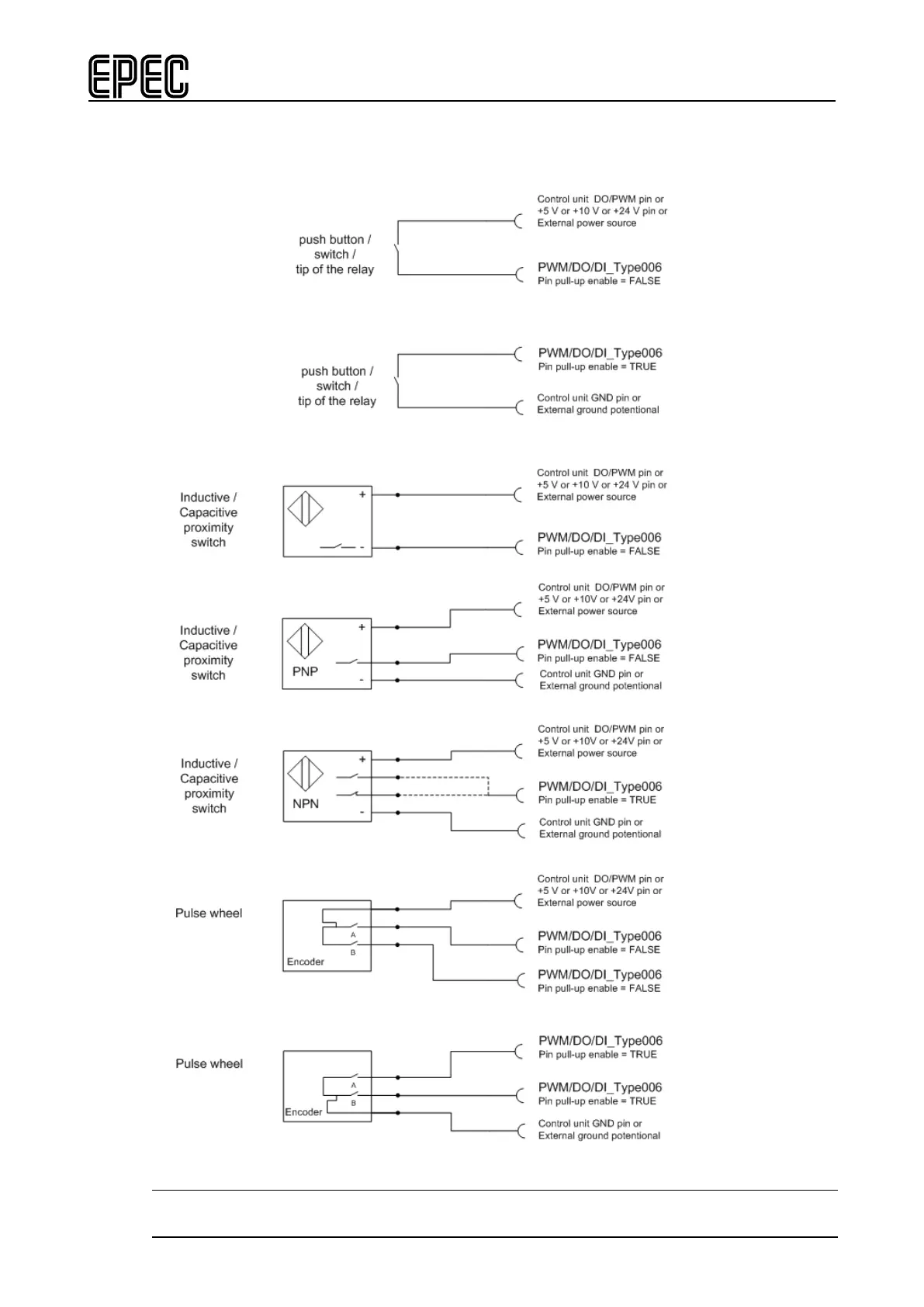

4.9.5 Connection Examples for PWM/DO/DI_Type006
The following figures show examples of how to connect external actuators when using the
PWM/DO/DI_Type006 pin:
