4.9.6 Connection Examples for PWM/DO/DI/CM_Type007

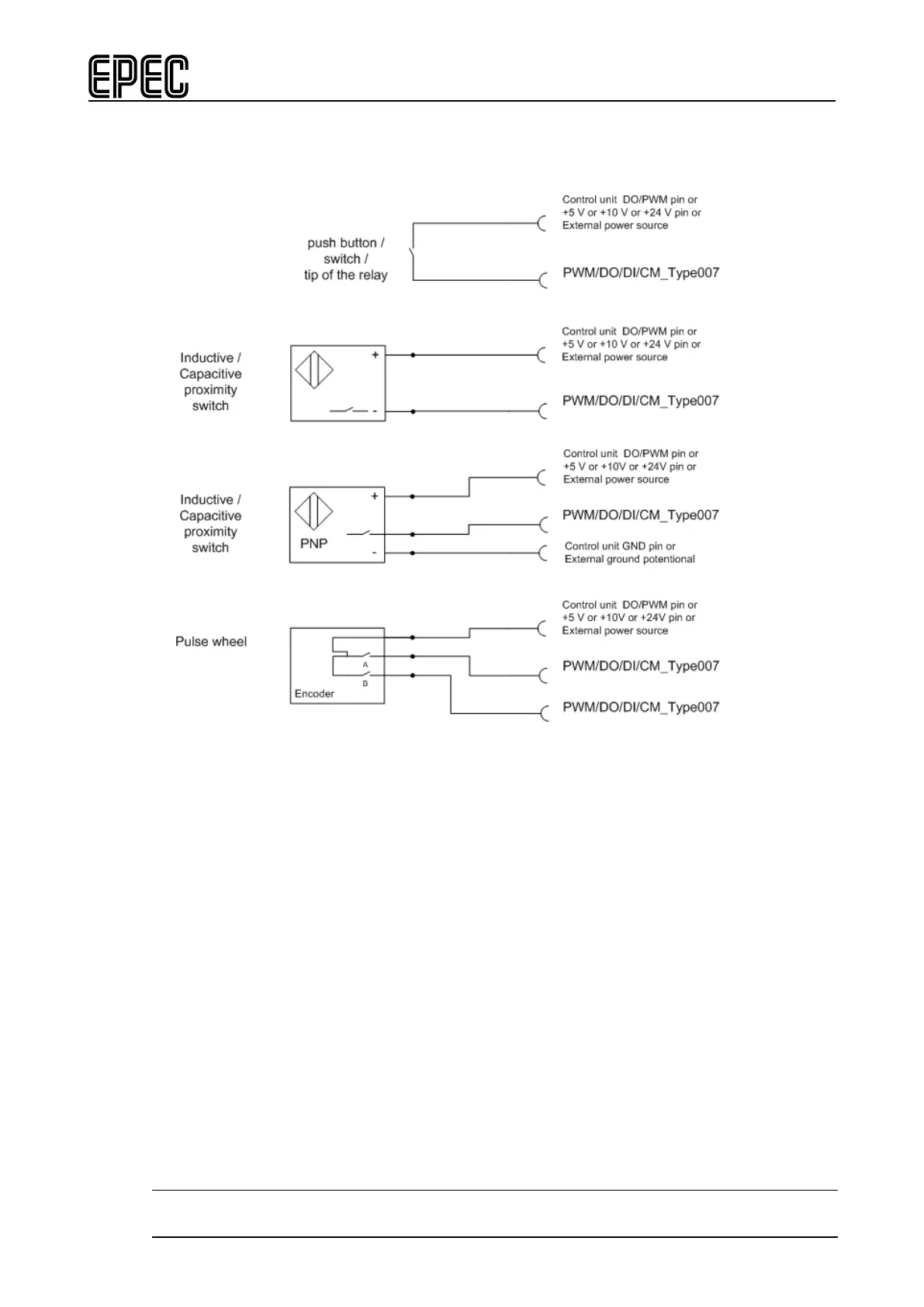

The following figures show examples of how to connect external actuators when using the
PWM/DO/DI/CM_Type007 pin:
