4.9.8 Connection Examples for AI/DI_Type011
Connection examples when using AI mode

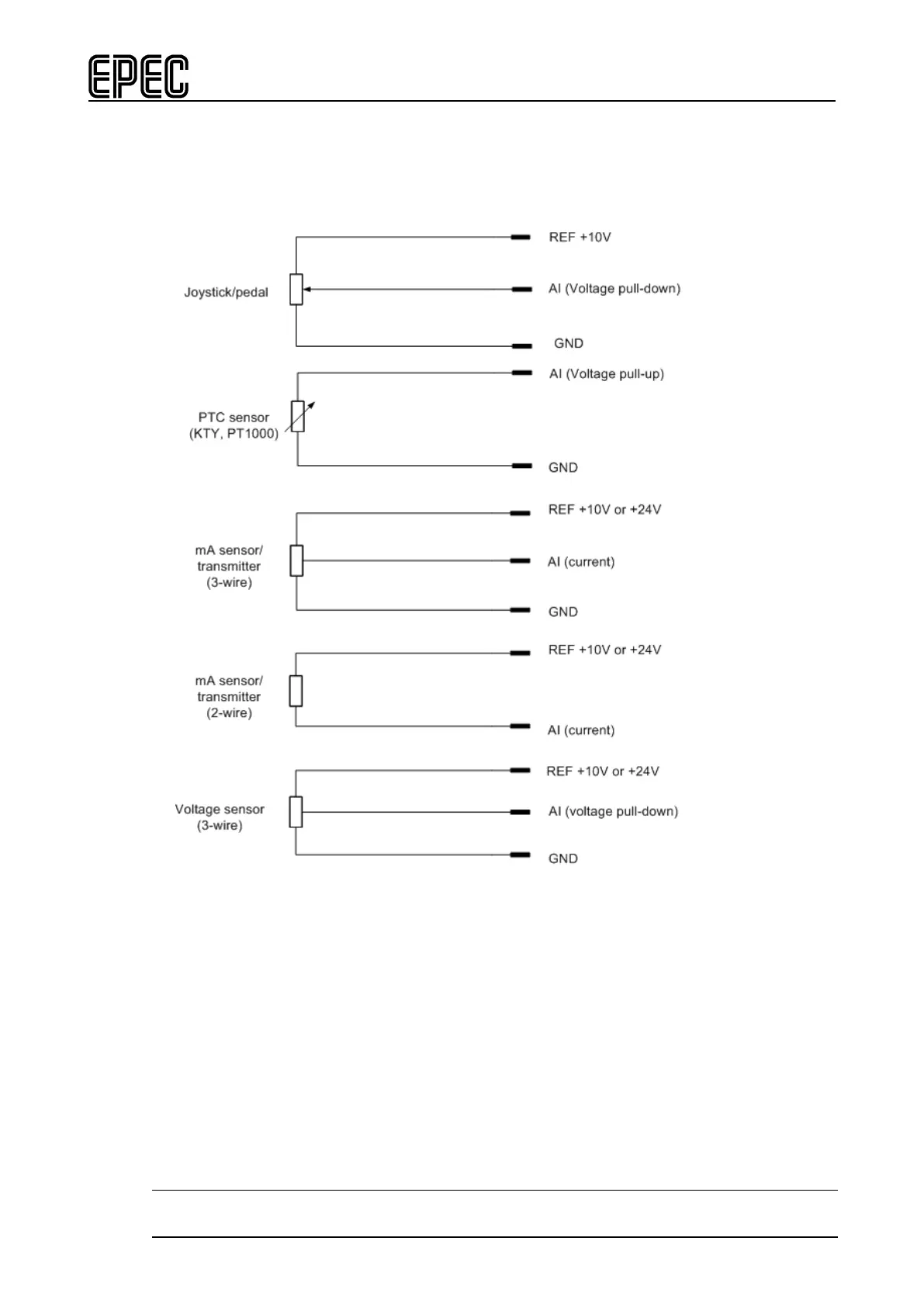

The following figures show examples of how to connect external actuators when using the pin in
AI mode:
