Epec 5050 Technical Document

Technical Manual 5050 / MAN000539 Page 76/92
Epec Oy reserves all rights for improvements without prior notice
Epec Oy Postiosoite/Postal address Puhelin/Phone Fax Internet
Tiedekatu 6 PL/P.O.Box 194 +358-(0)20-7608 111 +358-(0)20-7608 110 www.epec.fi
FIN-60320 Seinäjoki FIN-60101 Seinäjoki, Finland

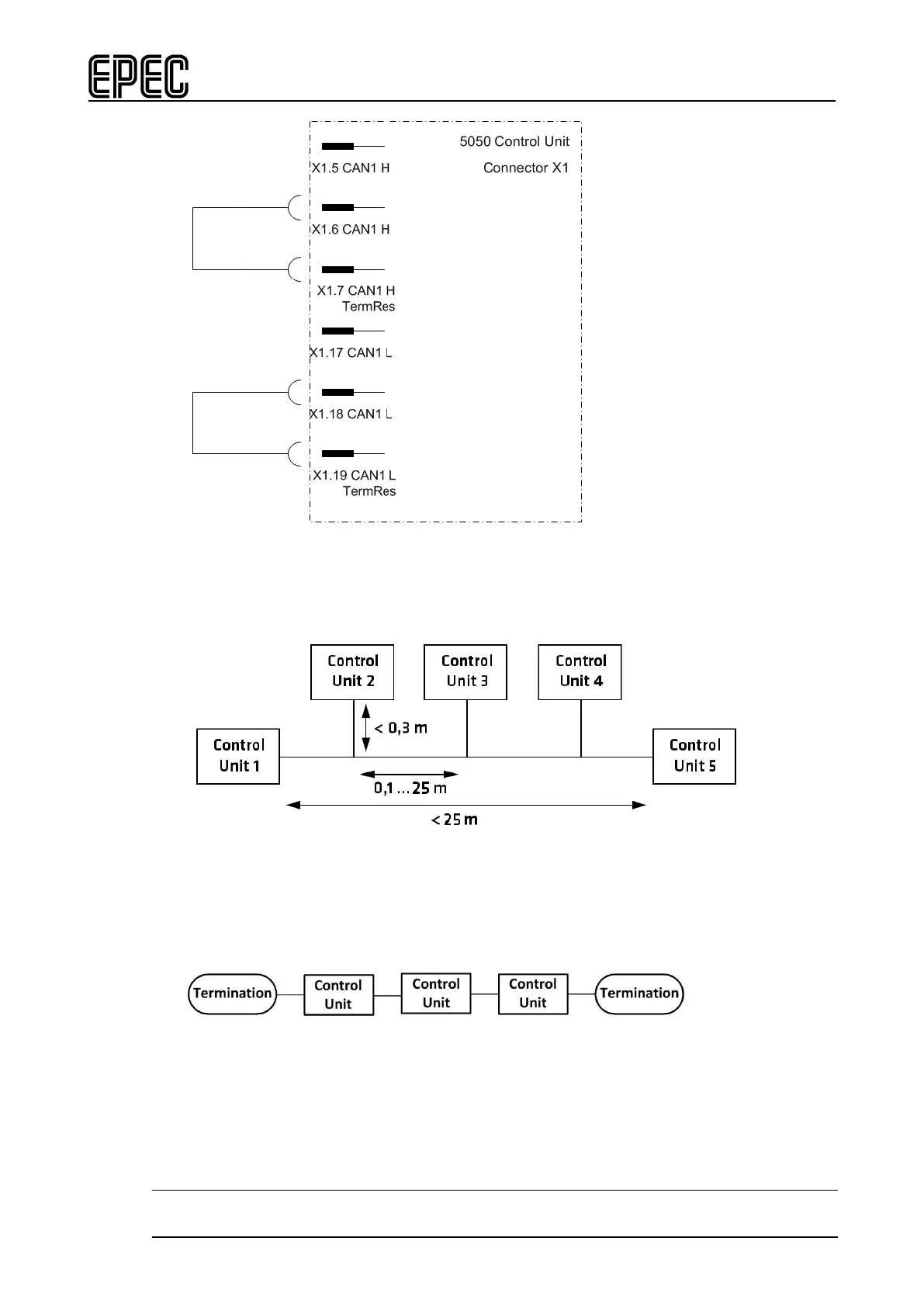

Example1. Termination resistor connection in CAN1
Example 2. Control system topology in theory with maximum bus speed (1000 kbit/s); Control
Units in traditional bus arrangement. For more information about the bus speeds, refer to CiA
DS-102 standard.
Example 3. The usage of the termination resistor (TR) in a conventional bus. The maximum
recommended bus length is directly dependent on the bus speed.
In theory, the maximum length with the maximum speed can be up to 25 meters. If the bus
speed is lower, the length can be extended.
The maximum length of the bus depends on the bus speed. For more information about the
bus speeds, see the table below / refer to CiA DS-102 standard.

Epec 5050 Specifications

General

Brand	Epec
Model	5050
Category	Control Unit
Language	English
