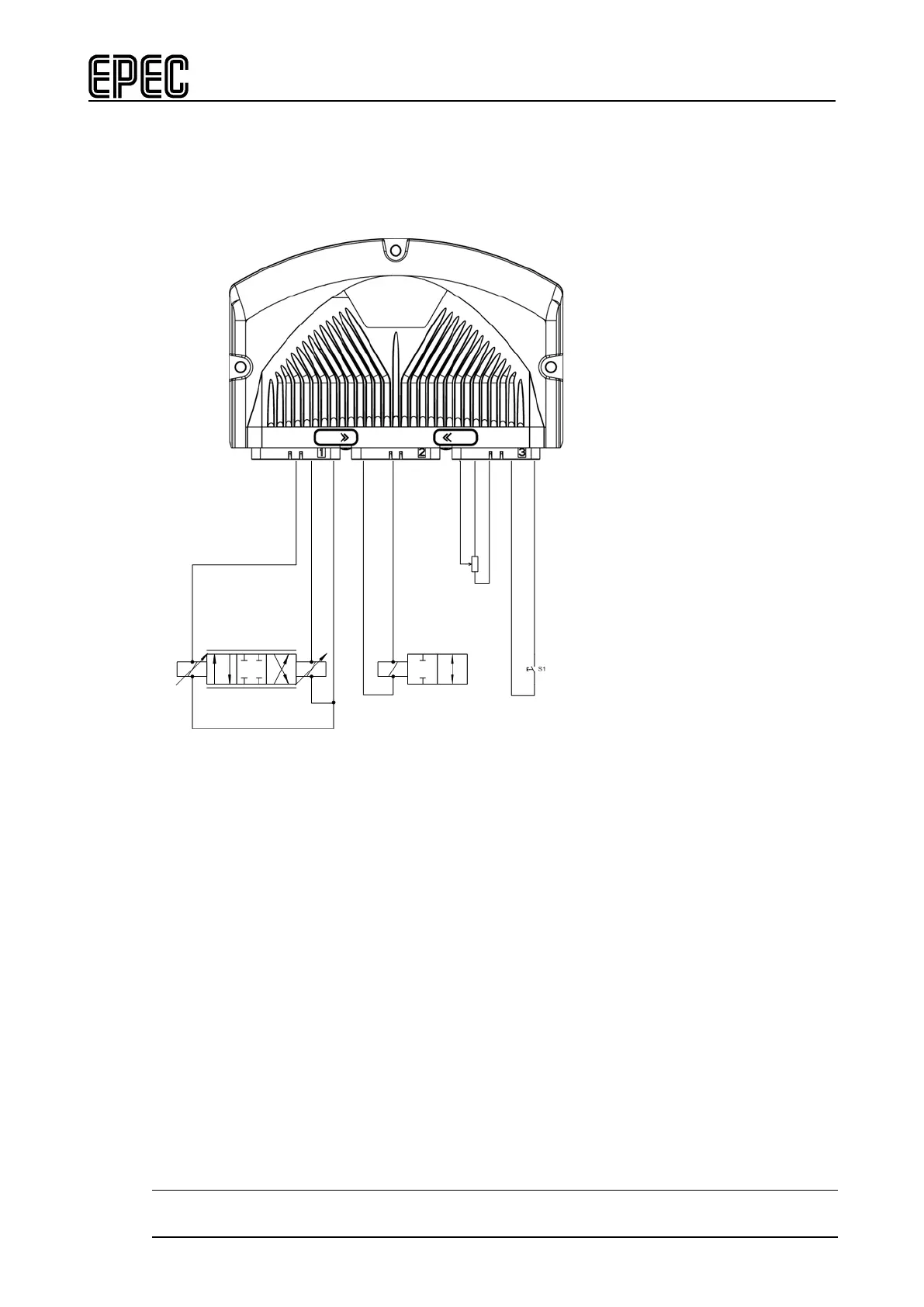

The following figure shows four different ways to connect closed circuit loop through the control
unit:
• Proportional valve (on the left)
• ON/OFF valve
• Joystick
• ON/OFF switch (on the right)
