Technical Manual 5050 / MAN000539 Page 87/92
Epec Oy reserves all rights for improvements without prior notice
Epec Oy Postiosoite/Postal address Puhelin/Phone Fax Internet
Tiedekatu 6 PL/P.O.Box 194 +358-(0)20-7608 111 +358-(0)20-7608 110 www.epec.fi
FIN-60320 Seinäjoki FIN-60101 Seinäjoki, Finland

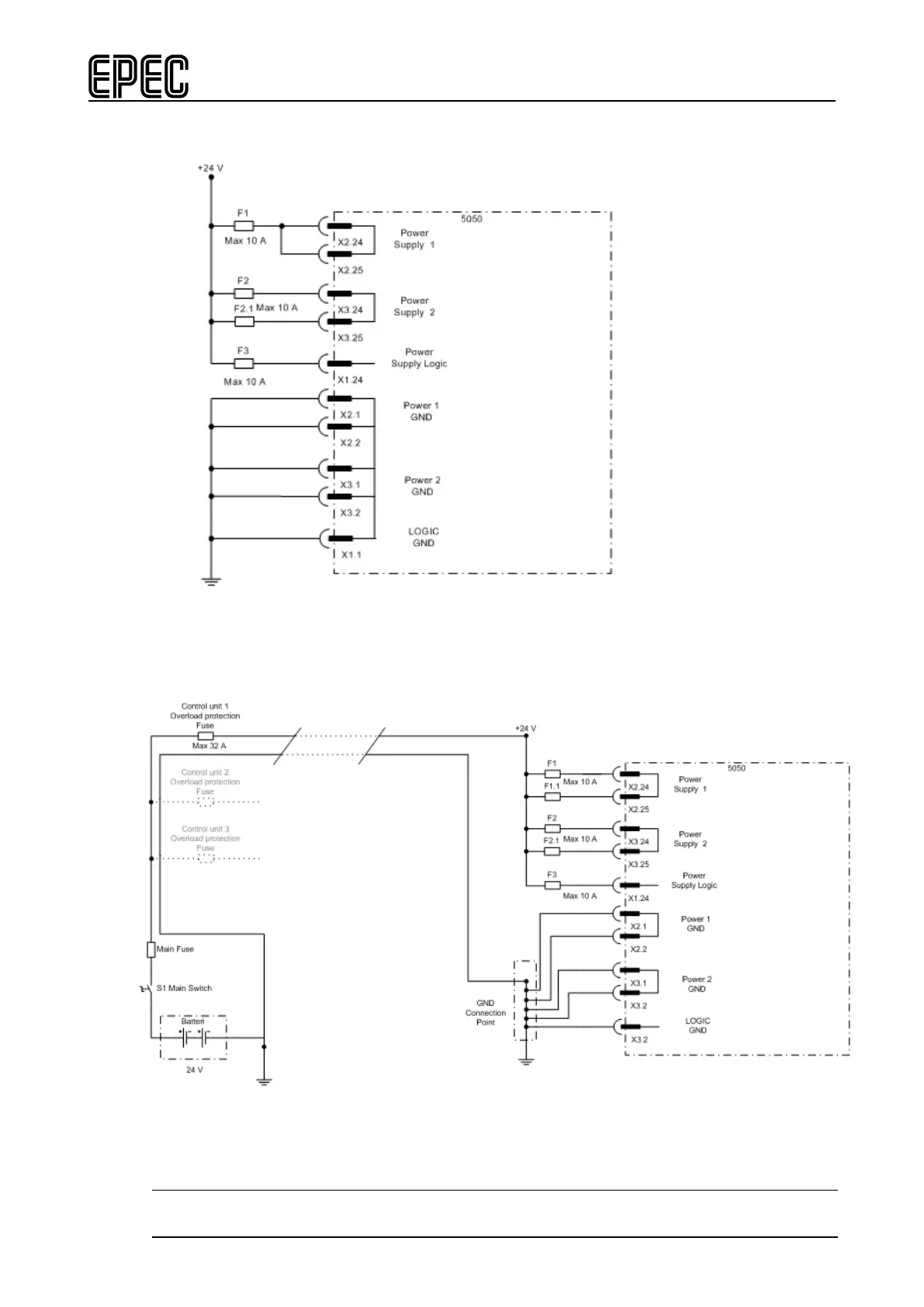

Power supply's wiring example when max 10 A is needed from Power 1 and max 14 A from
Power 2:
Power supply's wiring when using one battery:
