SmartROC T35/T40 18 Track Frames

119 No: 7026962571.1.7027002891 en-US

18.7 Replace Oil on Traction Gears for Track Frames

Precondition

The inlet plug on the traction gear is positioned at 12 o'clock.

Flush the gear with oil.

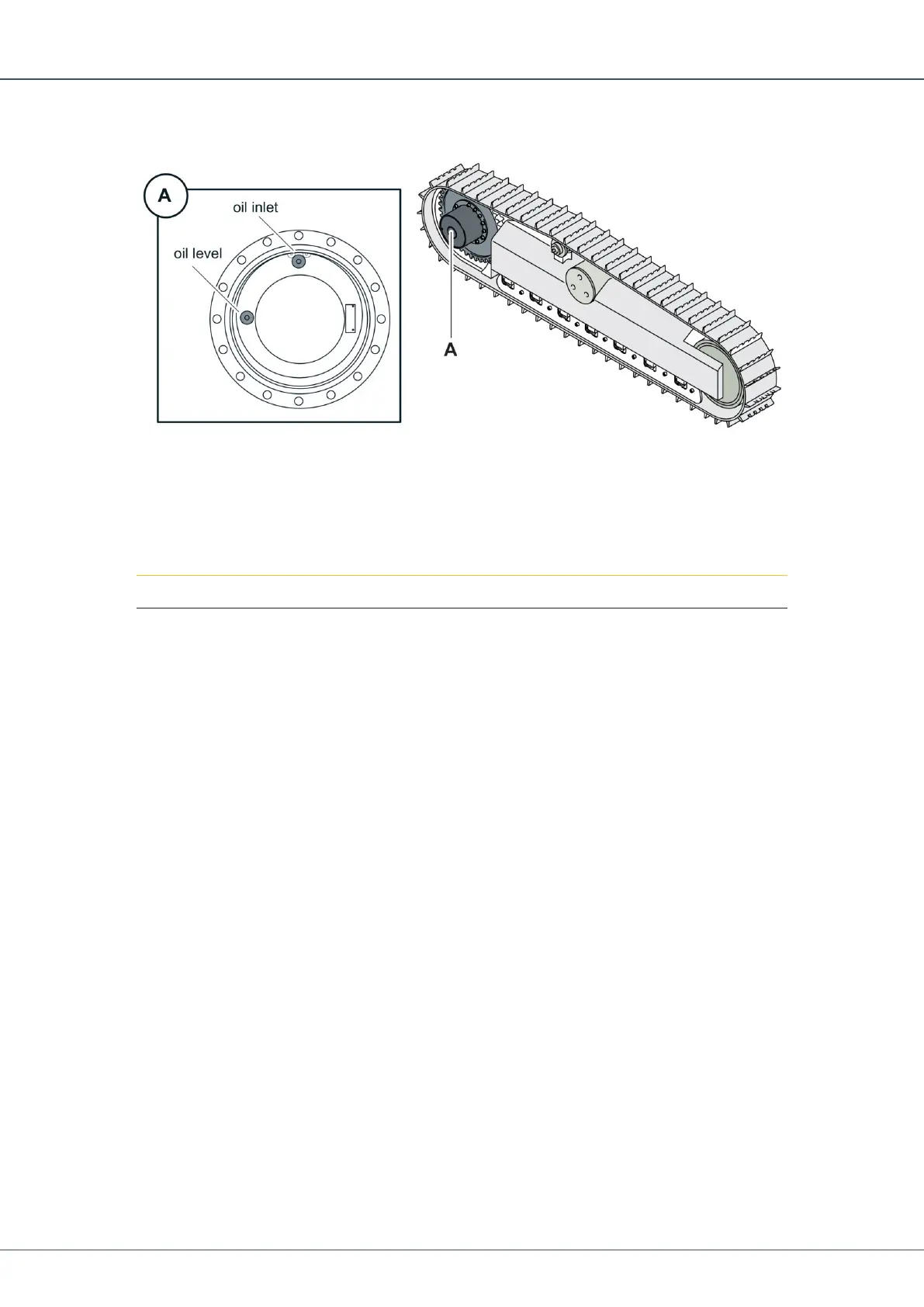

Fill the traction gear (A) with new oil until some oil drains from the oil level bore.

Traction Gear Volume

2 liters (0.5 gallon)
