SmartROC T35/T40 17 Compressed Air System
99 No: 7026962571.1.7027002891 en-US
17 Compressed Air System
17.1 Safety Precautions before Working on Pneumatic
System
WARNING
High System Pressure
There is a risk of personal injury when working with pressurized systems.
u Do not perform maintenance work while the machine is operating.
u Check that the hydraulic, water, and air systems are depressurized and that the electri-
cal system is de-energized before starting to work on these systems.
17.2 Overview Air Compressor System
The machine is installed with a single-stage screw compressor. The diesel engine drives
the machine. The compressed air from the compressor flows to an air receiver, which also
functions as an oil separator. Most the oil is removed in the air tank by centrifugal force.
The remaining oil is separated in an oil separator element in the air receiver. The sepa-
rated oil is collected in the lower section of the air receiver, which functions as an oil tank.

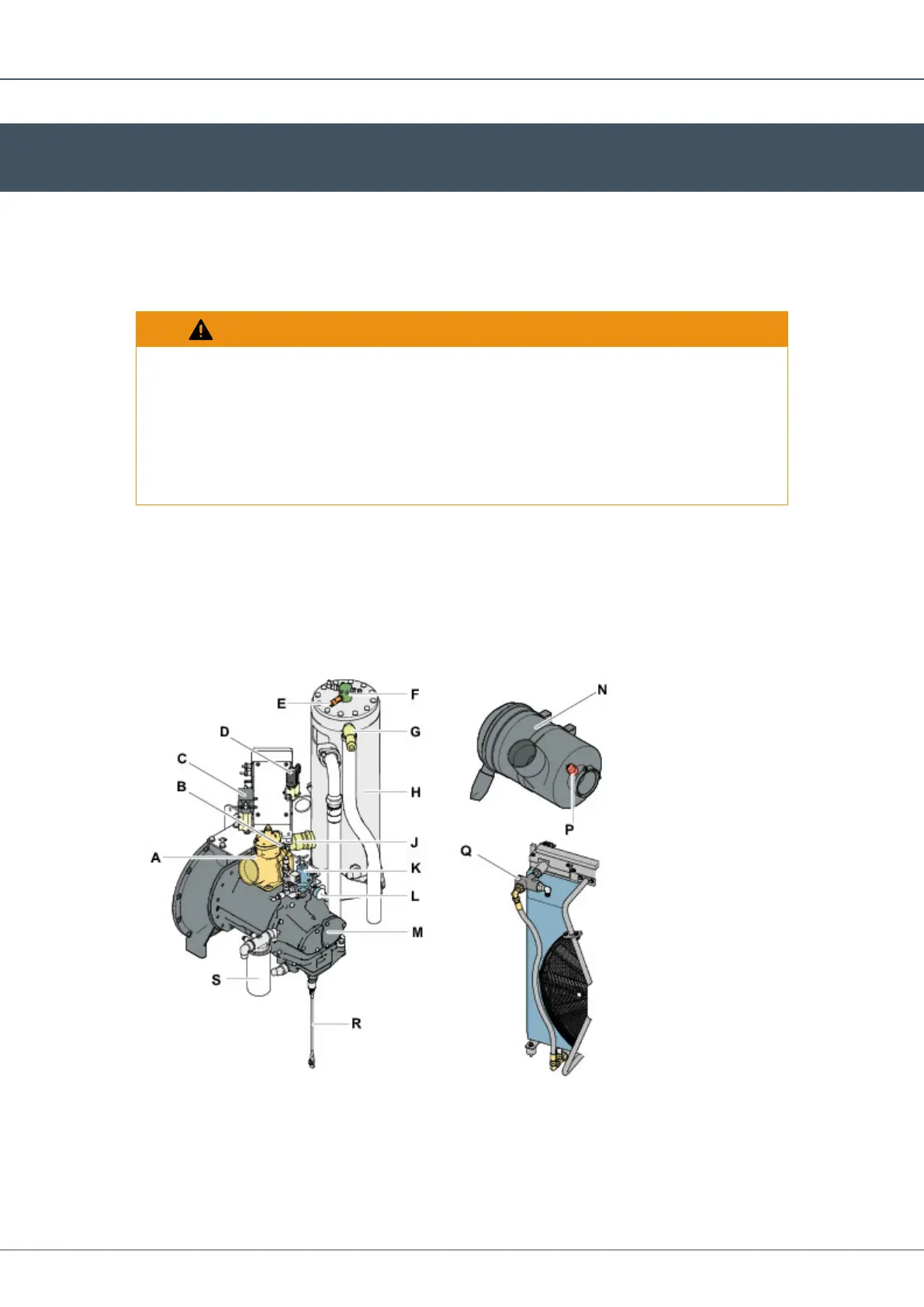

Compressor System Parts
