SmartROC T35/T40 13 Diesel Engine

81 No: 7026962571.1.7027002891 en-US

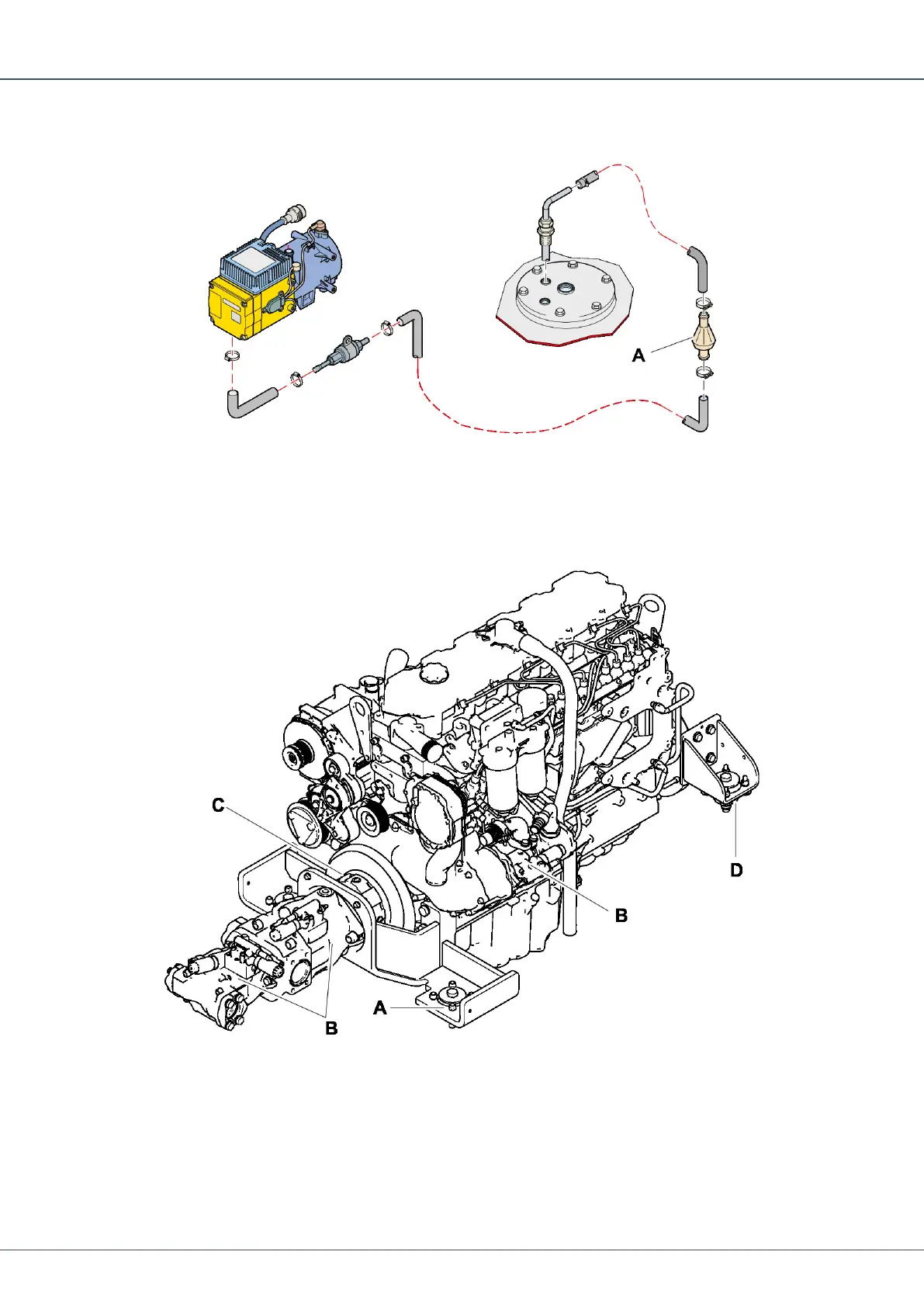

13.18 Replace Primary Fuel Filter on Engine Heater

Engine Heater

Replace primary fuel filter (A).

13.19 Check Diesel Engine Mounting

Check the tightening torque of the bolts (A) on the power frame.

Check mounting and tightening torque in hydraulic pumps (B).

Check rubber coupling (C) between diesel engine and hydraulic pump for cracks and

wear.

Check the tightening torque of the bolts (D) on engine.
