SmartROC T35/T40 13 Diesel Engine

71 No: 7026962571.1.7027002891 en-US

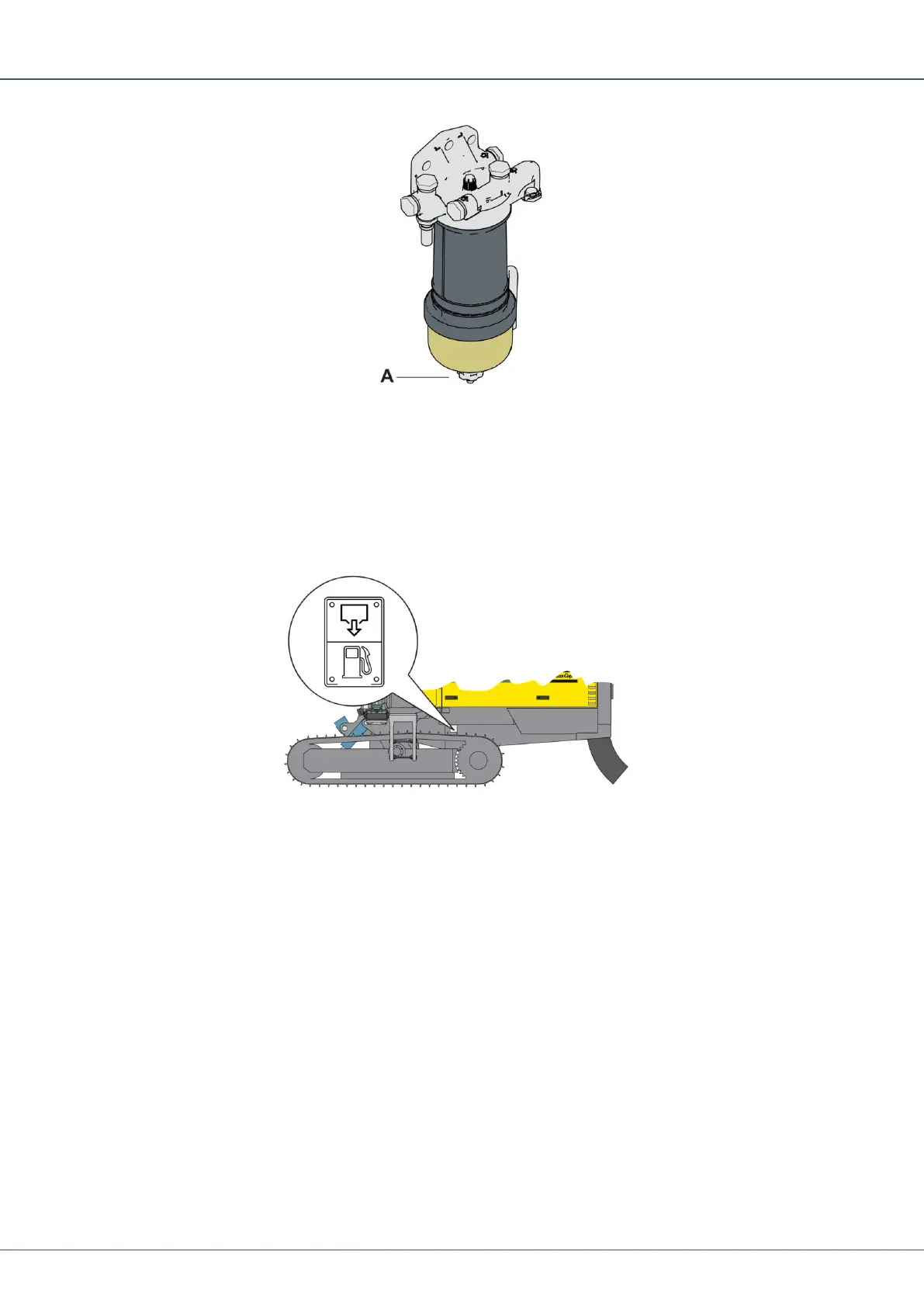

Loosen the drain plug (A).

Drain the water.

Tighten the drain plug.

13.4 Drain Water Condensation from Fuel Tank

Release the steel cover.

Open the ball valve and allow the water to drain.

Close the ball valve.

Tighten the steel cover.

Default Chapter3
