SmartROC T35/T40 9 Feed Unit
38 No: 7026962571.1.7027002891 en-US
9.6.1 Replacing Slide Pieces in the Holder
WARNING
Disassembling and Assembling Components
Can cause personal injury.
u Components that could move or fall down must be securely supported or strapped in
place during service and maintenance work.
WARNING
Heavy Objects
Can cause crushing injury or death.
u Do not stand under the heavy object being lifted.
u Use adequate lifting equipment.
WARNING
Moving Parts
Can cause personal injury.
u Shut off the machine and lock the battery isolation switch before starting any work.
u Make sure that the hydraulic pump is off and that the system is depressurized before
starting work.
If the wear allowance for any of the slide pieces is less than 1 mm, replace all the slide
pieces.
1.

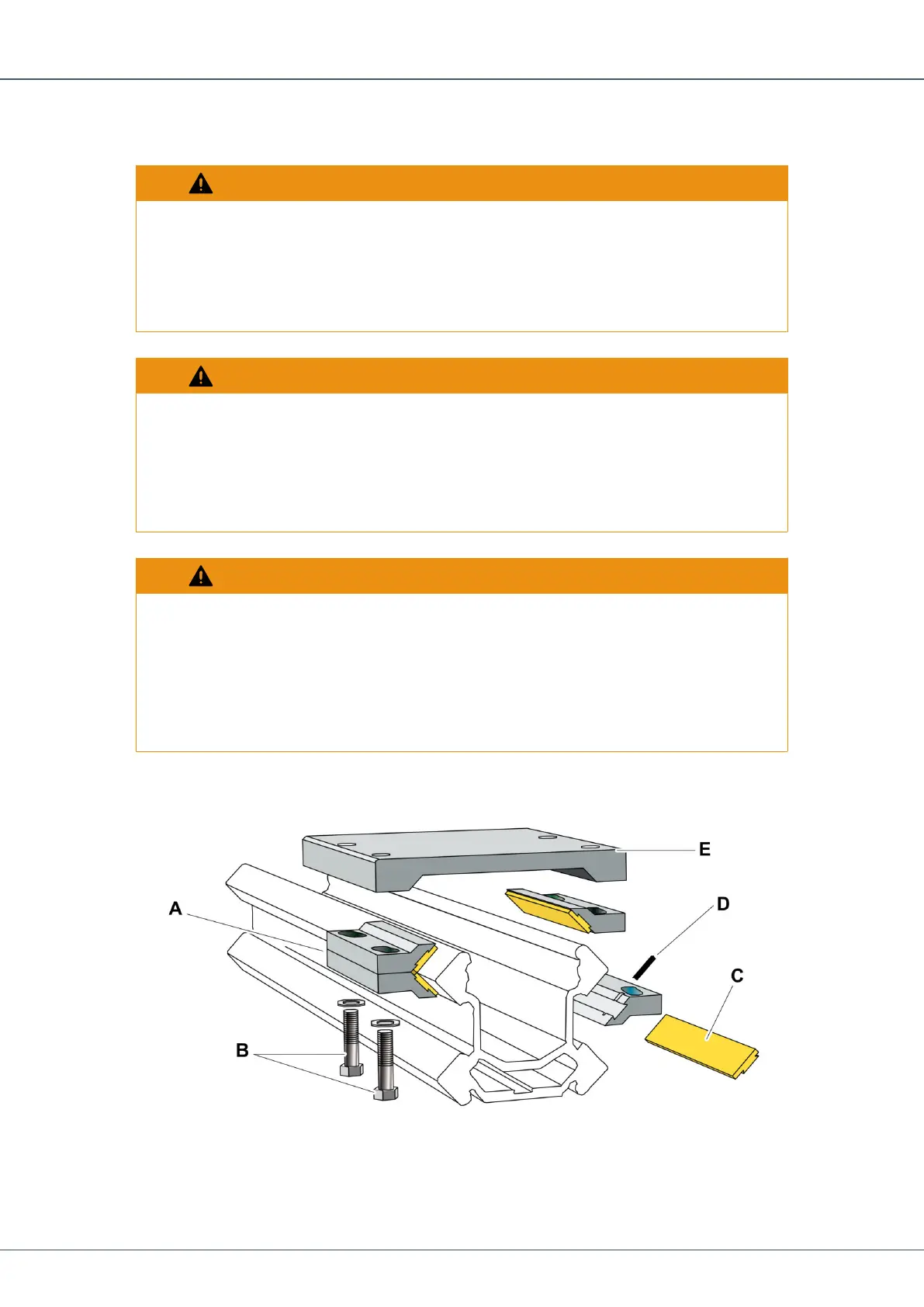

Remove the bolts (B) to remove the holder (A) from the cradle (E).
2.
Remove the keys (D).
Each slide piece is kept in place by three keys.
