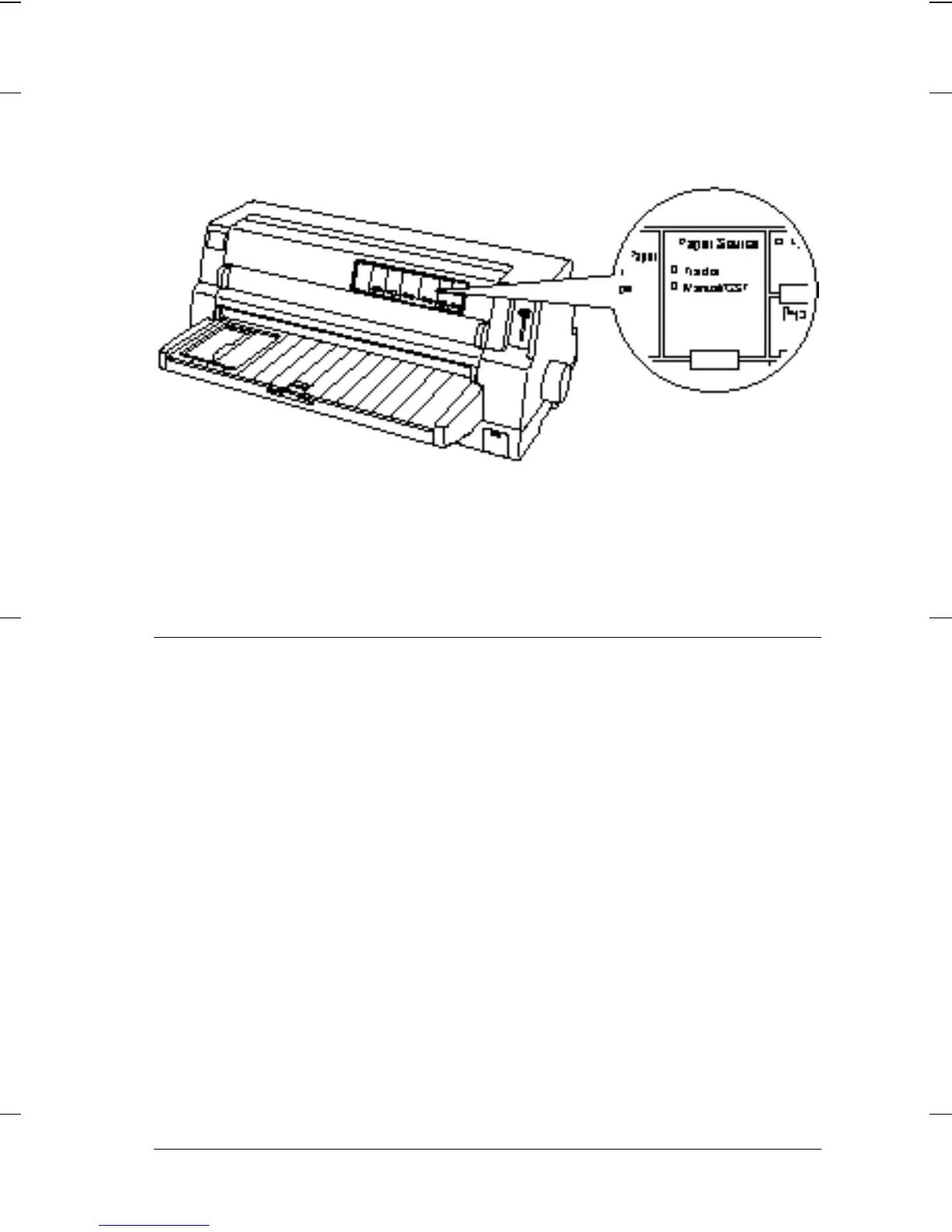

3. Select Tractor as the paper source on the control panel by
pressing the Paper Source button.
The printer automatically advances the continuous paper from
the standby position to the loading position when it receives data.
Using the Micro Adjust Function
The Micro Adjust function allows you to move the paper
forward or backward in 0.141 mm (1/180-inch) increments so
that you can make precise adjustments to the top-of-form and
tear-off positions.
Adjusting the tear-off position
If your paper perforation is not aligned with the tear-off edge, you
can use the Micro Adjust function to move the perforation to the
tear-off position.
Follow these steps to adjust the tear-off position:

Epson DLQ-3500 Specifications

General

Color	No
Character pitch	10, 12 cpi
Maximum resolution	360 x 180 DPI
Maximum number of copies	8 copies
Maximum print speed (LQ)	165 cps
Maximum print speed (draft)	594 cps
Maximum printing width (columns)	136
Needles	24
Print technology	Dot matrix
Connectivity technology	Wired
Print direction	Bi-directional
Ribbon life (black, LQ)	6 million characters
Ribbon life (black, draft)	9 million characters
Mean time between failures (MTBF)	10000 h
Standard interfaces	Parallel, USB 2.0
Optional connectivity	Ethernet, Serial (RS-232)
Product color	Gray
Country of origin	Indonesia
Page description languages	Epson ESC/P2, IBM 2390, PPDS
Sound pressure level (printing)	59 dB
Power consumption (standby)	8 W
Power consumption (typical)	89 W
Paper tray media types	Envelopes, Labels, Plain paper, Roll
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %
Bundled software	Epson Status Monitor
Windows operating systems supported	Windows 2000, Windows 7, Windows 8, Windows 98, Windows XP
Pallet width	1200 mm
Pallet height	1000 mm
Pallet height (UK)	2425 mm
Quantity per pallet	10 pc(s)
Quantity per pallet layer	2 pc(s)
Package depth	770 mm
Package width	390 mm
Package height	490 mm
Package weight	22.22 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	432 mm
Width	660 mm
Height	276 mm
