A
Output slot Ejects scanned originals.
B
Card slot Loads plastic cards. When you insert a plastic card a little way into the card
slot, the card is automatically moved to the starting position.
C
Feed selector Sets the feed selector to scan plastic cards or other originals.
ADF (scan) Scans originals using the ADF
Card (scan) Scans plastic cards using the
card slot
D
Edge guides Feeds originals straight into the scanner. Slide to the edges of the originals.
E
Input tray extension Loads originals. Pull out the tray extension if originals are too big for the
input tray. This prevents paper from curling and causing paper jams.
Do not load a plastic card in the input tray. Insert it into the card slot.
F
Input tray
G
ADF (Automatic Document
Feeder)
Feeds loaded originals automatically
H
Connection mode switch Selects the interface to connect to the scanner. To set the interface, turn o
the scanner, set the connection mode switch, and then turn on the scanner.
USB mode Connects with a USB cable
Wi-Fi mode Makes Wi-Fi settings through the
access point
AP mode Makes Wi-Fi settings in AP mode
without the access point
Back

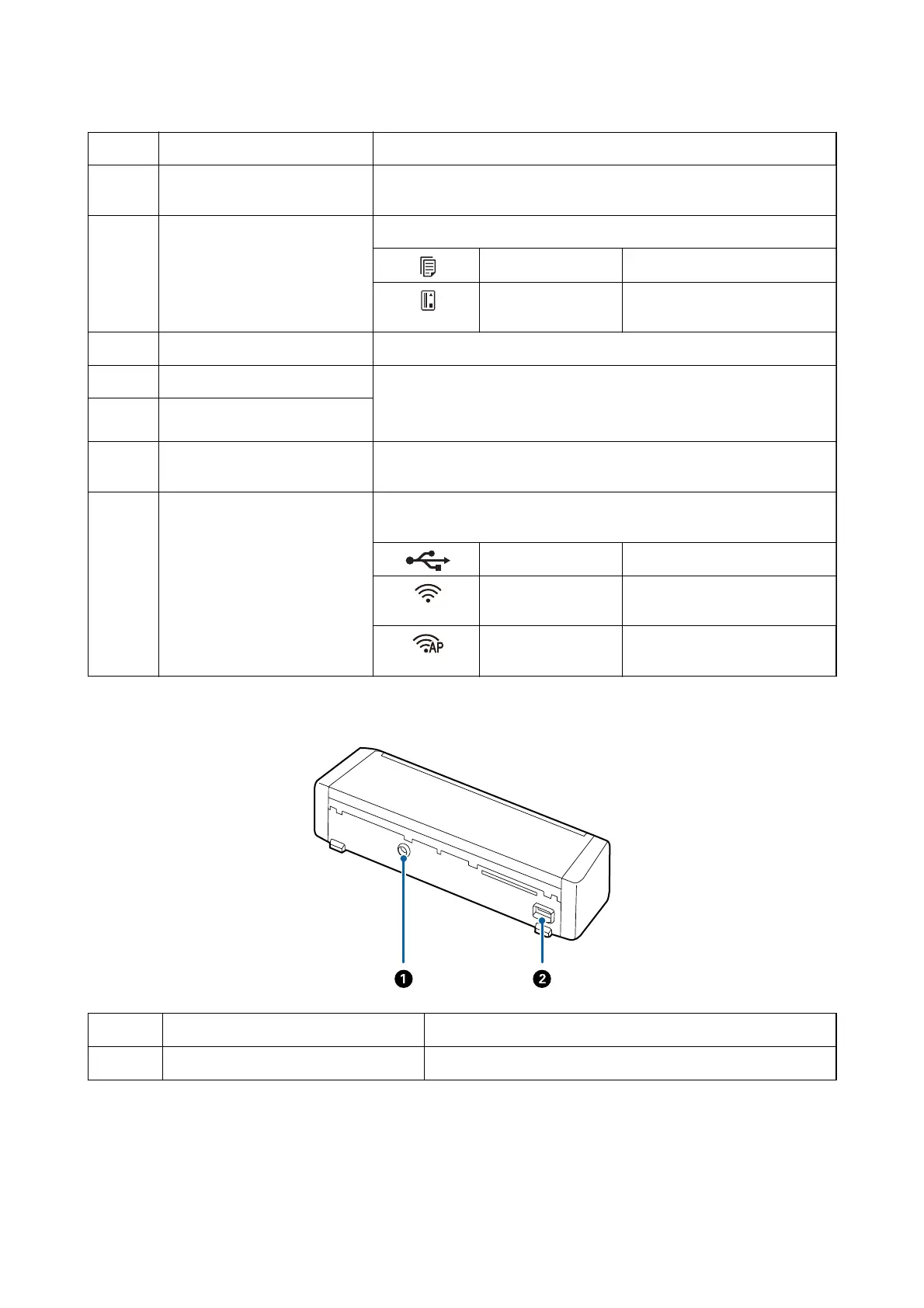

A
DC inlet Connects the AC adapter.
B
USB port Connects a USB cable.
User's Guide
Scanner Basics
13
