Name Function
G
Audio port
Connects an audio cable to output audio from the
projector's speakers.
H
Remote receiver
Receives signals from the remote control.
s "Remote control operating range" p.17
I
Lamp Cover Fixing
Screw
Screw to fix the lamp cover in place.
J
Security slot
The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
s "Anti-Theft Lock" p.65

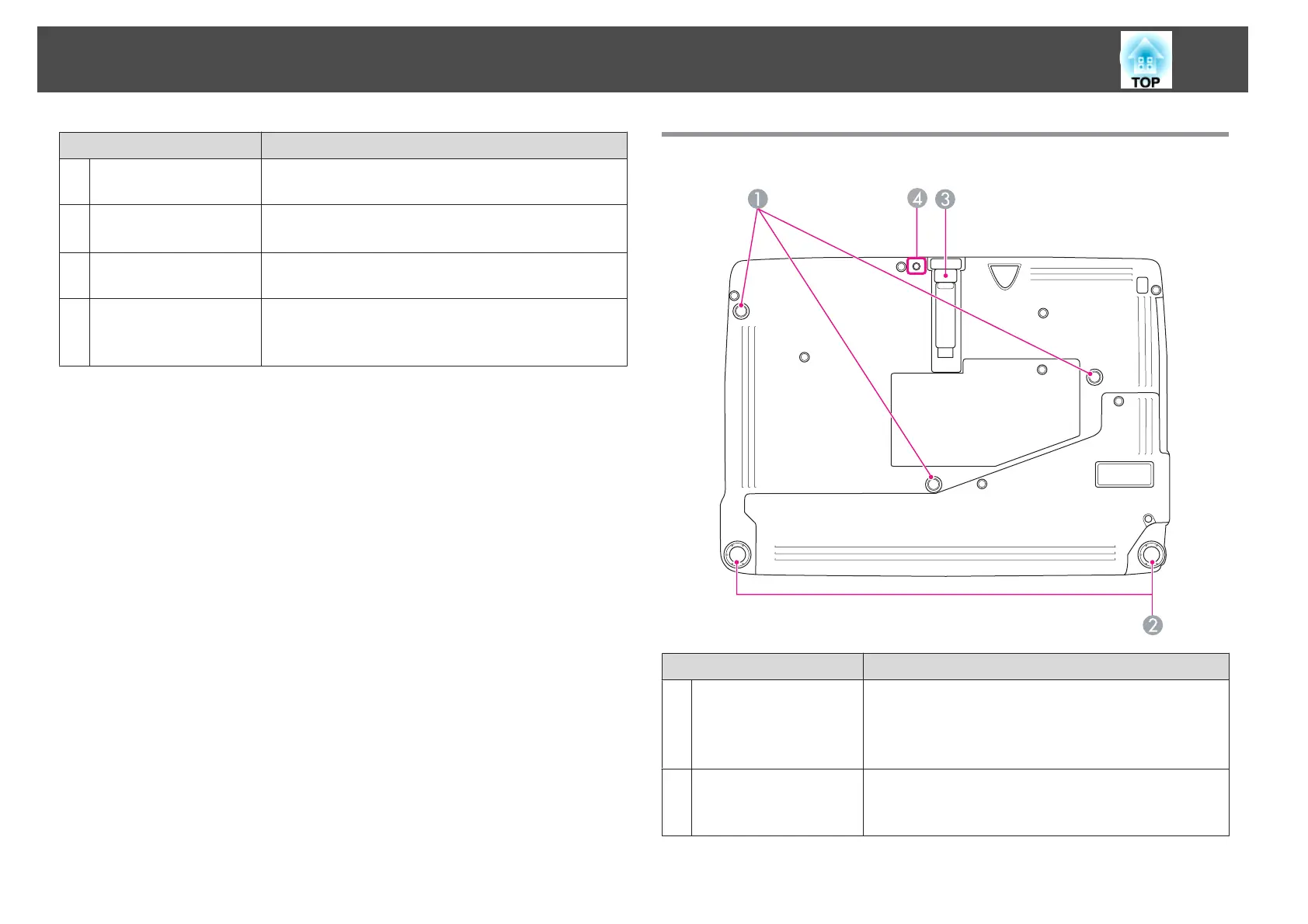

Base
Name Function
A
Ceiling mount fixing
points (three points)
Attach the optional attachment plate here when
suspending the projector from a ceiling.
s "Installing the Projector" p.19
s "Optional Accessories" p.110
B
Rear feet
When setup on a surface such as a desk, turn to extend and
retract to adjust the horizontal tilt.
s "Adjusting the Horizontal Tilt" p.37
Part Names and Functions
12
