Name Function
C
Front adjustable foot
When setup on a surface such as a desk, extend the foot to
adjust the position of the image.
s "Adjusting the Image Position" p.37
D
Screw hole for the
wireless LAN unit
cover
(EB-1775W/EB-1770W/
EB-1760W only)
Screw hole to fix the wireless LAN unit cover.

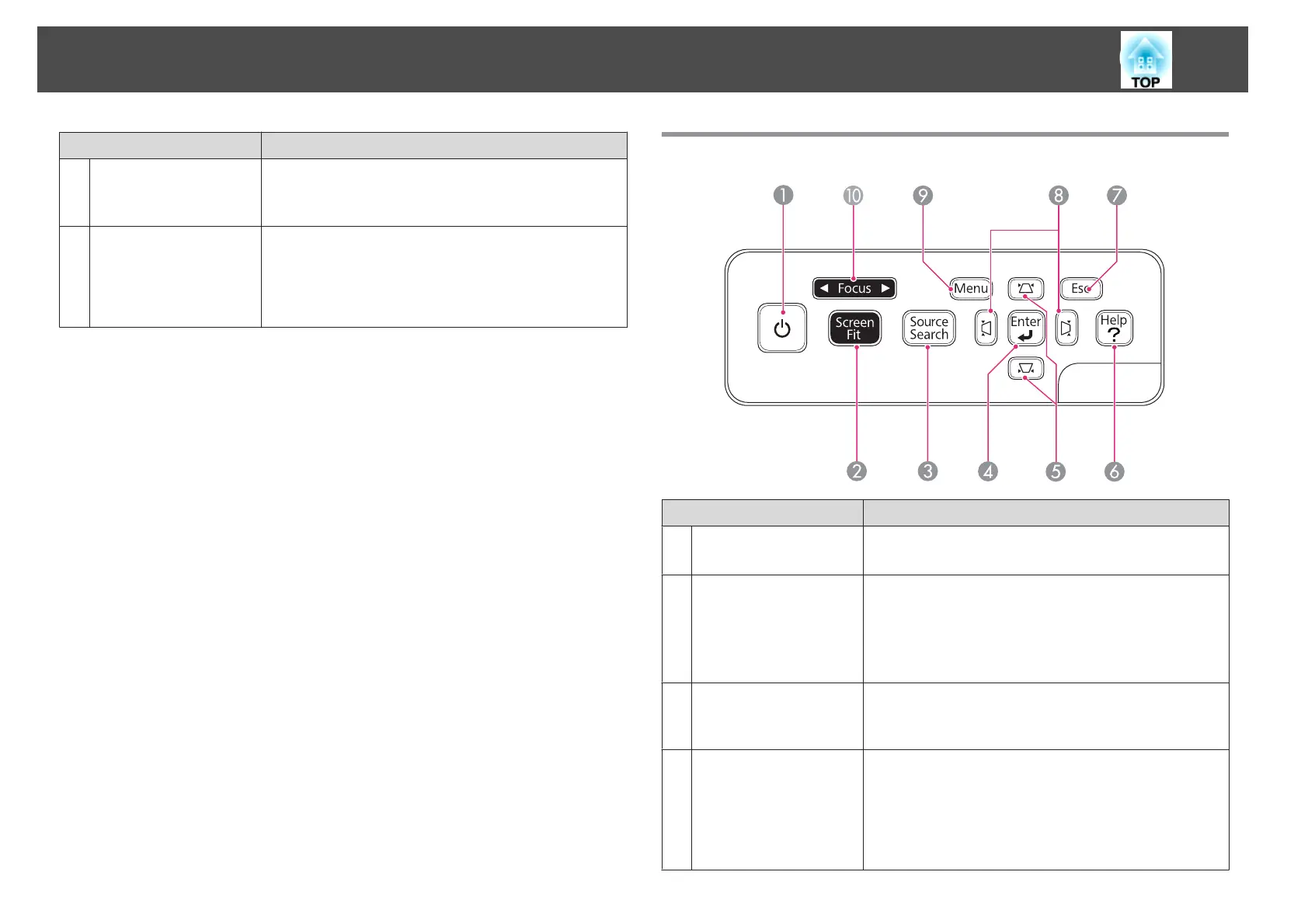

Control Panel
Name Function
A
[t] button
Turns the projector power on or off.
s "From Installation to Projection" p.26
B
[Screen Fit] button
(EB-1775W only)
Adjusts the projected image so that it fits the screen frame.
s "Automatically Adjust to Fit the Screen Frame - Screen
Fit - (EB-1775W only)" p.31
This button is disabled when the projector is suspended
from a ceiling.
C
[Source Search]
button
Changes to the next input source that is sending an image.
s "Automatically Detect Input Signals and Change the
Projected Image (Source Search)" p.27
D
[Enter] button
• When the Configuration menu or the Help screen is
displayed, it accepts and enters the current selection and
moves to the next level.
• If pressed during projection of computer signal images,
it automatically adjusts the Tracking, Sync., and
Position to project the optimum image.
