Installation Guide
11
Projection Distance Table

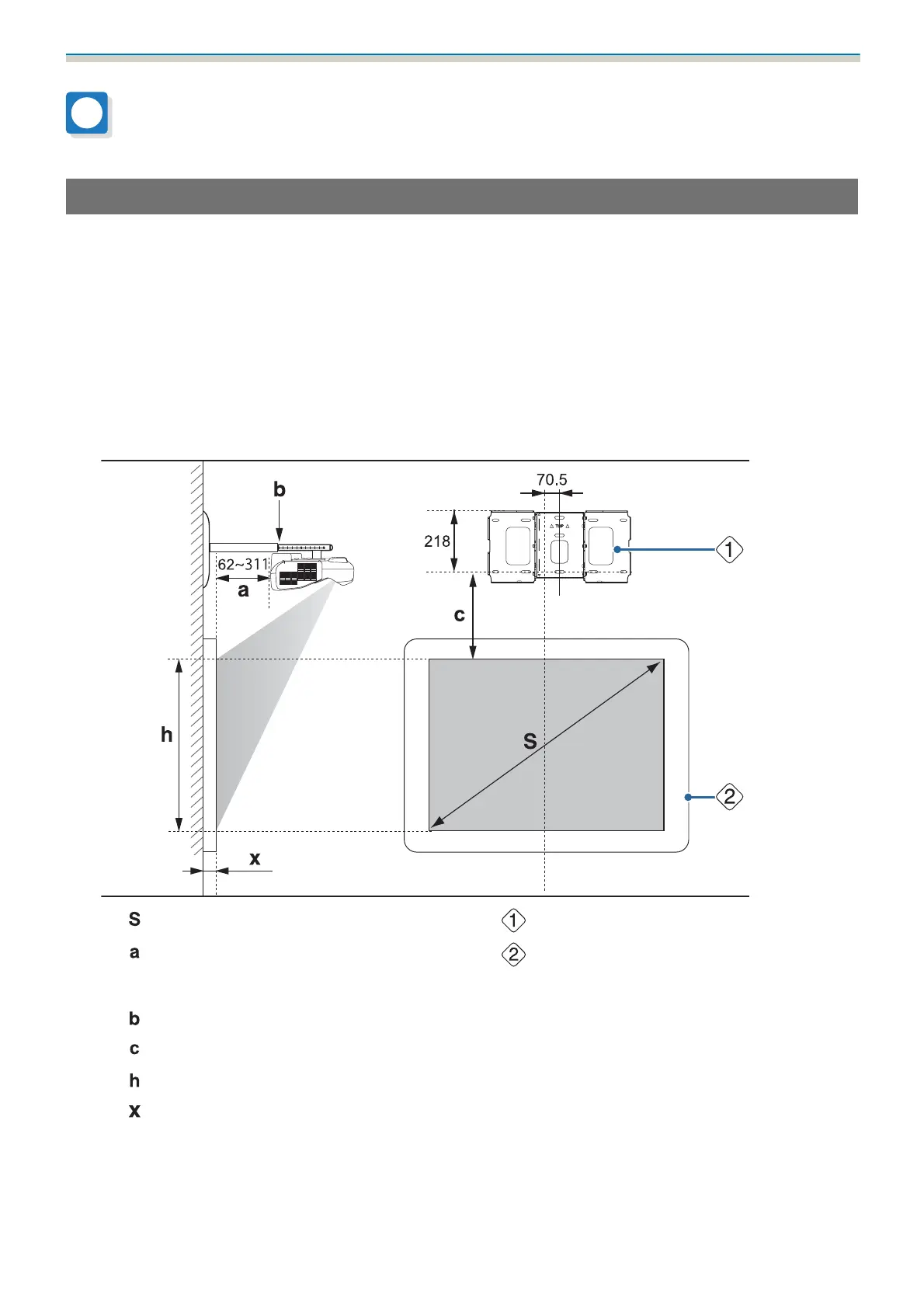

Figures of Installation Dimensions
To find the appropriate screen size, see the following figures when installing. The values are only rough
estimates.
The recommended range for the projection distance (a) is 62 to 311 mm.
The offset value for the position of the center of the projected image and the center of the wall plate is 70.5
mm.
When the projected image size (S) is 75 inches or more, the scale on the arm slide (b) is equal to the projection
distance (a).
The numbers for (a) and (b) differ if the projected image size (S) is less than 75 inches.
[Unit: mm]
:
Projected image size
:
Wall plate
:
Minimum projection distance (Wide: maxi‐
mum zoom)
to maximum (Tele: minimum zoom)
:
Screen
:
Numbers on the arm slide scale
:
Distance from projected image to wall plate
:
Height of projected image
:
Distance from surface of screen to wall (100
mm or less)
Aspect ratio for standard projected image (EB-585Wi/585W/575Wi/575W)
To Next Page
