Installation Guide
29
Install the wall plate on the wall
a

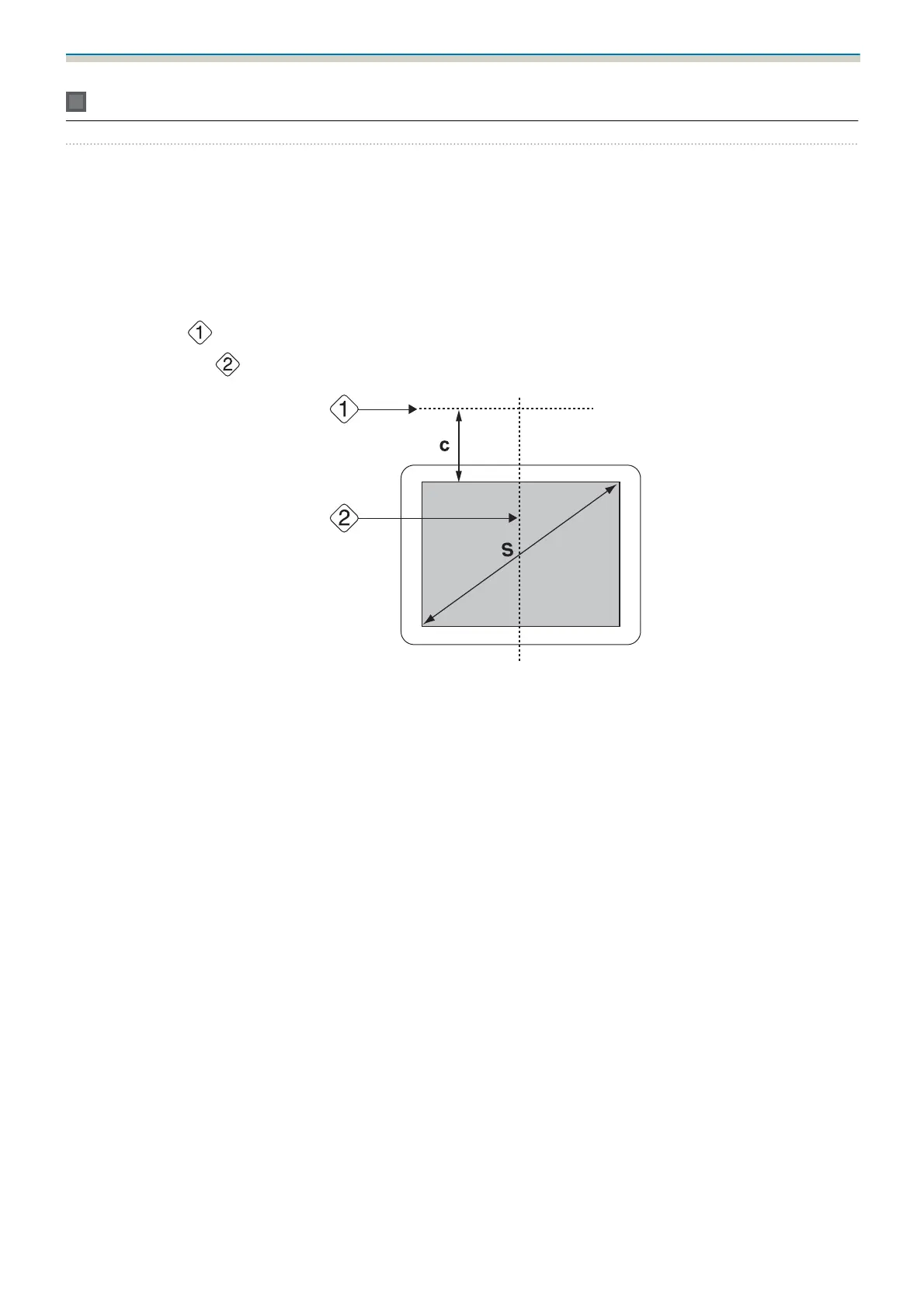

Determine the projection position based on the projected image size
See the projection distance table to calculate the projected image size (S) and the distance (c) from
the projected image to the wall plate.
s
"Projection Distance Table" p.11
We recommend marking the following positions. These will be the basis for determining the mounting
position of the wall plate.
•
Height ( ) of the distance (c) between the top edge of the projected image and the wall plate
•
Center line ( ) of the projected image
To Next Page
