Installation Guide
20

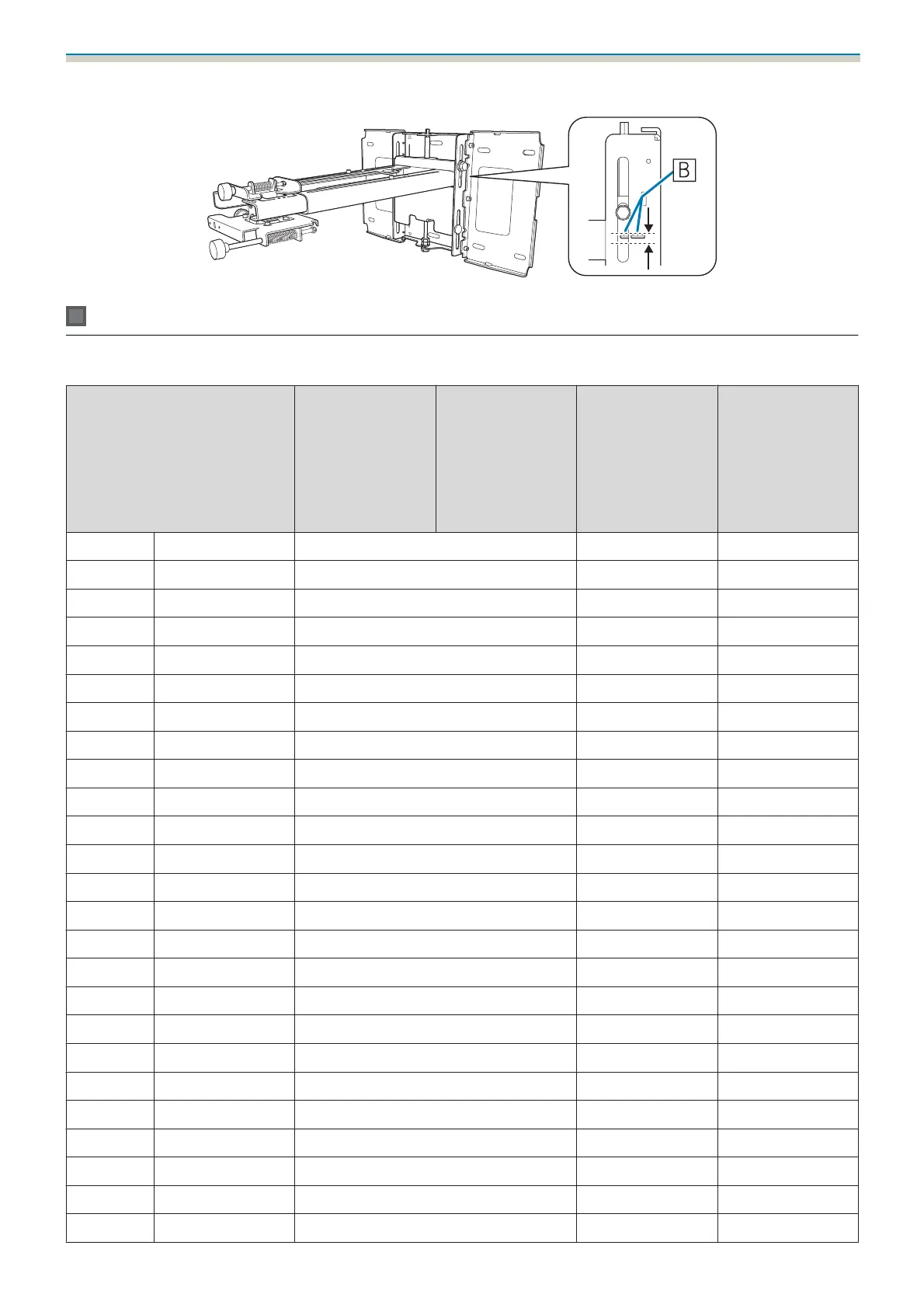

Match the notch on the setting plate to the position of the stamp on the wall plate.
EB-585Wi/585W/575Wi/575W (16:10 projected image)
[Unit: cm]
S
Projected image size
a
Projection Dis‐
tance
Minimum (Wide)
to Maximum
(Tele)
b
Numbers on the
arm slide scale
c
Distance from
projected image
to wall plate
h
Height of projec‐
ted image
75" 161.5x101.0 15.5 - 31.1 21.4 101.0
76" 163.7x102.3 16.2 - 31.1 21.7 102.3
77" 165.9x103.7 16.8 - 31.1 21.9 103.7
78" 168.0x105.0 17.4 - 31.1 22.2 105.0
79" 170.2x106.3 18.0 - 31.1 22.5 106.3
80" 172.3x107.7 18.7 - 31.1 22.7 107.7
81" 174.5x109.0 19.3 - 31.1 23.0 109.0
82" 176.6x110.4 19.9 - 31.1 23.3 110.4
83" 178.8x111.7 20.5 - 31.1 23.5 111.7
84" 180.9x113.1 21.1 - 31.1 23.8 113.1
85" 183.1x114.4 21.8 - 31.1 24.1 114.4
86" 185.2x115.8 22.4 - 31.1 24.3 115.8
87" 187.4x117.1 23.0 - 31.1 24.6 117.1
88" 189.5x118.5 23.6 - 31.1 24.9 118.5
89" 191.7x119.8 24.2 - 31.1 25.2 119.8
90" 193.9x121.2 24.9 - 31.1 25.4 121.2
91" 196.0x122.5 25.5 - 31.1 25.7 122.5
92" 198.2x123.9 26.1 - 31.1 26.0 123.9
93" 200.3x125.2 26.7 - 31.1 26.2 125.2
94" 202.5x126.5 27.3 - 31.1 26.5 126.5
95" 204.6x127.9 28.0 - 31.1 26.8 127.9
96" 206.8x129.2 28.6 - 31.1 27.0 129.2
97" 208.9x130.6 29.2 - 31.1 27.3 130.6
98" 211.1x131.9 29.8 - 31.1 27.6 131.9
99" 213.2x133.3 30.4 - 31.1 27.8 133.3
