Loosen the M6 bolt (x1) with the open-ended spanner, and then adjust the vertical slide

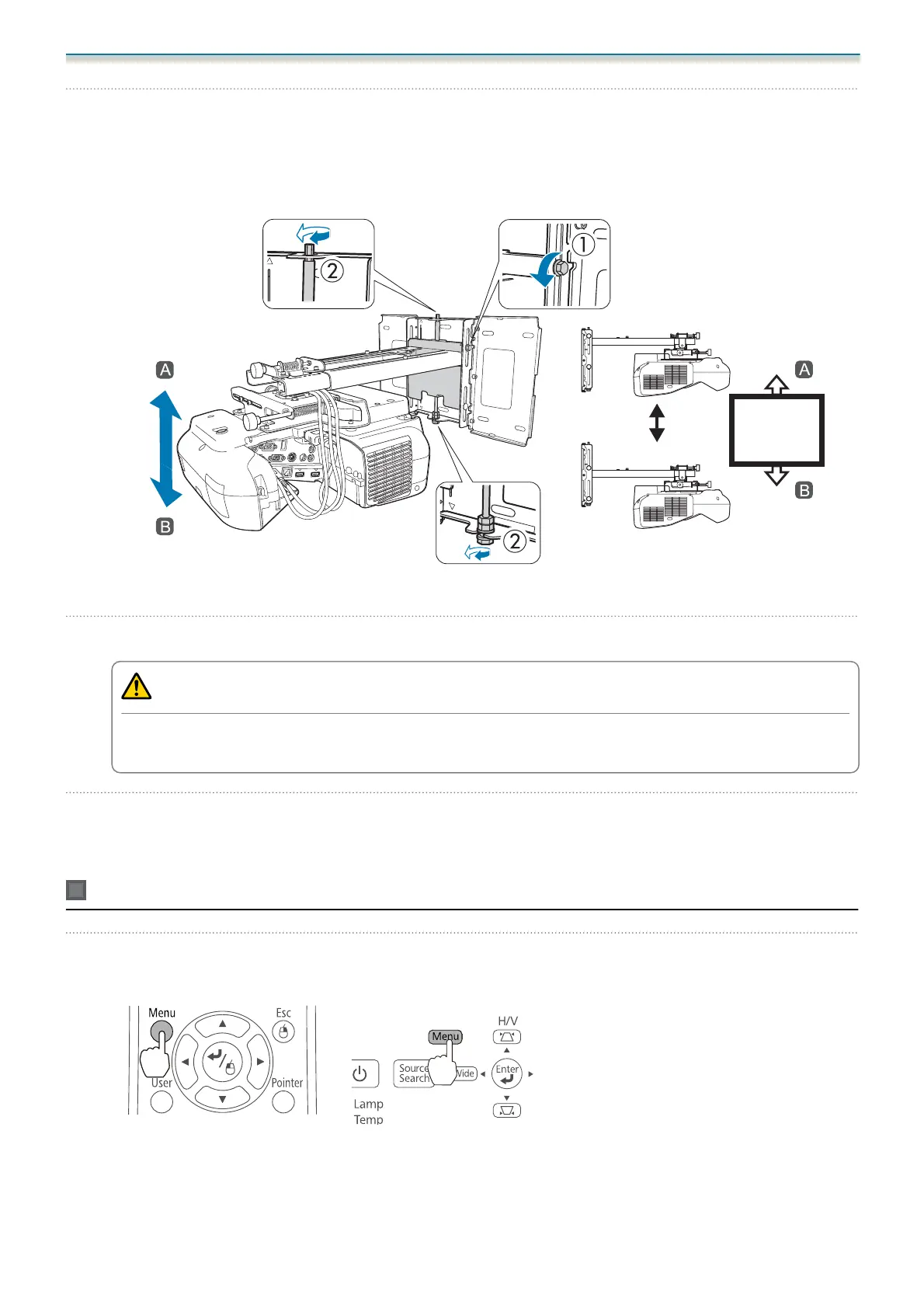

Adjust the vertical slide with the hexagonal axis at the top or the bottom.
•
Tightening the hexagonal axis at the top raises the setting plate, and loosening the axis lowers it.
•
Tightening the M8 bolt at the bottom lowers the setting plate, and loosening the bolt raises it.
After you finish making adjustments, tighten the M6 bolt that you loosened.
k
Make sure that all of the bolts that you loosened in steps 5 to 10 are securely tightened
Warning
Tighten all bolts and screws firmly. Otherwise, the product may fall and cause personal injury or
property damage.
l
Press the [Esc] button on the remote control or the control panel to remove the guidance
screen
Fine-tuning the Focus
a
Turn on the projector, and then press the [Menu] button
Using the Remote Control Using the Control Panel
